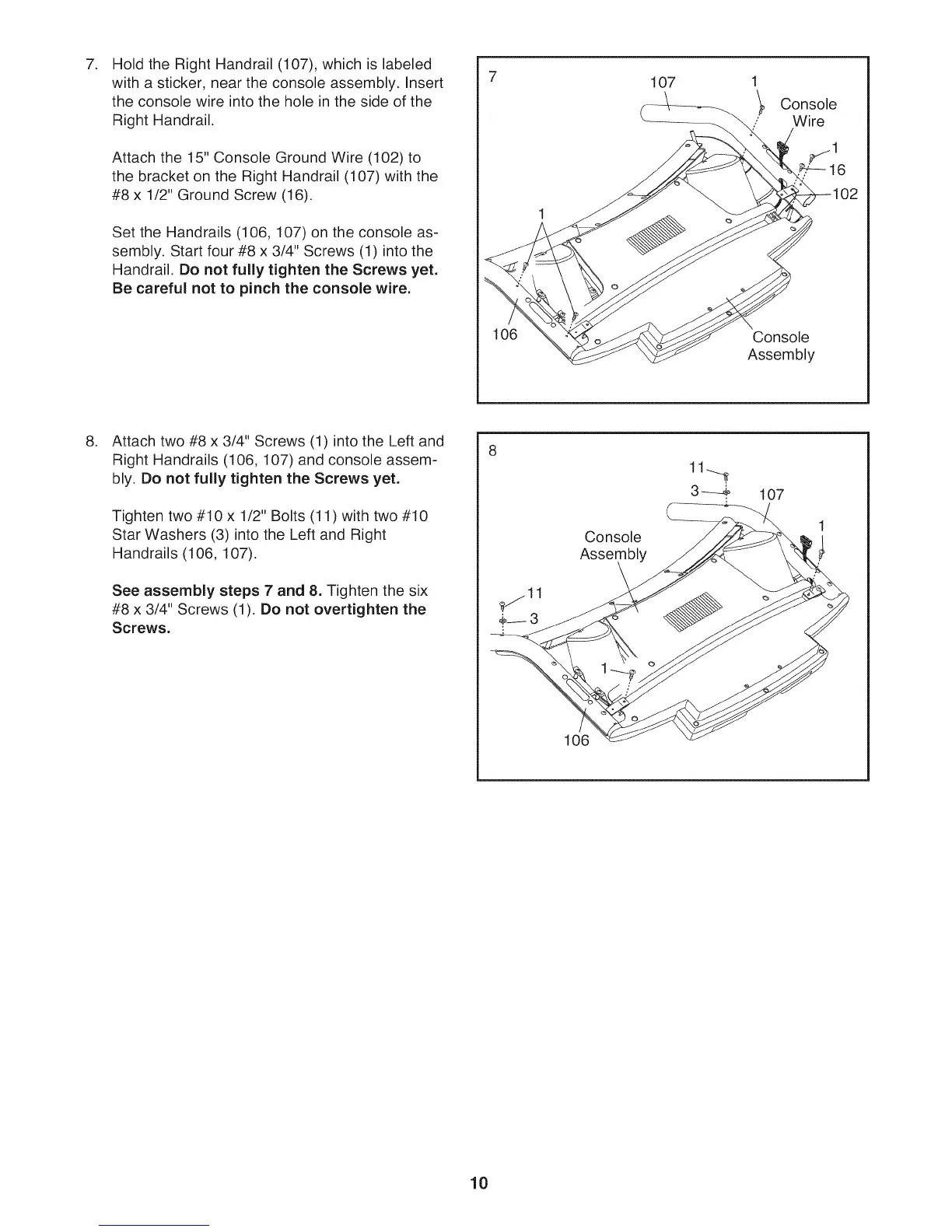

Hold the Right Handrail (107), which is labeled
with a sticker, near the console assembly. Insert
the console wire into the hole in the side of the
Right Handrail.
Attach the 15" Console Ground Wire (102) to
the bracket on the Right Handrail (107) with the
#8 x 1/2" Ground Screw (16).
Set the Handrails (106, 107) on the console as-
sembly. Start four #8 x 3/4" Screws (1) into the
Handrail, Do not fully tighten the Screws yet.
Be careful not to pinch the console wire.
7
107
1
Console
Wire
Console
Assembly
.
Attach two #8 x 3/4" Screws (1) into the Left and
Right Handrails (106, 107) and console assem-
bly. Do not fully tighten the Screws yet.
Tighten two #10 x 1/2" Bolts (11) with two #10
Star Washers (3) into the Left and Right
Handrails (106, 107).
See assembly steps 7 and 8. Tighten the six
#8 x 3/4" Screws (1). Do not overtighten the
Screws.
Console
Assembl
106
107
10
To Next Page
