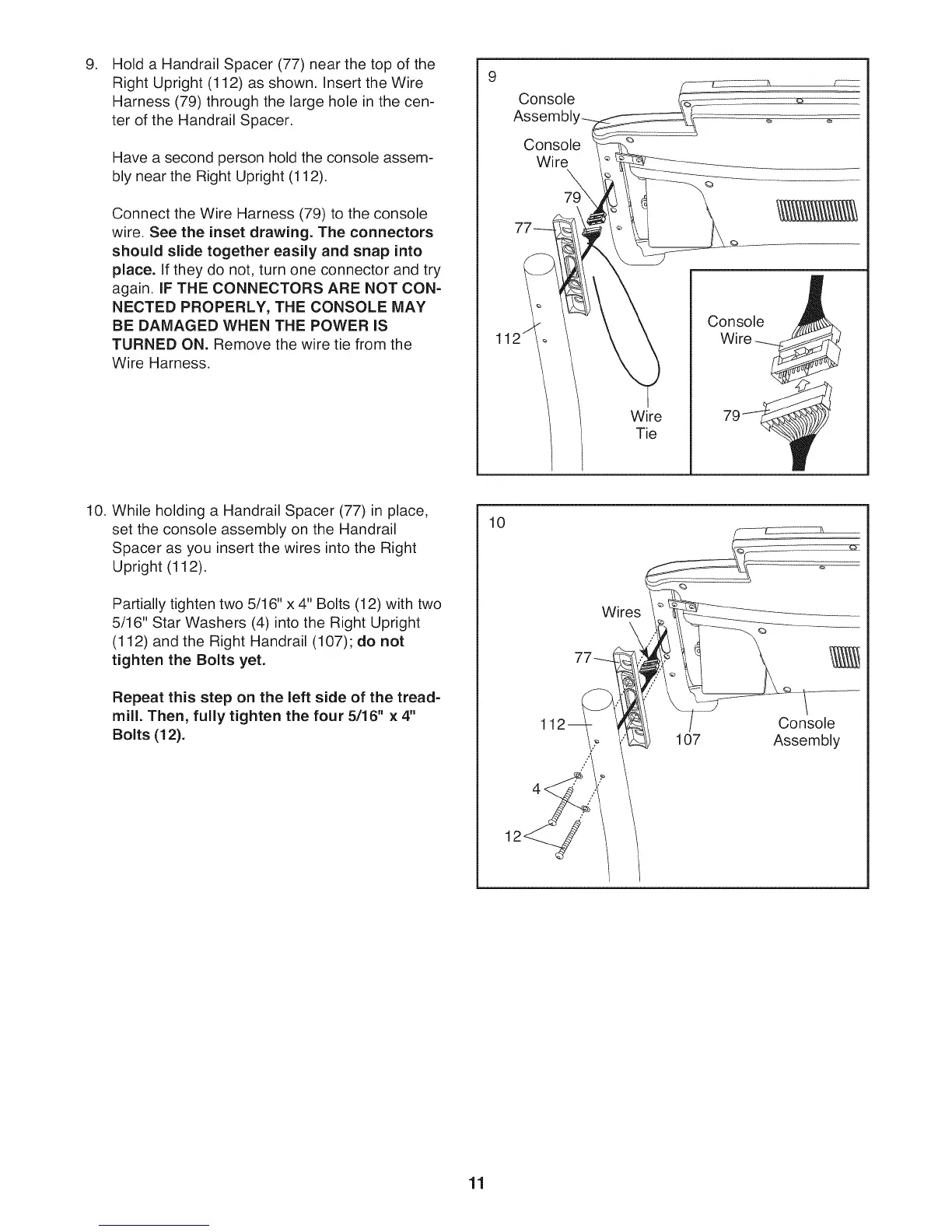

Hold a Handrail Spacer (77) near the top of the
Right Upright (112) as shown, Insert the Wire
Harness (79) through the large hole in the cen-
ter of the Handrail Spacer.
Have a second person hold the console assem-
bly near the Right Upright (112).
Connect the Wire Harness (79) to the console
wire, See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Remove the wire tie from the
Wire Harness.
9
Console
Assembl'
Console
Wire
112
Wire
Tie
10. While holding a Handrail Spacer (77) in place,
set the console assembly on the Handrail
Spacer as you insert the wires into the Right
Upright (112).
Partially tighten two 5/16" x 4" Bolts (12) with two
5/16" Star Washers (4) into the Right Upright
(112) and the Right Handrail (107); do not
tighten the Bolts yet.
Repeat this step on the left side of the tread-
mill. Then, fully tighten the four 5/16" x 4"
Bolts (12).
10
Wires
12_/1112
107
Console
Assembly
11
