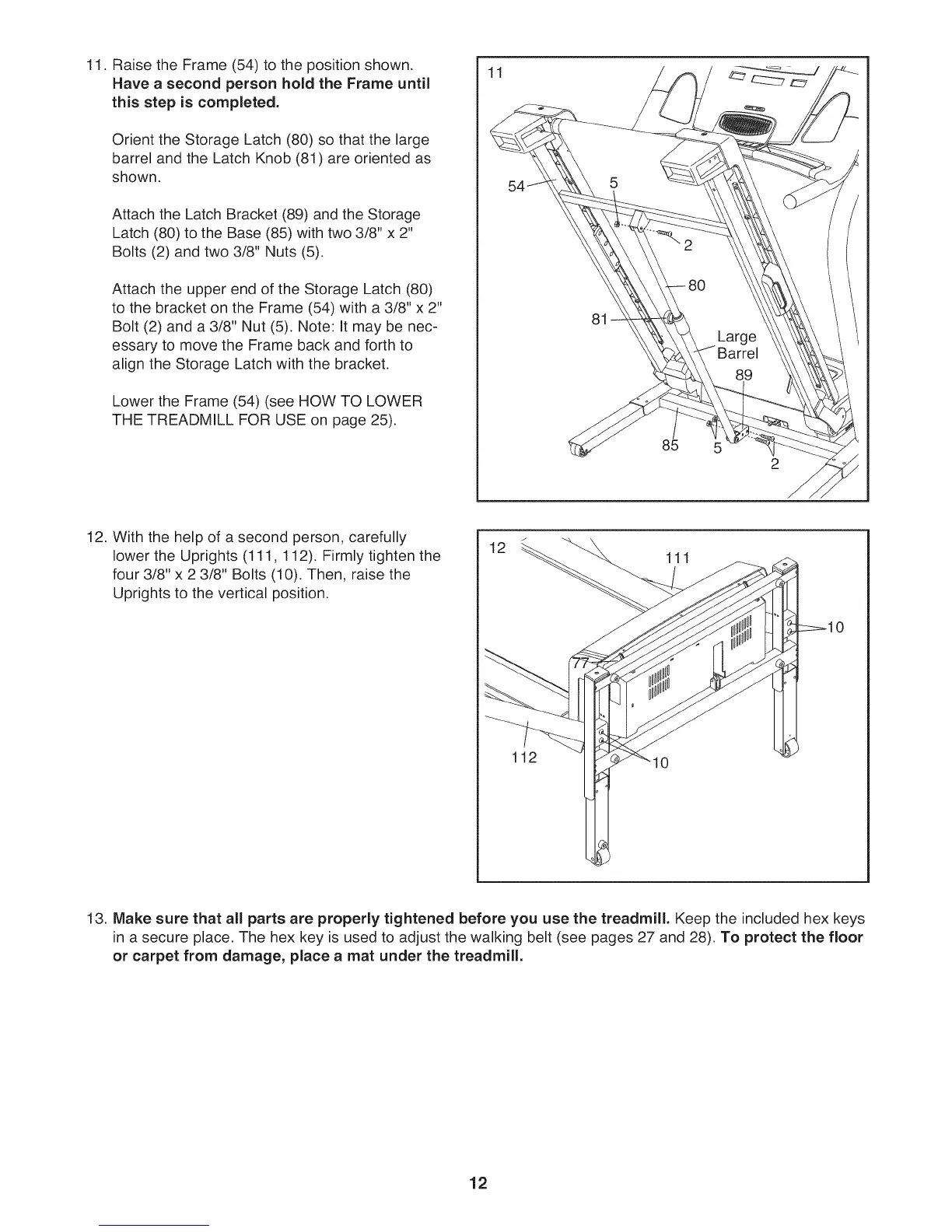

11. Raise the Frame (54) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (80) so that the large
barrel and the Latch Knob (81) are oriented as
shown.
Attach the Latch Bracket (89) and the Storage
Latch (80) to the Base (85) with two 3/8" x 2"
Bolts (2) and two 3/8" Nuts (5).
Attach the upper end of the Storage Latch (80)
to the bracket on the Frame (54) with a 3/8" x 2"
Bolt (2) and a 3/8" Nut (5). Note: It may be nec-
essary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (54) (see HOW TO LOWER
THE TREADMILL FOR USE on page 25).
11
81
85
5
12. With the help of a second person, carefully
lower the Uprights (111, 112). Firmly tighten the
four 3/8" x 2 3/8" Bolts (10). Then, raise the
Uprights to the vertical position.
12
112
111
13. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place. The hex key is used to adjust the walking belt (see pages 27 and 28). To protect the floor
or carpet from damage, place a mat under the treadmill.
12
