Overview
A 2-6
E 2000 Nordson Corporation
All rights reserved
41-3000
Issued 11/00
A2EN-02-[3-OVER]–2
See Figure A 2-6. The MicroSet control system determines how the
melter functions and the temperatures at which the heated zones
operate. The melter will have the MultiScan version of the MicroSet
control system.
NOTE: The Installation section provides detailed procedures for
customizing the control system, and the Operation section provides
detailed procedures for operating and monitoring the control panel.
4131146A

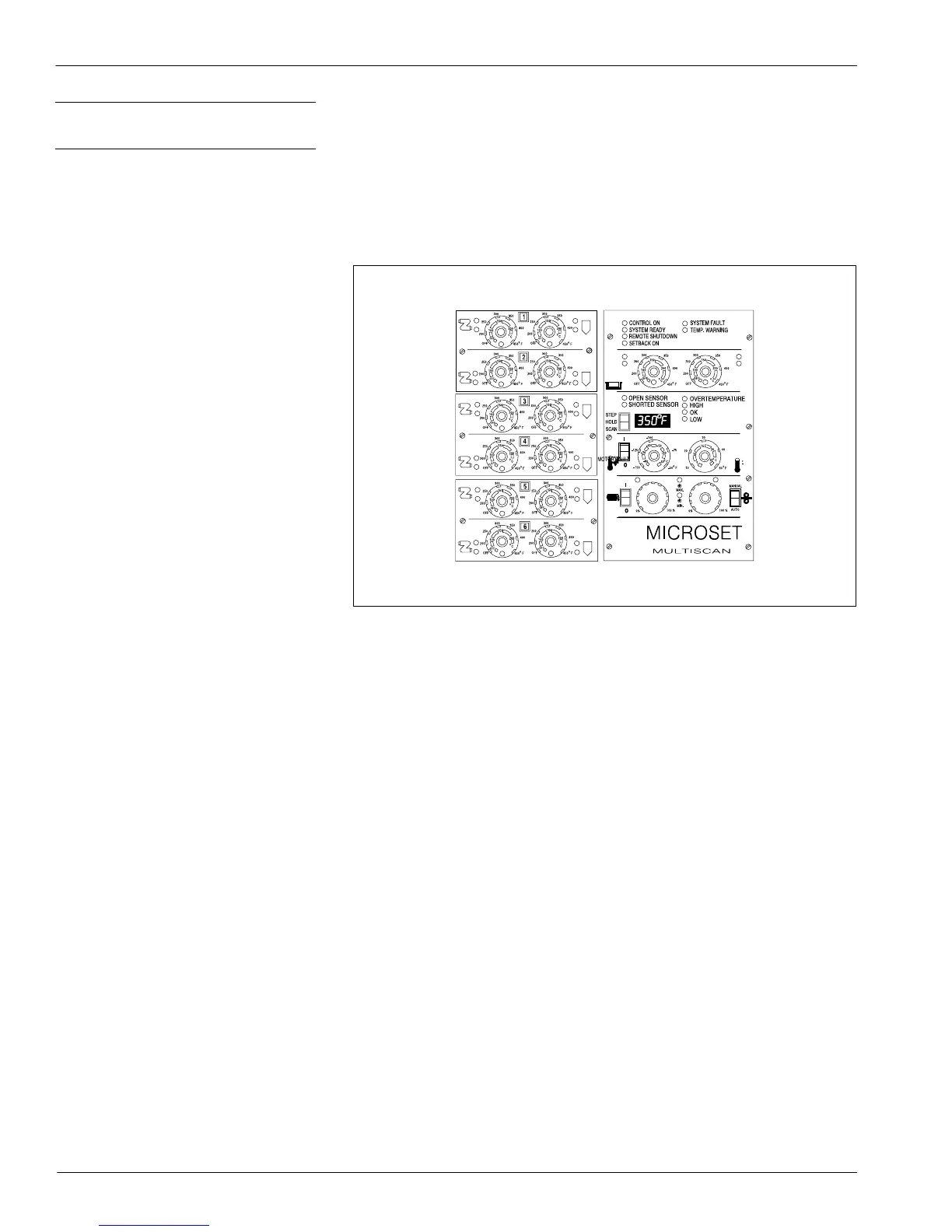

Fig. A 2-6 MultiScan Control Panel
4. Overview of the Control
System
