Nordson 3500V Series Customer Product Manual

Hydraulics
B
1-19
1
2
3
{
r'-
g
4 t03t98

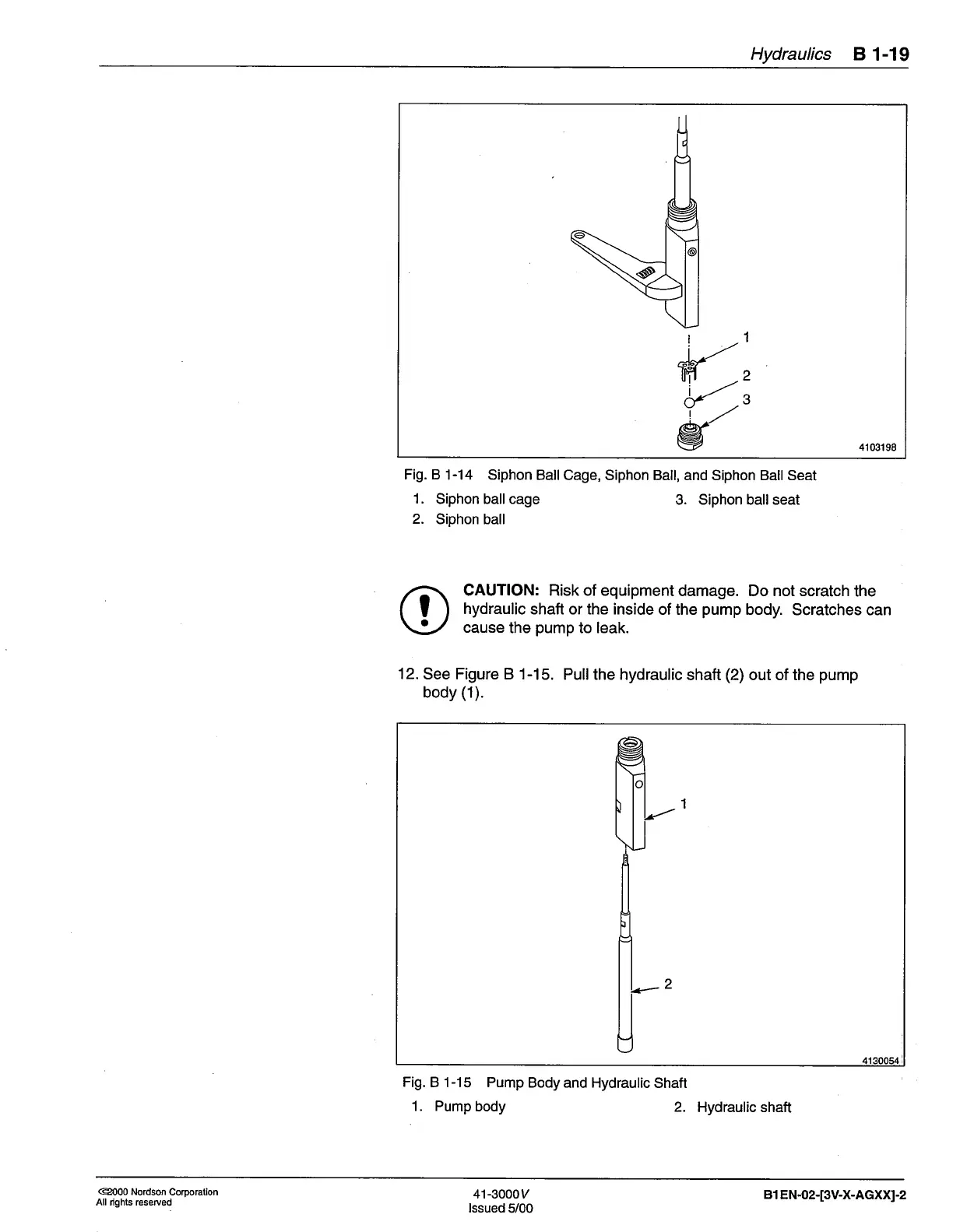

Fig. B
1-14 Siphon
BallCage,
Siphon Ball, and Siphon BallSeat
1.
Siphon ball cage
3. Siphon ball seat
2.
Siphon ball
CAUTION: Risk of equipment
damage. Do not scratch
the
hydraulic
shaft or the inside
of the
pump
body.
Scratches can
cause
the
pump
to leak.
'12.
See Figure B 1-15.
Pull the hydraulic
shaft
(2)
out of the
pump
body
(1).
Fig.
B 1-15 Pump
Body
and
Hydraulic
Shaft
1. Pump
body
2.
Hydraulic shaft
?
a
1
2
dlennv
@000 Nordson
Corporation
All rights reserved
41-3000y
lssued
5/00
81
EN-02-[3V-X-AGXXI-2
