Nordson 3500V Series Customer Product Manual

B
1-24
Hydraulics
System Restoration
1. Replace
the
pump
cover.
2.
Turn the
unit on and allow it to reach
operating temperature.
3. See Figure B 1-17. Place
a container under
the manifold drain valve
and open
the
valve.
Filter Type
Procedure
tor
Opening
Drain Valve
Standard
Turn
the drain
valve
counterclockwise
Reverse-flush
With
the
manifold
filter in the RUN
position,
turn the
right-side drain valve
counterclockwise.
1
2
3

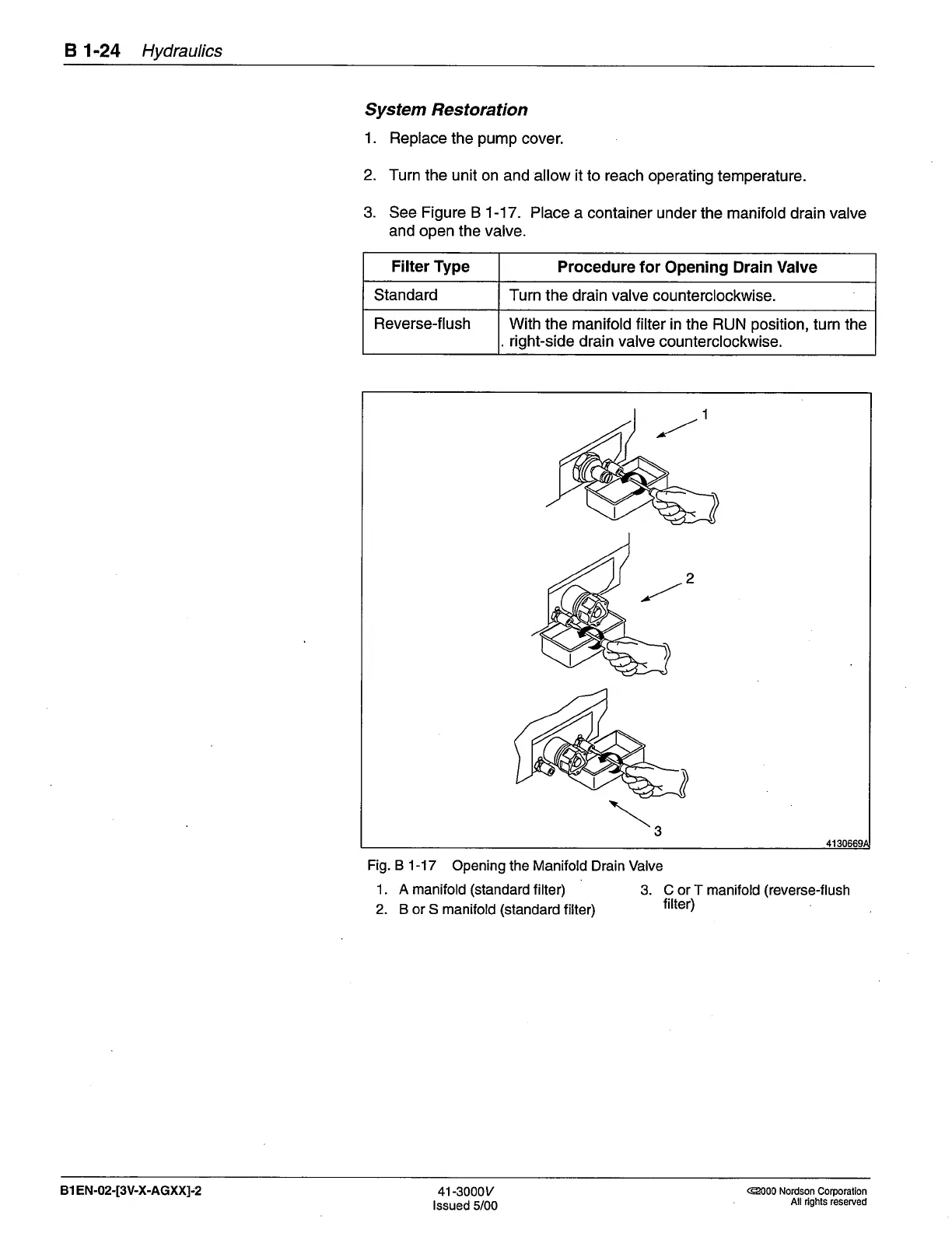

Fig. B 1-17
Opening
the
Manifold
Drain Valve
1. A
manifold
(standard
filter)
3. C or T
manifold
(reverse-flush
2. B or s manifold
(standard
filter)
filter)
Bl EN-02-[3V-X-AGXXI-2
41
-3000v
lssued 5/00
@000 Nordson
Corporalion
All rights reserved
