Nordson ASYMTEK User Manual

Nordson Asymtek
Mini and micro dispensing solutions for fluids and pastes
page 13 off 20
Alternative has a plate with 2 holes
.
4.1.1.1 Stator
The Stator (10) is made of a soft elastomer and is the counter piece to the metal rotor (3).
(Depending on the model, the rotor (3) may also be a polymer). The stator has a fine M10 x
0.5 thread. Turn in the Stator (10) to into the pump housing putting the rounded surface side
towards the motor.
This allows the fluid to better flow in.
The stator (10) must gently slide over the Rotor (3) by means of a turning movement. Do not
use high force! Do not just push the rotor into the stator! In case the needed force is too high,
you may use vaseline oil or glycol.

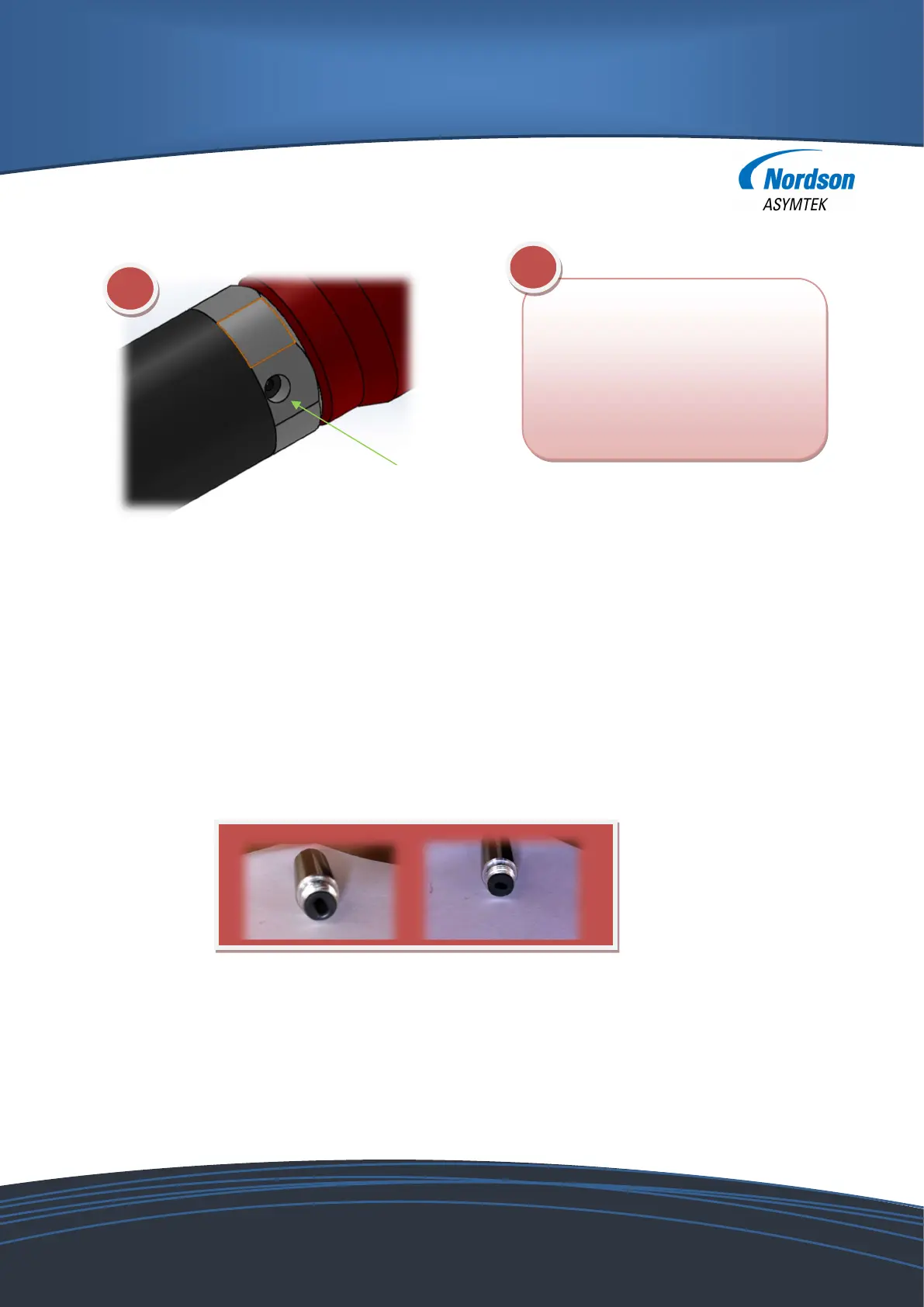

sample picture
rounded elastomer inlet flat elastomer o
utlet
K
18 O
-
Ring
bleed bore
Now close the bleed bore by means
of the M3 x 5 (22)
Do not forget the seal (18) or...
Use the bleed plate (41) with 2 x M3
x 8 screws (43) and the appropriate
seal (42)
K

Nordson ASYMTEK Specifications

General

Fluid Types	Adhesives, underfills
Dispensing Technologies	Jet, needle
Work Area	Varies by model
Vision System	High-resolution cameras for alignment and inspection
Applications	Underfill, encapsulation, solder paste dispensing, adhesive dispensing
Material Compatibility	Compatible with a wide range of materials, including those with high viscosity or abrasive properties
