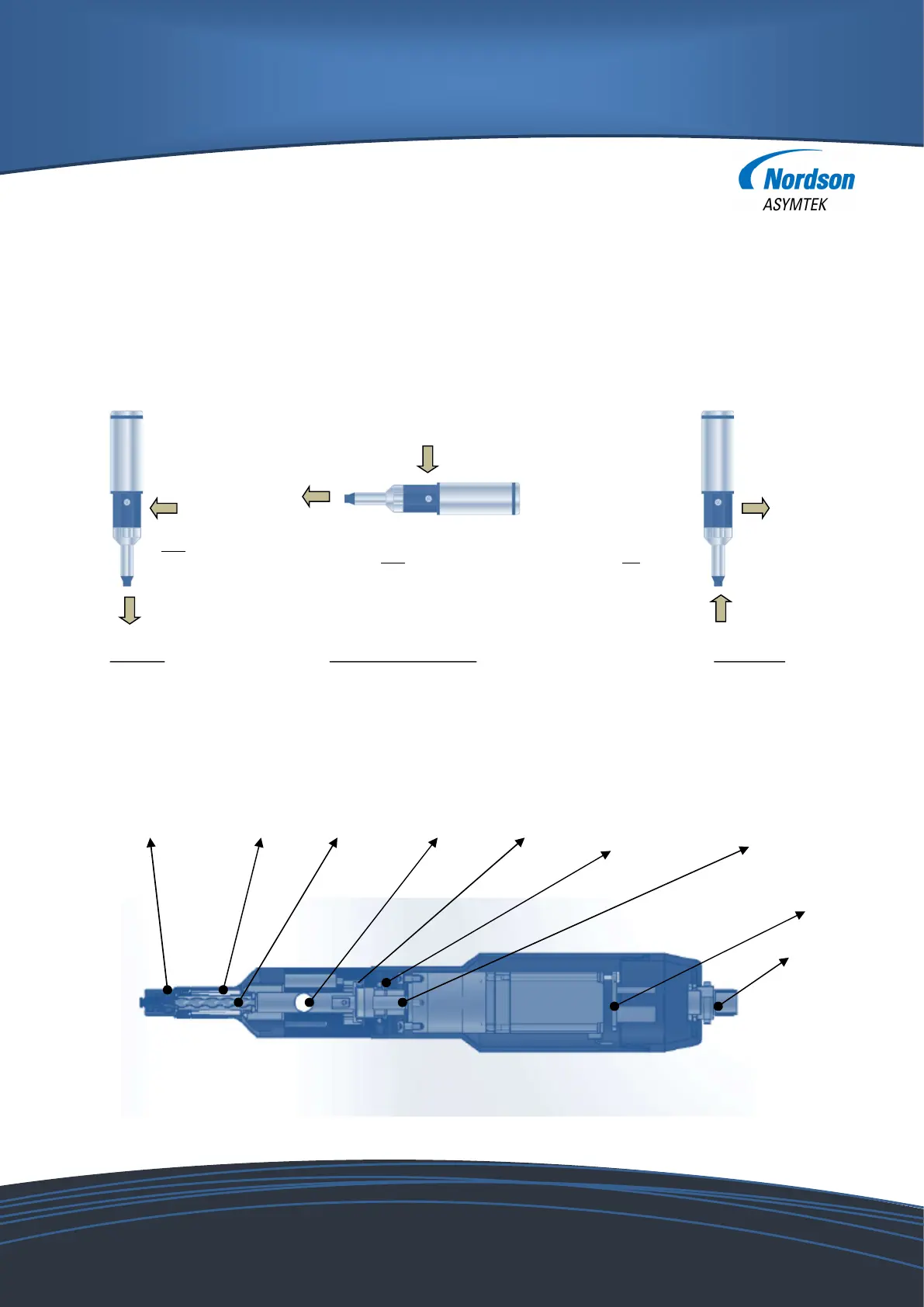

2. Technical description, function and assembly
Basically, all ASYMTEK pumps can be used for dosing or transferring (pumping) or emptying
applications:
Dosing Pumping (Transfer) Emptying
ASYMTEK pumps in general can be used in two directions: Clockwise or Counter Clockwise.
Furthermore, the position/angle of the pump almost does not have any effect on the pumping
or dosing result. Only in some cases, the suction performance can be influenced by it.
Suction
Pressure*
Suction
Suction
Druckseite*
Pressure
Stator
Pressure stud
Luer
Rotor Flexi shaft Seal
Motor
Drive shaft
CCW
CCW
CW
sealed ball bearing
Driver Board
M12 connector
