Nordson ColorMax Operator Card

4
Color Change (contd)
Tasks
Procedure Operator A
See Figure 2
Operator B
See Figure 3
4 Touch the GUN PURGE Start button. The system automatically performs the following tasks:
NOTE: Perform procedure 5 while the system is performing these tasks.
NOTE: The GUN PURGE Stop button interrupts the gun purge cycle.
S Lance assembly lowers onto the purge manifold.
S Purge manifold sends pulses of air through the lances, pumps, feed hoses, and spray guns.
S Lance assembly raises and the sieve restarts.
When the gun purge cycle is complete, the COLOR CHANGE CYCLE DONE indicator flashes.
Continued...
1400127A
1
2
9
6
4
5
3
7
8

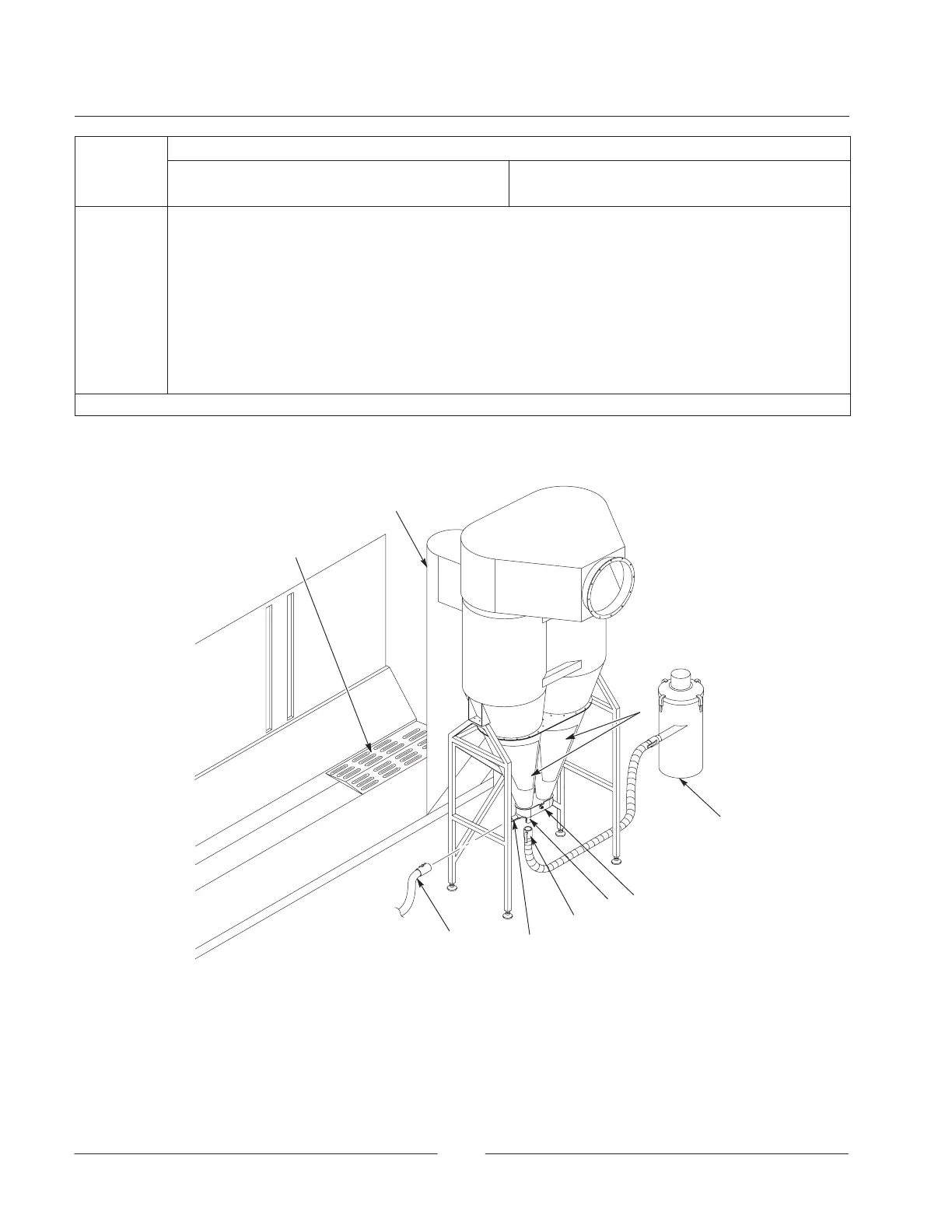

Figure 2 Operator A Color Change Tasks
1. AeroDeck
2. Vertical inlet duct
3. Cyclone access doors
4. Scrap receiver
5. Transfer pan
6. Scrap port
7. Scrap conveyor line
8. Reclaim port
9. Reclaim conveyor line
