Nordson ColorMax - Procedure 4: Gun Purge and Lance Movement - Operator B; Initiate Gun Purge; Blow Off Lance Assembly During Purge; Lance Assembly Raises Upon Purge Completion

6
Color Change (contd)
1400092A
1
2
3
4
5
8
7
6
9

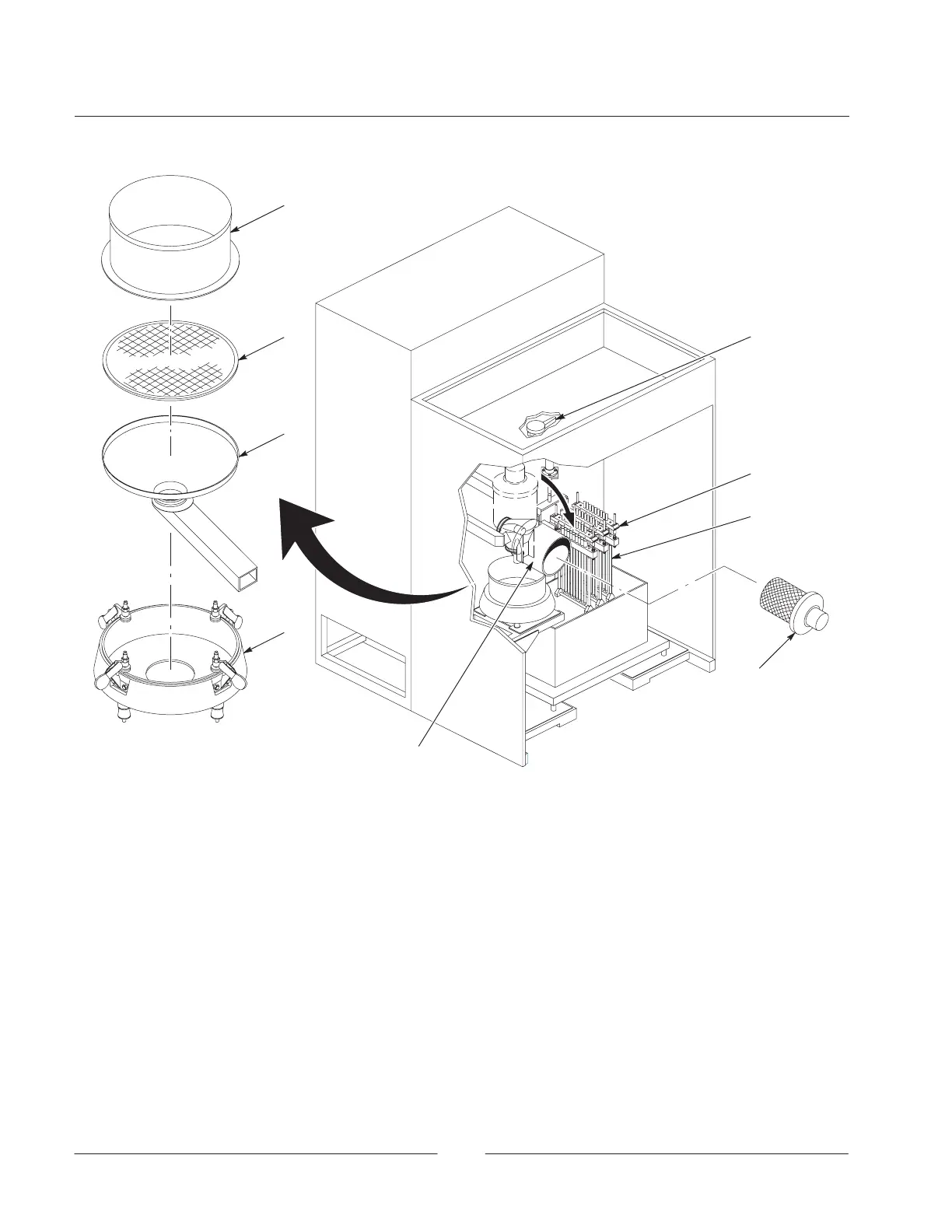

Figure 3 Operator B Color Change Tasks
1. Sieve deck
2. Sieve screen
3. Sieve underpan
4. Sieve
5. Reclaim receiver
6. Reclaim filter assembly
7. Lance assembly
8. Feed hose manifold
9. Vacuum diverter handle
