Key Components

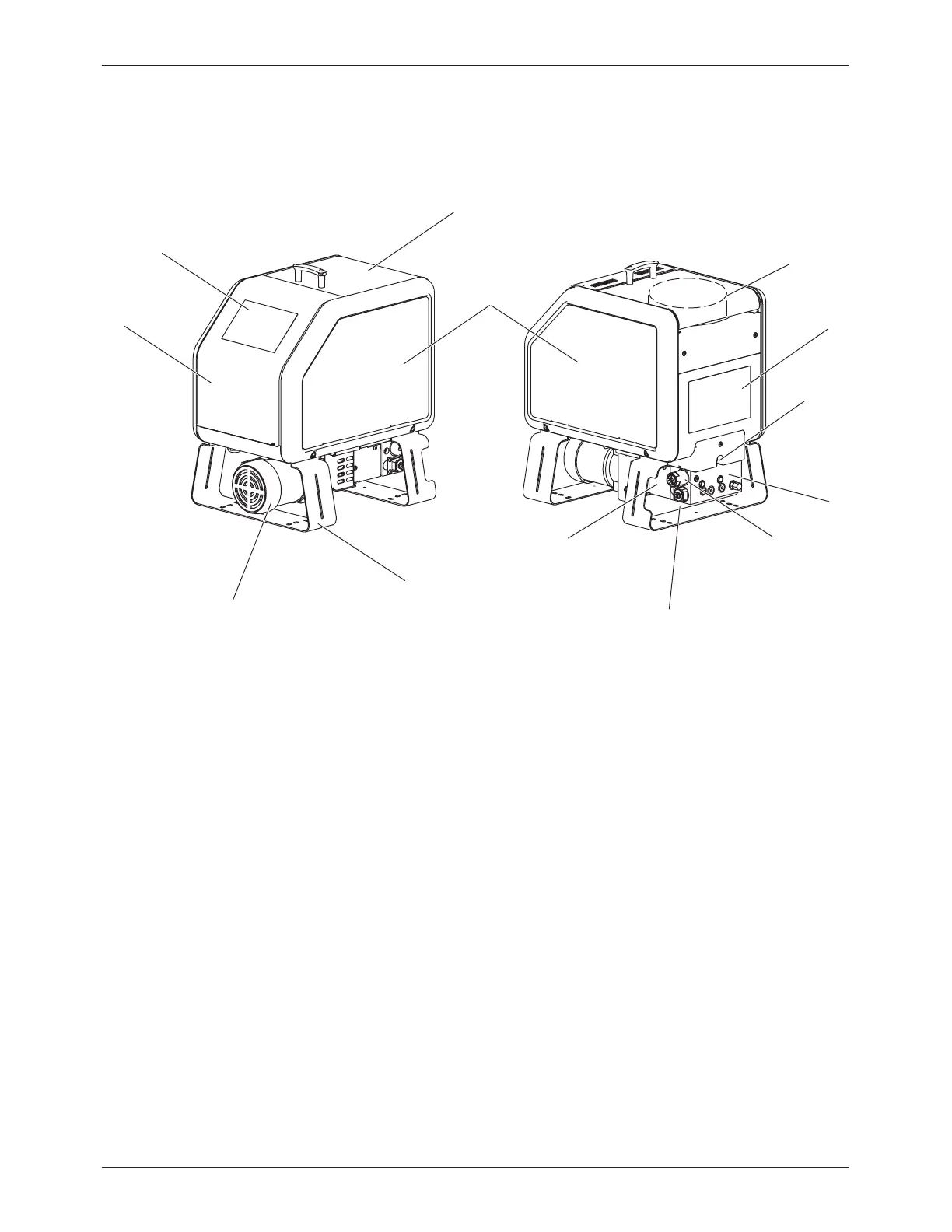

Figure 2-3 provides the name and the location of key melter components.
3
5
12
13
1
2
4
11
6
7
9
10
8
Figure 2-3 Key components
1. Electrical enclosure door
2. Control panel (see Figure 2-4)
3. Tank lid
4. Side panels
5. Tank
6. Hose/gun receptacles
7. Tank isolation valve
(D10/D16 only)
8. Manifold
9. Pressure control valve
10. Filter
11. Pump
12. Mounting bracket
13. Motor
