5 Installation of the Combi Boiler
5.1 Mounting the Combi Boiler to the
wall
• Protect your hands with gloves and take
caution to not inflict injury.
• Be careful not to hit electrical wiring, gas, or
water piping while drilling holes.
CAUTION
• The weight of the appliance will be applied
to the wall. If the strength of the wall is not
sufficient, reinforcement must be done to
prevent the transfer of vibration.
• Install the appliance on a vertical wall and
ensure that it is level.
NOTICE
Do not drop or apply unnecessary force to the
appliance when installing. Internal parts may be
damaged and may become highly dangerous.
WARNING

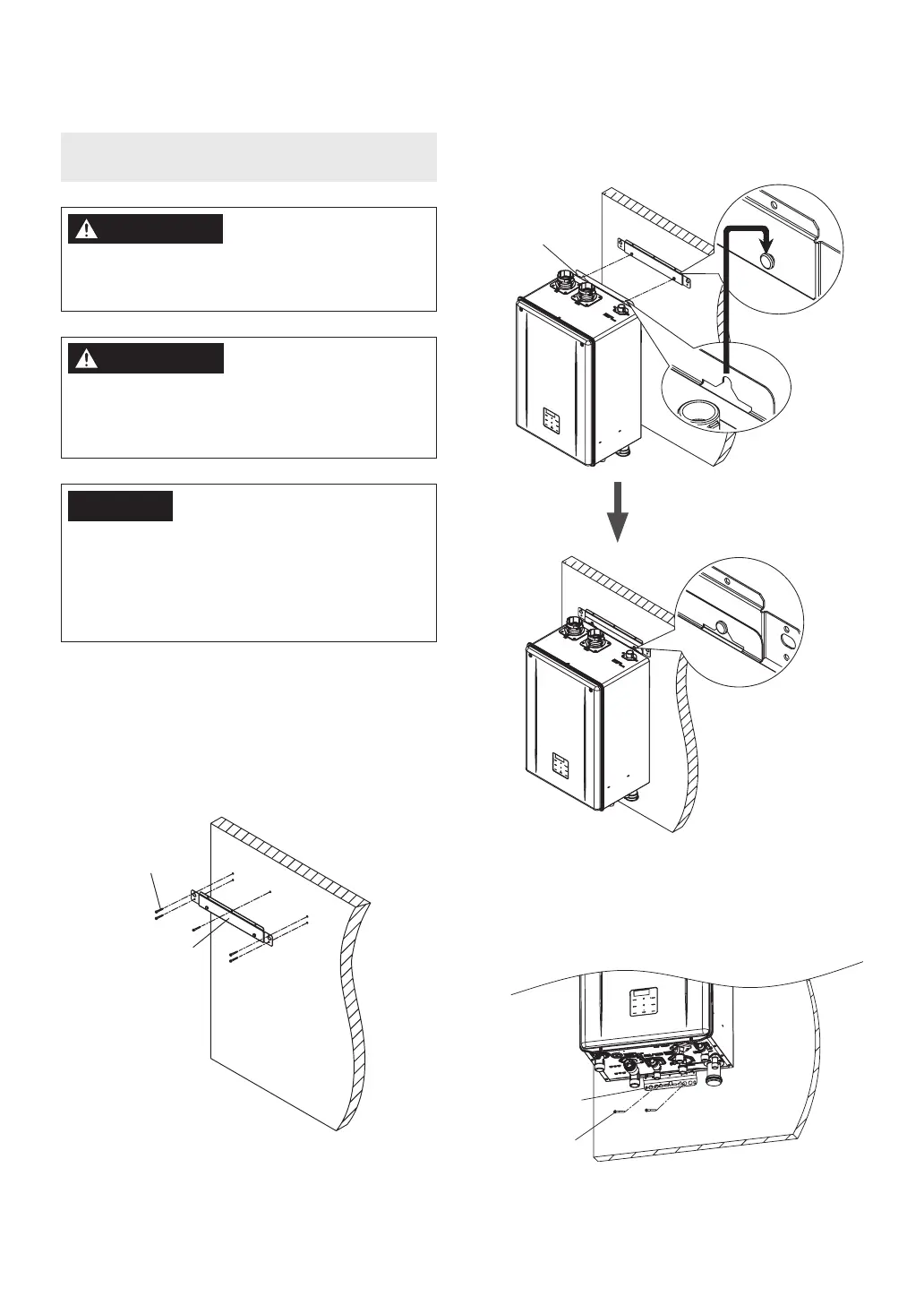

2. Hang the Combi Boiler on the Wall Mounting
Bracket.
3. Affix the Mounting Bracket (Lower) to the wall
by 2 screws.
1. Ensure that the Wall Mounting Bracket is
leveled.
Drill holes for the Wall Mounting Bracket and
affix the Wall Mounting Bracket securely to the
wall by 5 screws.
Finally, make sure the bracket can support the
weight of the Combi Boiler.
Mounting Bracket
(Upper)
Hang
Anchoring Scr
ew
Wall Mounting
Bracket
Mounting Bracket
(Upper)
Hang
Anchoring Screw
Wall Mounting
Bracket
Mounting Bracket
(Upper)
Hang
Anchoring Screw
Wall Mounting
Bracket
ew
acket
(Lower)
Installation of the Combi Boiler
To Next Page
