300 mm
300 mm
+/- 2 m depending on road width
1 m1 m
Min Distance Apart - 2 m (Road width = 2 m)
- 3 m (Road width = 4 m)
Max Distance Apart – No Limit

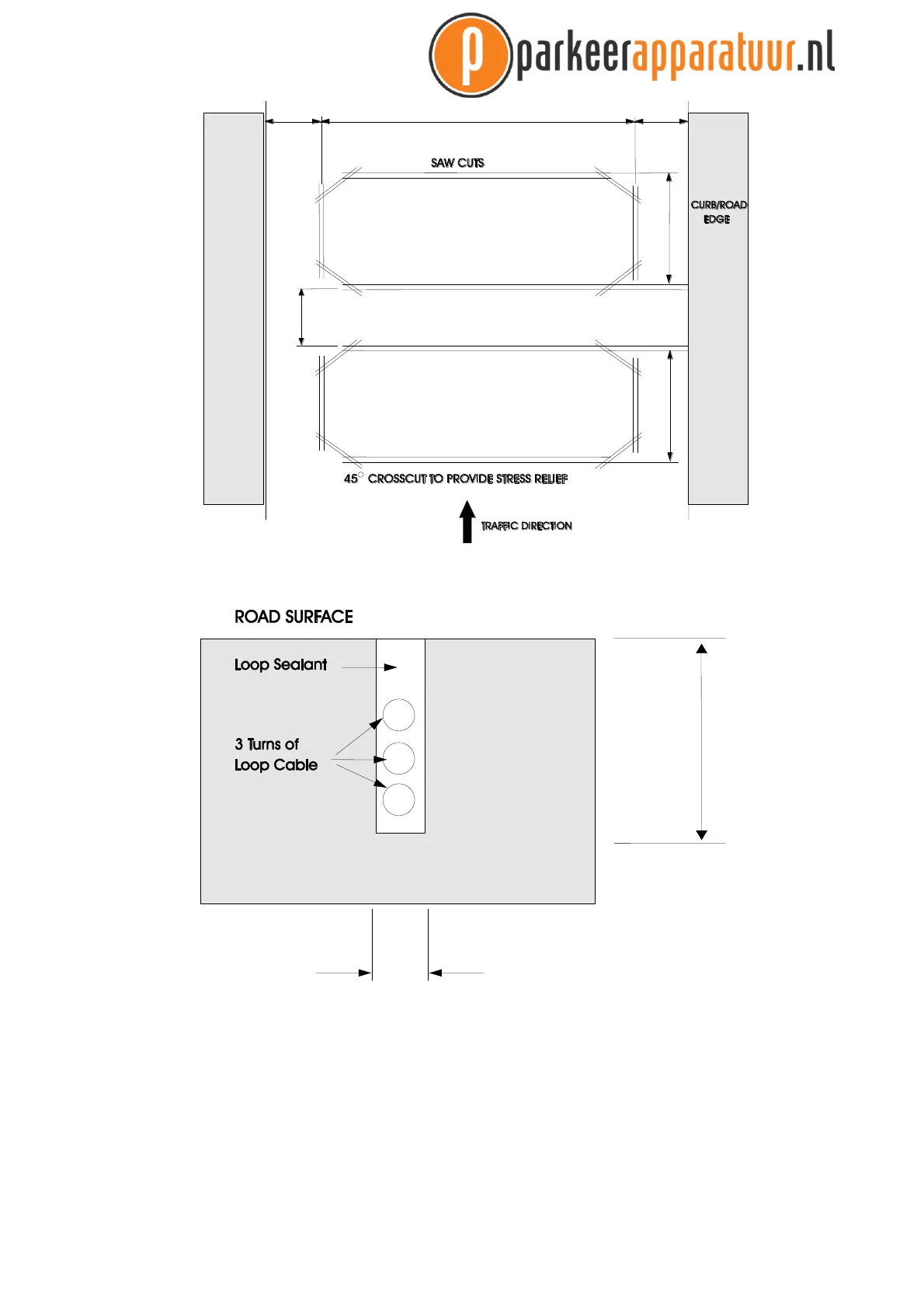

Figure 6. Adjacent loops connected to dierent detector modules
4 mm
30 – 50 mm
Figure 7. Slot details
