Nortech PD27 Series - PD272 Enhanced Detector DIN Rail - Order Number 307 FT0207; PD274 Enhanced Detector DIN Rail - Order Number 307 FT0208

307UM0200_01 May 2016 PD27x User Manual Page 20 of 30

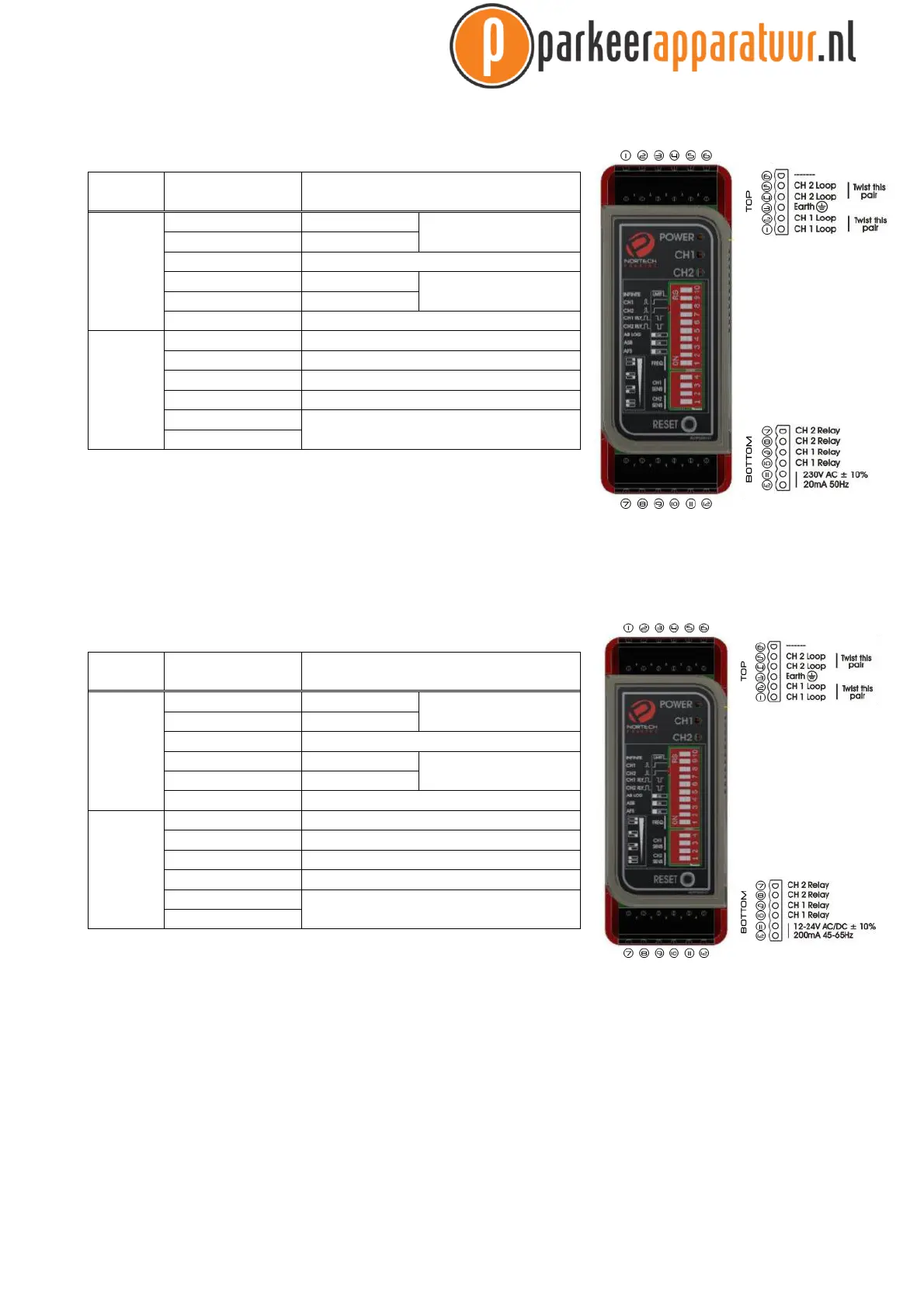

6.5 PD272 Enhanced Detector DIN Rail - Order number 307FT0207
DIN Rail connector wiring for PD272 DETECTOR - Order number 307FT0207
6 PIN Connector
Pin No.
FUNCTION
Top
1 Channel 1 Loop
Twist this pair
2 Channel 1 Loop
3 Earth
4 Channel 2 Loop
Twist this pair
5 Channel 2 Loop
6 Not Connected
Boom
7 Channel 2 Relay
8 Channel 2 Relay
9 Channel 1 Relay
10 Channel 1 Relay
11 Power supply
230V AC ± 10% 50Hz
12
6.6 PD274 Enhanced Detector DIN Rail - Order number 307FT0208
DIN Rail connector wiring for PD274 DETECTOR - Order number 307FT0208
6 PIN Connector
Pin No.
FUNCTION
Top
1 Channel 1 Loop
Twist this pair
2 Channel 1 Loop
3 Earth
4 Channel 2 Loop
Twist this pair
5 Channel 2 Loop
6 Not Connected
Boom
7 Channel 2 Relay
8 Channel 2 Relay
9 Channel 1 Relay
10 Channel 1 Relay
11 Power supply
12-24V ± 10% DC/AC
12
