Nortech PD27 Series - Electrical Data; Environmental Data; Mechanical Data

307UM0200_01 May 2016 PD27x User Manual Page 6 of 30
2.2 Electrical Data
Power requirements 120V AC ± 10% (48 to 62Hz) (PD271)
230V AC ± 10% (48 to 62Hz) (PD272)
Requirement: 1.5 VA Maximum @ 230V
12-24V ± 10% DC/AC (48 to 62Hz) (PD274)
Requirement: 1 VA Maximum @ 12 V
Relay Contact Rating Relay contact rang: 2A@30VDC, 0.5A@125VAC, 0.25A@250VAC
For ambient temperatures above 60°C De-rate the relay

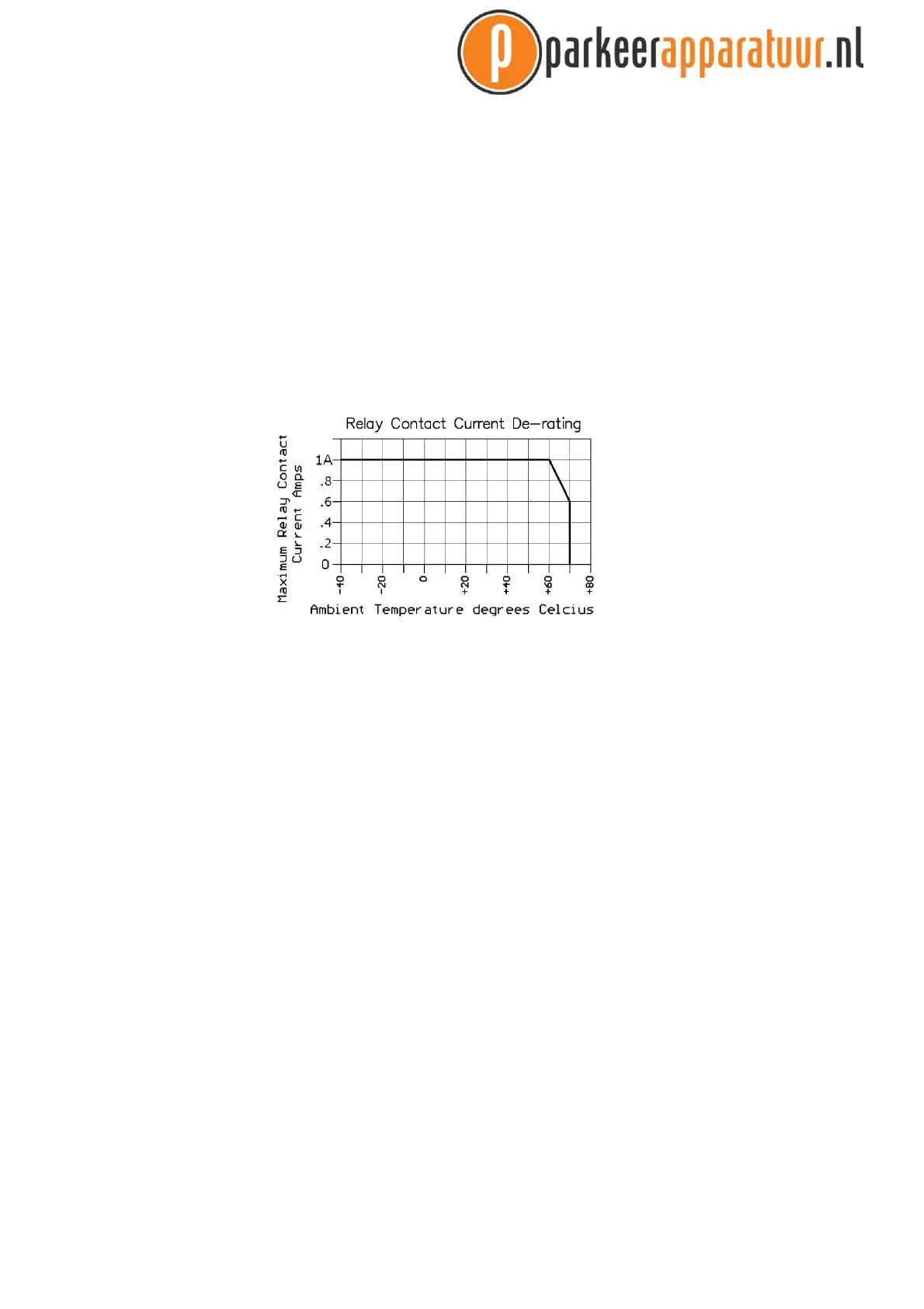

Maximum current as per graph below:
2.3 Environmental Data
Storage Temperature -40°C to +80°C
Operang Temperature -40°C to +80°
Humidity Up to 95% relative humidity without condensaon
Circuit protecon Conformal coang over the PCB and all components
IP Rang IP30 – This product MUST be installed in an enclosure
2.4 Mechanical Data
Housing Material ABS blend
Mounng Posion DIN rail mounng and Shelf
Connecons 11-pin Submagnal (JEDEC No. B11-88) OR
2x 6 way Plugs on DIN Rail Mount
