28 AP overview
NN47250-307 (324136-A Version 01.03)
Status LEDs
The AP has LEDs that provide status information of the device. Figure 3 shows the locations of the LEDs. Table 1
describes the LEDs.

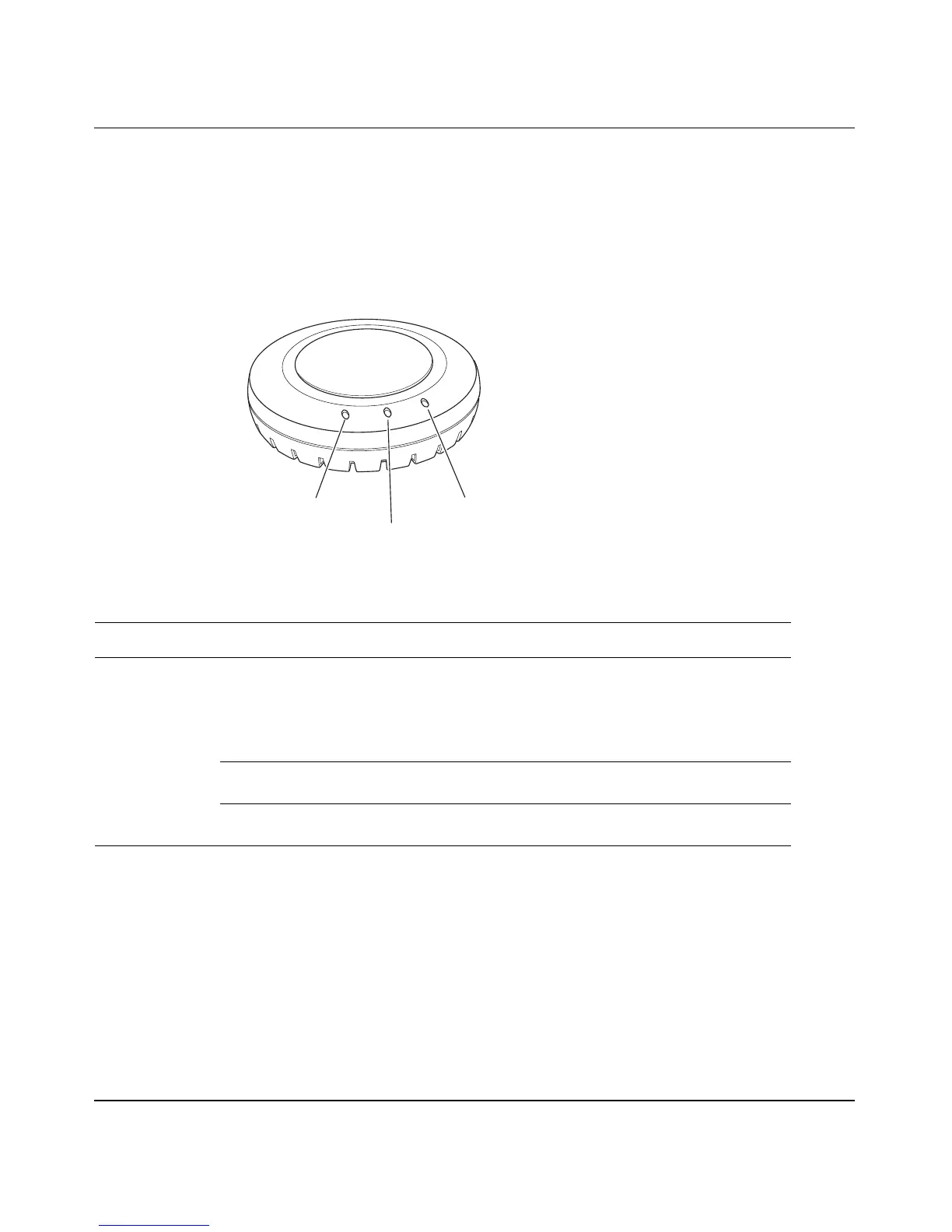

Figure 3. Health and Radio LEDs—Series 2332 access point
Table 1: Access Point LEDs—Series 2332 access point
LED Appearance Meaning
Health Solid green All the following are true:
• Management link with a WSS is operational.
• AP has booted.
• AP has received a valid configuration from a WSS.
• At least one radio is enabled or is in sentry mode.
Solid amber AP is waiting to receive boot instructions and a
configuration file from a WSS.
Alternating green and
amber
AP is booting and receiving its configuration file from a
WSS.
Radio 2 LED
Health LED
Radio 1 LED
840-9502-0010
