External Antennas 85
Nortel WLAN Series 2332 Access Point Installation Guide

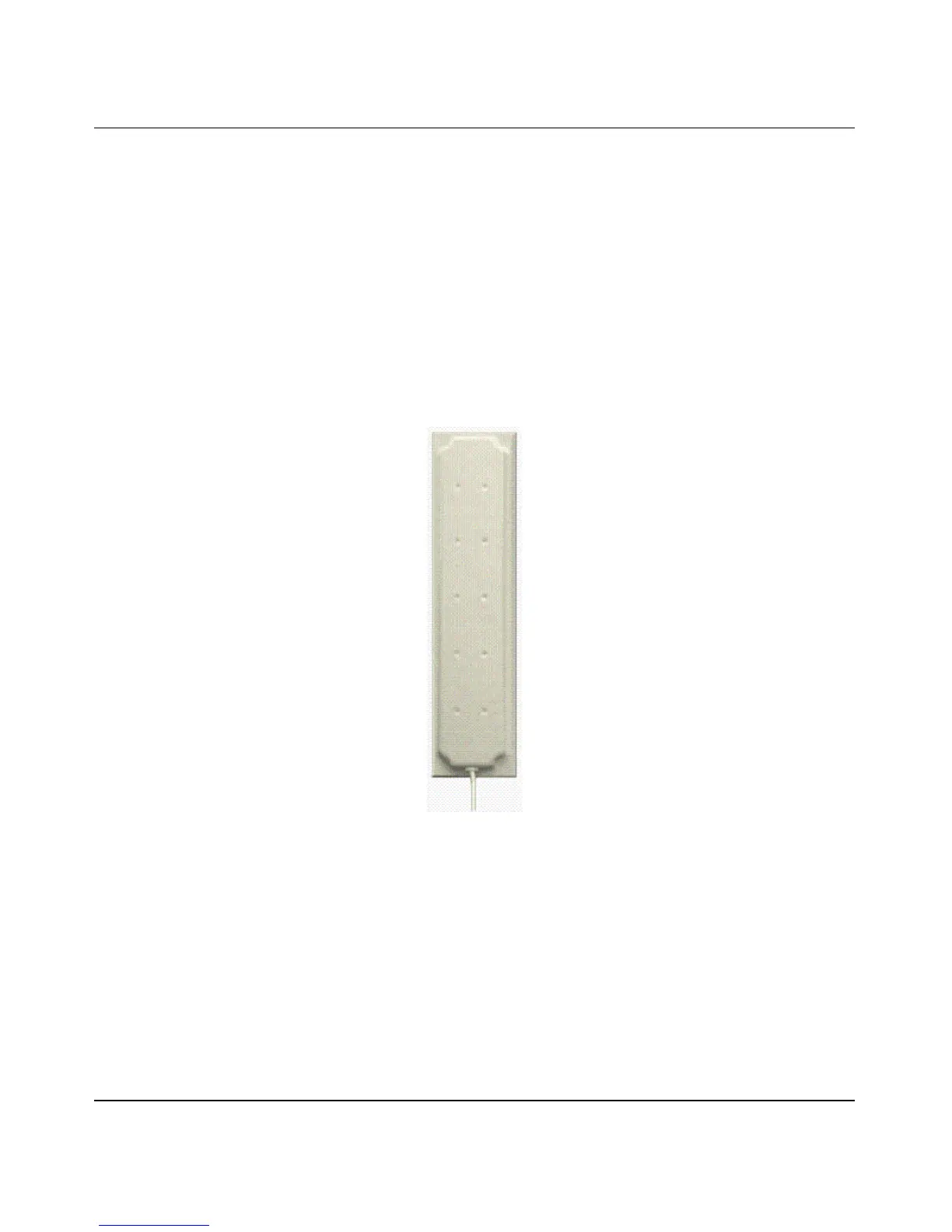

14 High-Gain Directional Panel Antenna
Nortel Order Number: DR4000091E6
Cushcraft Model SR49120DAN36RS
5.15 - 5.25 GHz, 10.0 dBi Peak Gain
5.25 - 5.35 GHz, 9.9 dBi Peak Gain
5.470 - 5.725 GHz, 9.6 dBi Peak Gain
5.725 - 5.85 GHz, 9.5 dBi Peak Gain
Wall or pole mounting options available
Symmetrical and uniform 120 degree H-plane and 15 degree E-plane patterns
Measures 1" x 2.4" x 9.5"
