9-5 Installation: Sonar transducer
Either:
• Fit the transom mount sonar transducer
supplied, following the instructions in the
Transom Mount Transducer Installation
Manual supplied with the 457/467.
• For enhanced performance, fit an optional
through hull dual frequency sonar transducer
and through hull speed/temperature
transducer. Contact the nearest Northstar
dealer for more information.
Connect the transducer to the blue 457/467
connector; tighten the locking collar.
During setup
a set Sonar to
(see section 8-1).
b set up the sonar options (see section 8-2).

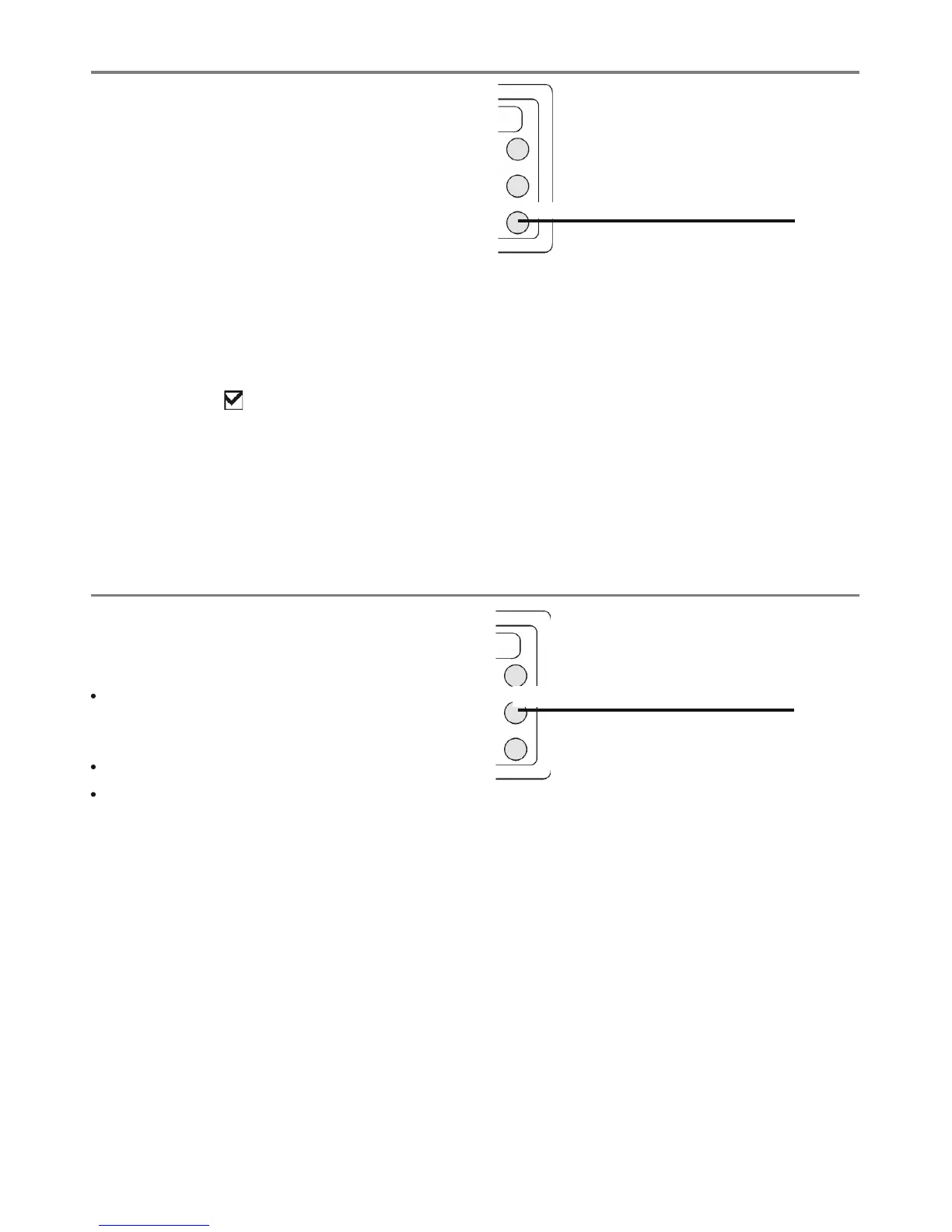

Blue
Sonar cable
9-6 Installation: Northstar petrol/gasoline sensors
Fit the optional petrol/gasoline fuel kit following
the instructions supplied with the kit.
Note:
SmartCraft engines have fuel flow sensors,
therefore Northstar fuel sensors are not
required as well.
For dual engines, fit a twin engine kit.
Wire the 457/467 for auto power (see section
9-4).
During setup set the fuel data (see section 8-3).
White
Fuel sensor cable
