Operation Description
18
Engine Oil Pressure Warning Light
When the key is turned to the ignition position this light is lit. After the engine starts the
light will go out. This means the oil lube system pressure is normal. When the engine is
idling, the light may come on because it is normal that pressure in the lubrication system is
low during idling. If the light is lit during normal engine rpm, shut down the engine
immediately and find the cause of the problem. This light is located both on the oil
pressure gauge and below the instrument panel.
Left Rocker Switch Combination
Turn Signal Switch
Position “1”: Left turn signal lights are on.
Position “0”: Power supply off.
Position “2”: Right turn signal lights are on.
Figure 2-10 Turn Signal Switch
Taillight, Instrument Light, and Work Lights Switch
Position “2”: Turns on the taillights, instrument lights, and rear work lights.
Position “1”: Turns on the taillights and instrument lights.
Position “0”: Turns off the taillights, instrument lights, and rear work lights.
An indicator light on the instrument panel lights if the taillights are on.
Figure 2-12 Taillight, Instrument Light, and Work Lights Switch
1 Turn Signal Switch
2.Taillight, Instrument Light, and Rear Work Lights Switch

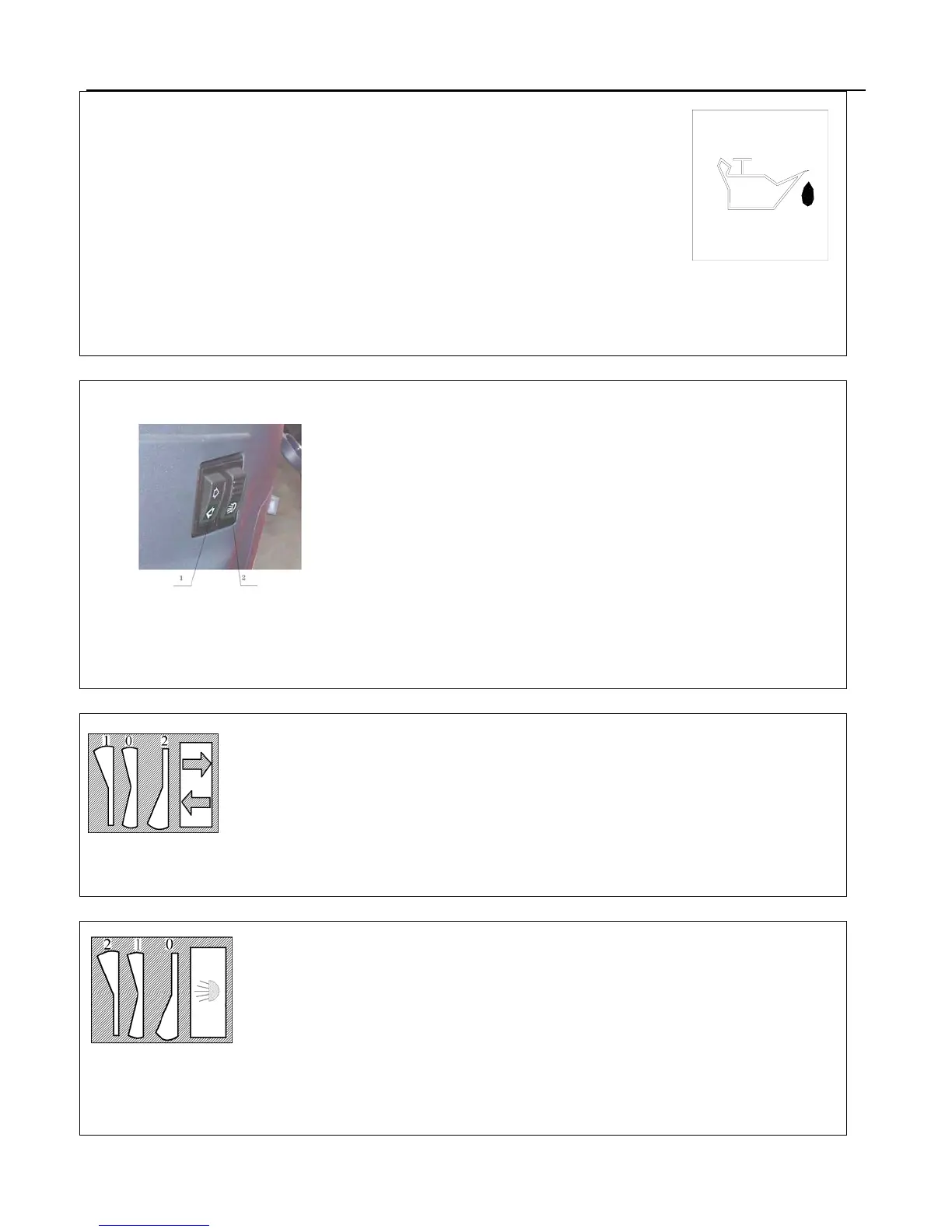

Figure 2-8 Engine Oil Pressure Warning Light
Figure 2-9 Left Rocker Switch Combination
