Nortron 21D25 - Service Parts

22

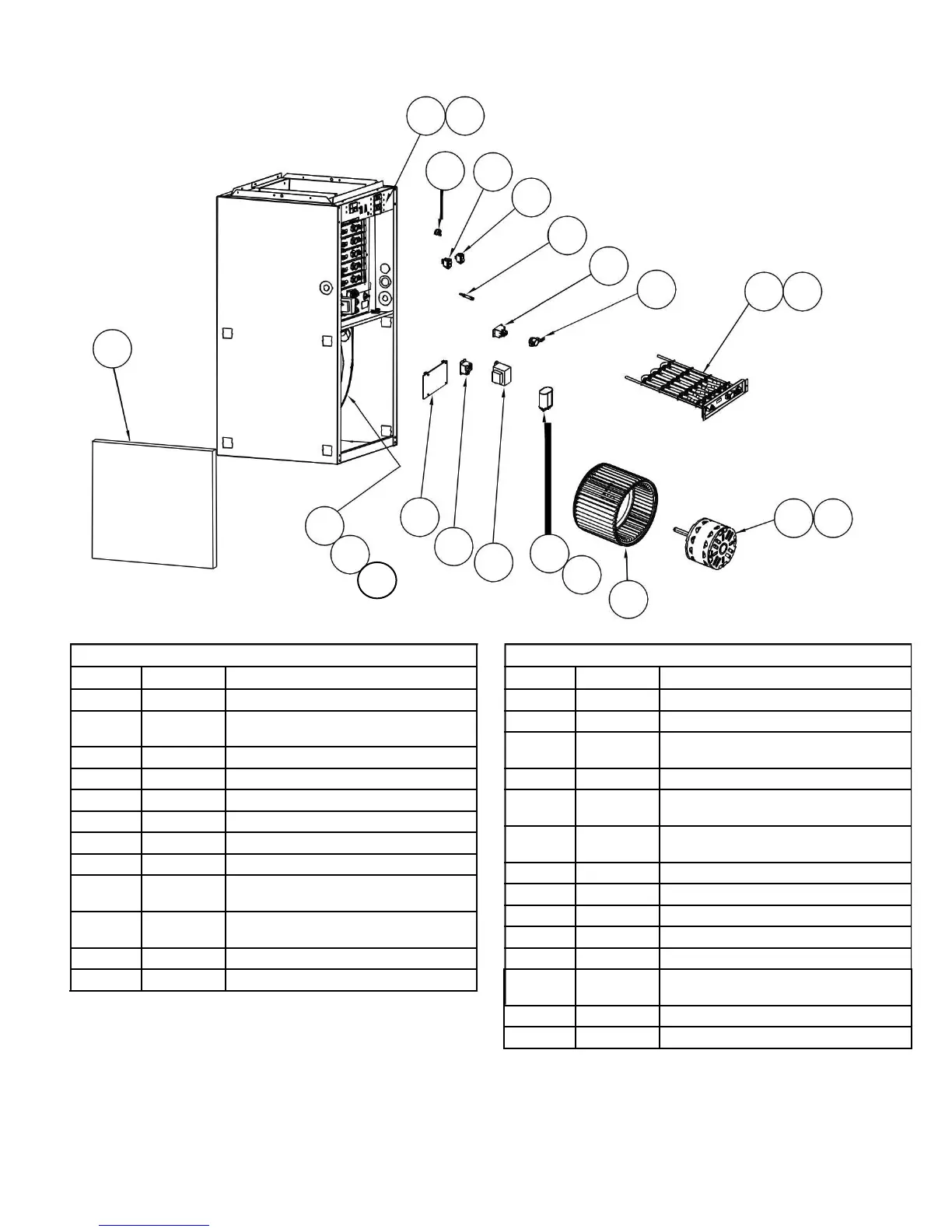

9. SERVICE PARTS
87
65
4
3
2
120
21
9
10
12
18
19
11
13
15
14
16
17
FL0024
REPLACEMENT PARTS
KEY NO.
PART NO.
DESCRIPTION
1
30270032
Automatic Limit
2
30274132
Relay (KC1, KC2, KC3, KC4, KC5
and KC6)
3
30280021
Thermostat Indicator Light
4
30030006
Heat Activation Switch
5
30030025
Speed Selection Switch
6
30280020
Manual Reset Limit
7
30274200
Breaker 50 Amps
8
30274199
Breaker 25 Amps
9
30010010
Fiberglass Filter 20” x 20” x 1”
(508 mm x 508 mm x 25 mm)
10
10941149
Service Blower Assembly for 21D10,
21D15, 21D18, 21D20, 21D23 and 21D25
11
10941221
Service Blower Assembly for 21D27
12
624663
Electronic Control
REPLACEMENT PARTS
KEY NO.
PART NO.
DESCRIPTION
13
30274131
Relay (K7)
14
30300022
Transformer 240 V
15
30270038
Motor Capacitor for 21D10, 21D15,
21D18, 21D20, 21D23 and 21D25
16
30271114
Motor Capacitor for 21D27
17
30390553
Blower Wheel 12” x 8” (305 mm x 203 mm)
for 21D27
18
10941203
Motor 1/3 HP for 21D10, 21D15, 21D18,
21D20, 21D23 and 21D25
19
10941288
Motor 3/4 HP V for 21D27
20
10940080
Element Assembly 5000 W, 240 V
21
10940081
Element Assembly 4500 W, 240 V
22
30390119
Blower Housing & Wheel DD10
*
10941364
Service wiring kit ‘’D’’
*
624664
Daughterboard (21D23, 21D25 and
21D27 only)
*
10941440
Service Door D Series
10-20KW
10941441
23-27KW
*
FK120
120 Volt Kit (optional, purchase separately)
* Not illustrated
R
EPLACEMENT PARTS AND REPAIRS
IN ORDER TO ENSURE YOUR UNIT REMAINS IN GOOD WORKING CONDITION, YOU MUST USE NORTRON GENUINE REPLACEMENT PARTS ONLY. THE NORTRON GENUINE REPLACEMENT PARTS ARE
SPECIALLY DESIGNED FOR EACH UNIT AND ARE MANUFACTURED TO COMPLY WITH ALL THE APPLICABLE CERTIFICATION STANDARDS AND MAINTAIN A HIGH STANDARD OF SAFETY
. ANY THIRD
PARTY REPLACEMENT PART USED MAY CAUSE SERIOUS DAMAGE AND DRASTICALLY REDUCE THE PERFORMANCE LEVEL OF YOUR UNIT
, WHICH WILL RESULT IN PREMATURE FAILING. ALSO,
NORTRON RECOMMENDS TO CONTACT A CERTIFIED SERVICE DEPOT FOR ALL REPLACEMENT PARTS AND REPAIRS.
-12-
