Applications NAC Outputs
26 ACPS-2406 PN 51304:B 09/02/2003
Section 4 Applications
4.1 NAC Outputs

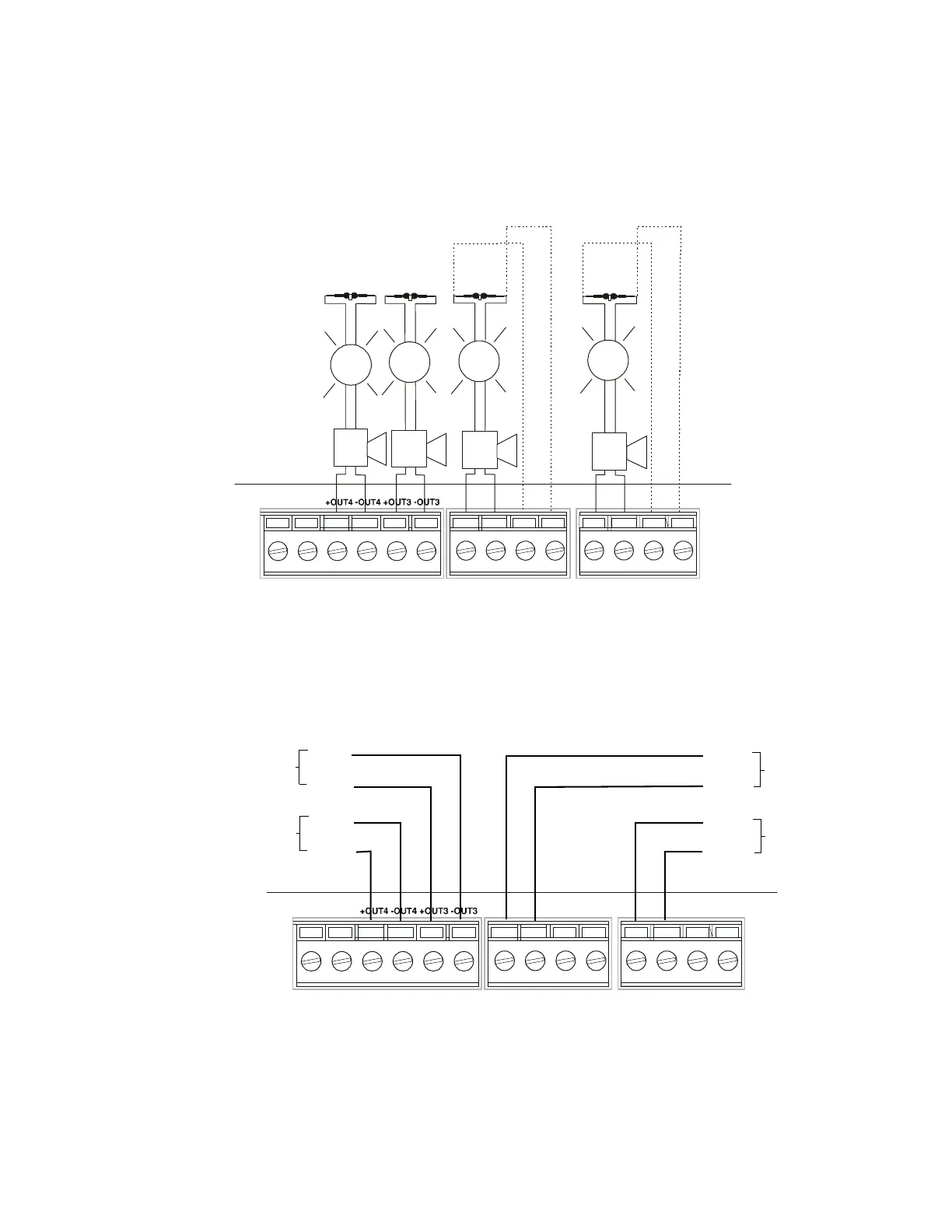

Figure 4.1 Four NAC Outputs
4.2 General Purpose Power
Figure 4.2 General Purpose Power Output
TB5T6BTB4
OUTPUT 1 OUT1 OUT1 OUTP UT 2 O UT 2 O U T2
OUTP UT 4 O U TPUT 3
UZC
SU P+ SU PRET +OUT2 -O U T2 4 W + 4W- +O U T1 -O UT1 4 W+ 4W -
*
*
*
*
*
Use listed end-of-line
resistor, P/N ELR-2.2K,
to terminate Style Y
(Class B) NAC. ELRs
should not be used when
Style Z (Class A) return
is wired.
Note: The NAC outputs shown above are in
a non-coded configuration.
TB5T6BTB4
OUTPUT 1 OUT1 OUT1 OUTPUT 2 OUT2 OUT2
OUTPUT 4 OUTPUT 3
UZC
SUP+ SUPRET
+OUT2 -OUT2 4W+ 4W-
+OUT1 -OUT1 4W+ 4W-
Power Output
Circuit 2
Power Output
Circuit 1
+OUT3
-OUT3
Power Output
Circuit 3
Power Output
Circuit 4
+OUT4
-OUT4
+OUT2
-OUT2
+OUT1
-OUT1
Note: The output is power-limited and non-supervised.
Use an end-of-line relay to supervise.
DIP Switch Settings
3.1 ON
3.2 ON
3.3 ON
3.4 ON
