Notifier ACPS-2406 User Manual

Style B (Class B) Initiating Device Circuit Applications
ACPS-2406 PN 51304:B 09/02/2003 27
4.3 Style B (Class B) Initiating Device Circuit

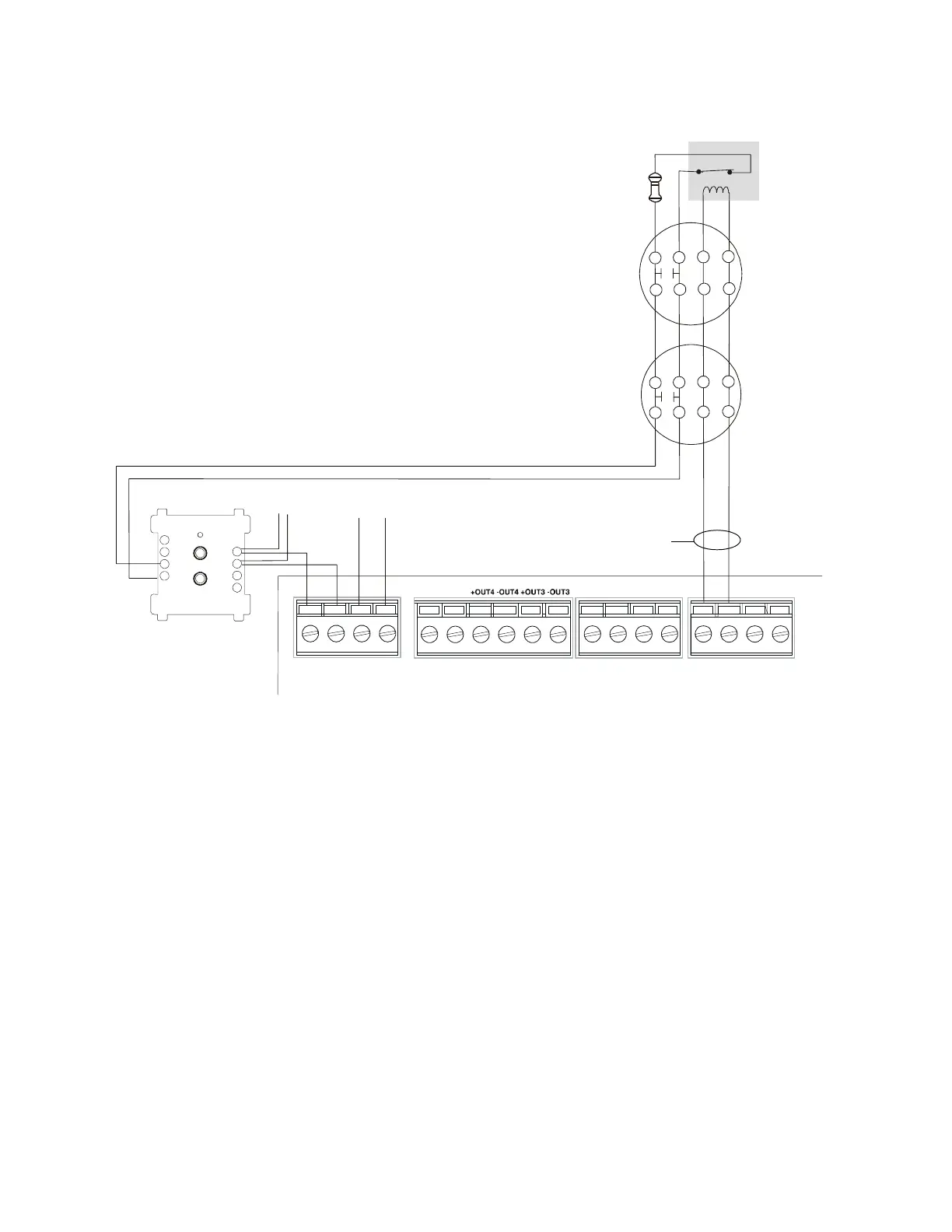

Figure 4.3 Style B (Class B) IDC
4.4 Synchronization
The ACPS-2406 provides synchronization to Gentex, SpectrAlert Series and Wheelock strobes and
horns. When the ACPS-2406 is set for synchronization with DIP switches SW2.6 and 2.7, these
NAC devices will flash and/or sound together
1
.
The ACPS-2406 can also provide synchronization for bells and horns when used with a UZC-256
Universal Zone Coder if the NAC output is configured for coded signals only.
Note:
1. Do not place strobes from any manufacturer onto a coded output.
For example SpectrAlert Series horns and strobes can not be synchronized with a UZC-256 or any coded output.
TB5T6BTB4
TB8
O U TP UT 1 O UT 1 OU T1 OUTPUT 2 OUT2 OUT2
OU TP UT 4 OUT PU T 3
UZC
SUP+ SUPRET
+OUT2 -OUT2 4W + 4W- +OUT1 -OUT1 4W+ 4W-
SLC A
- +
SLC B
- +
90
81
72
63
54
-
-
+
+
+
+
+
+
-
-
-
-
-
-
-
-
+
+
+
+
End-of-Line
Resistor 47K ohm
UL listed power
supervision
relay (shown in
energized state)
Four-wire smoke
detector
Four-wire smoke
detector
Resettable 24
VDC power
FMM-1
SLC to next
device
SLC from
last device
ACPS-2406
DIP Switch Settings*
3.1 ON
2.1 ON
