40 NFS-320/E/C, NFS-320SYS/E Operations Manual — P/N 52747:E1 06/16/2011

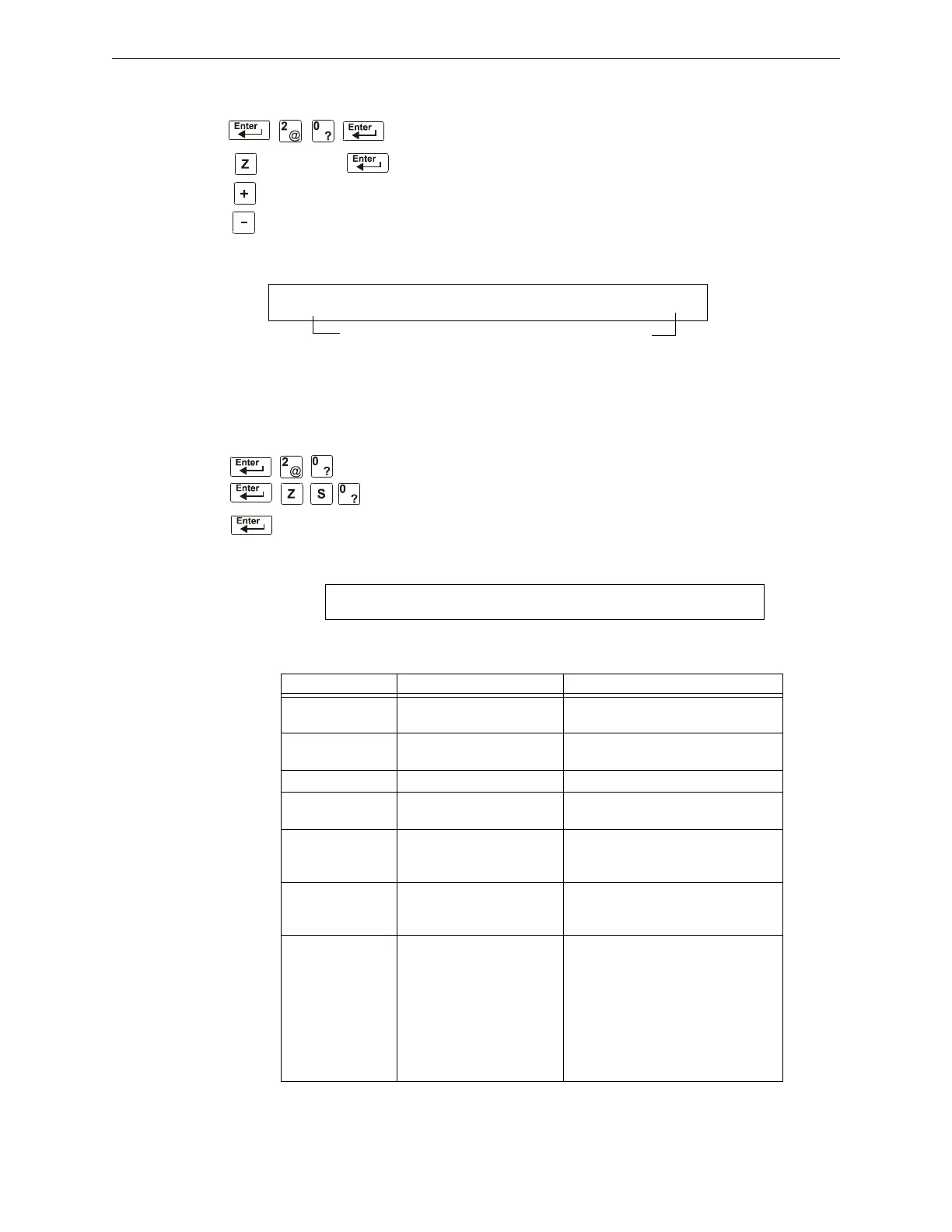

Read Status Operation Viewing and Printing a Read Status
How to View Read Status for a Releasing Zone (R0-R9)
From the “Read Status” screen, press 0, then press the ENTER
key. You can now view the Read Status of a Releasing Zone as
follows: press Z, enter the zone number (R0-R9), then press the
ENTER key. For example, to read the status of Releasing Zone
R0, enter Z, enter R0, then press the
ENTER key. The control
panel now displays information for a Releasing Zone as shown
below.
Figure 4.6 Sample Releasing Zone Read Status Display
How to Read Status for System Functions
The “System Functions” screen specifies global settings for the
control panel. From the “Read Status” screen, press 0, then press the
ENTER key. You can now view Read Status for System Functions as
follows: press Z, enter S0, press the
ENTER key. Shown below is a
sample display and description of items for the Read Status of System
Functions:
Releasing
Zone Number
next device
previous device
Zone label for Releasing Function
Indicates Special Zone R0
Zone status (ON or OFF)
Selections for
Releasing Zone R0
OFF RELEASE FUNCT RELEASE CONTROL
DELAY=00 ABORT=ULI CROSS=N SOK=0000 R00
Parameter Description Settings
SIL INH=000 Silence Inhibit timer in
seconds.
000 = no timer; or the timer duration in
seconds up to 300.
AUTO=000 Auto Silence Timer in
seconds.
000 = no timer; 600-900 seconds.
VERIFY=30 Alarm Verification Timer 00 = no timer; 00-30 seconds.
USA TIME Time and date display
format
USA TIME or EUR TIME
TERM=N Terminal supervision YES – To supervise the wiring of an
FDU-80.
NO – No FDU-80 supervision.
AC_DLY=N Delays AC loss reporting YES - AC loss reporting is delayed for
approximately 3 hours.
NO - No AC loss delay.
LocT One of three operating
modes of a PC or terminal
connected to the control
panel (through TB12 PC
Terminal)
LocT – terminal connected to control
panel and located in the same room
as the control panel.
LocM – terminal connected to control
panel but requires password for
operation.
RemT – terminal connected through a
modem for Read Status operations
only.
Table 4.1 System Function Parameters (1 of 2)
SIL INH=000 AUTO=000 VERIFY=30 USA TIME
TERM=N AC_DLY=Y LocT BLINK=01 ST=4 ACS=N
