NFS-320/E/C, NFS-320SYS/E Operations Manual — P/N 52747:E1 06/16/2011 51
Releasing Zones (R0-R9) Special Zone Operation

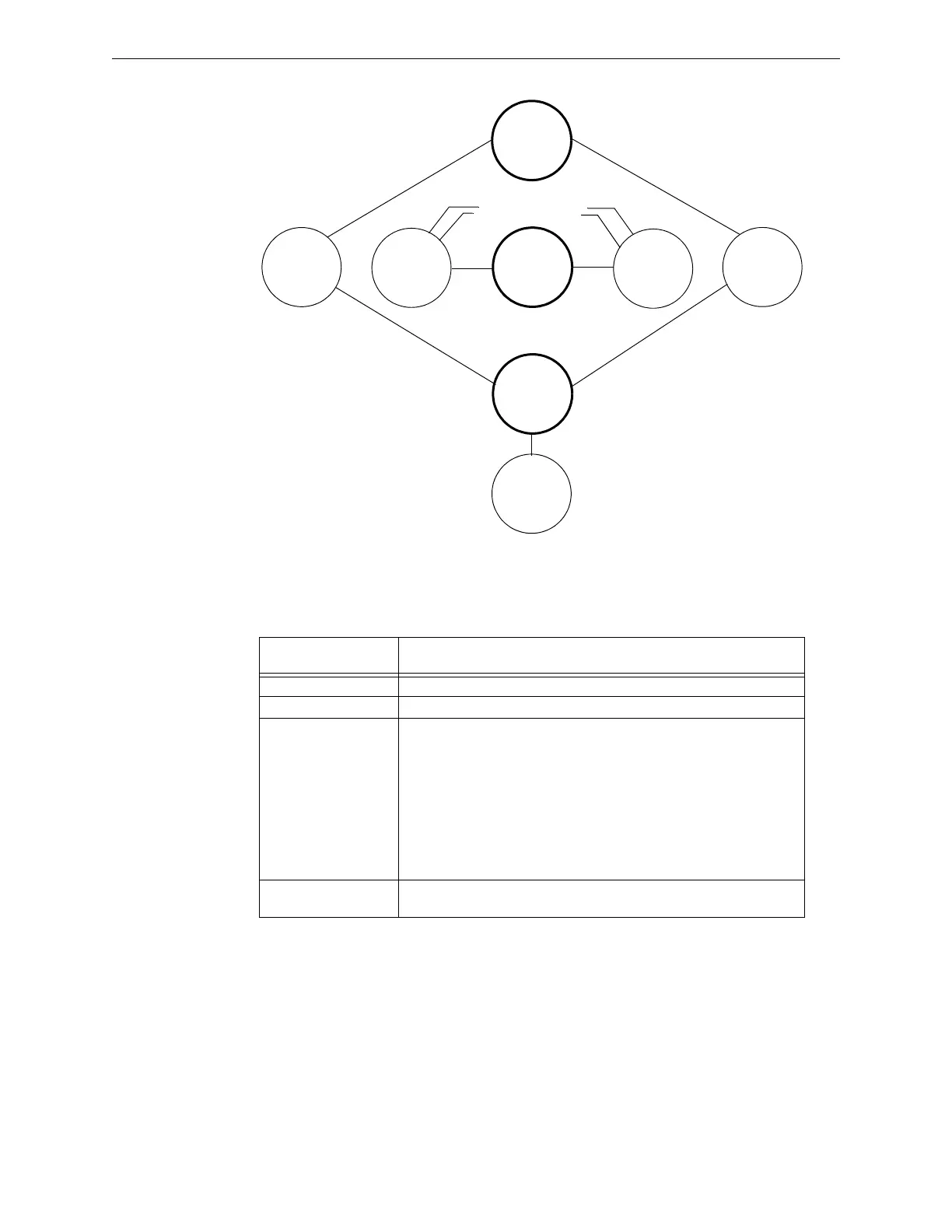

Figure A.2 Illustrated Example of Cross Zone Programming
Listing of each Cross Zone option and the conditions required to activate the Releasing Zone,
according to the example shown in
Figure A.2.
Cross Zone Selection
(Cross=)
Condition(s) Required to Activate the Releasing zone
Cross=N An alarm from any initiating devices activates the releasing circuit.
Cross=Y An alarm from any two initiating devices activates the releasing circuit.
Cross=Z An alarm from two initiating devices mapped to different Software Zones,
but mapped to the same Releasing Zone.
• An alarm from 2D101 and 2D103 – detectors mapped to different
zones, but both list ZR1 in their CBE.
• An alarm from 2D102 and 2D104 – detectors mapped to different
zones, but both list ZR1 in their CBE.
• An alarm from 2D101 and 2D104 – detectors mapped to different
zones, but both list ZR1 in their CBE.
• An alarm from 2D102 and 2D103 – detectors mapped to different
zones, but both list ZR1 in their CBE.
Cross=H Activation of heat detector 2D104 and one smoke detector (2D101,
2D102, or 2D103).
Table A.2 Example of Cross Zone Selections
Releasing
Zone ZR1
Software
Zone Z02
Software
Zone Z01
Smoke
Detector
2D101
Smoke
Detector
2D103
Heat
Detector
2D104
Smoke
Detector
2D102
NAC
B03
CBE list = Z02 ZR1
CBE list = Z01 ZR1
CBE list = Z01 ZR1
