2 / INSTALLING YOUR APPLIANCE
• CONNECTING YOUR APPLIANCE
— Connect the intake hose to a valve with a
threaded end Ø 20x27 (3/4 BSP).
Check presence of the seal.
Water intake :
— Min. water pressure : 0,1 MPa or 1 bar
— Max. water pressure : 1 MPa or 10 bars
••
Electrical power supply (Fig. 13) :
The electrical installation must comply with
the prevailing standards and the Electricity
Board’s regulations in the country concerned,
in particular for the earth electrode.
We cannot be held liable for any incident cau-
sed by incorrect electrical installation.
Tip :
Tips for electrical installation of your
appliance :
— Do not use an extension cord, adaptor or
multiple plug.
— Never remove the grounding.
— The plug must be easy to access but out of
the reach of children.
In the event of uncertainty, consult your ins-
taller.
••
Cold water supply (Fig. 13) :
— Connect the emptying hose :
- either temporarily, to a sink or bathtub
- or permanently, to a ventilated siphon.
If your set-up does not have a ventilated
siphon, ensure that the connection is not
watertight.
In fact, to prevent waste water from returning
to the machine, we strongly recommend lea-
ving free space between the machine's emp-
tying hose and the discharge pipe.
In any case, the emptying crosshead must be
placed at a height of 0.80 m to 1.10 m in rela-
tion to the base of the machine.
Important :
Ensure the emptying hose is supported
using an attachment to prevent the cross-
head from coming off during emptying and
causing a flood.
Important :
Your appliance complies with
European directives 2006/95/CE (low vol-
tage directive) and 2004/108/CE (electro-
magnetic compatibility).
••
Discharge of waste water (Fig. 13) :

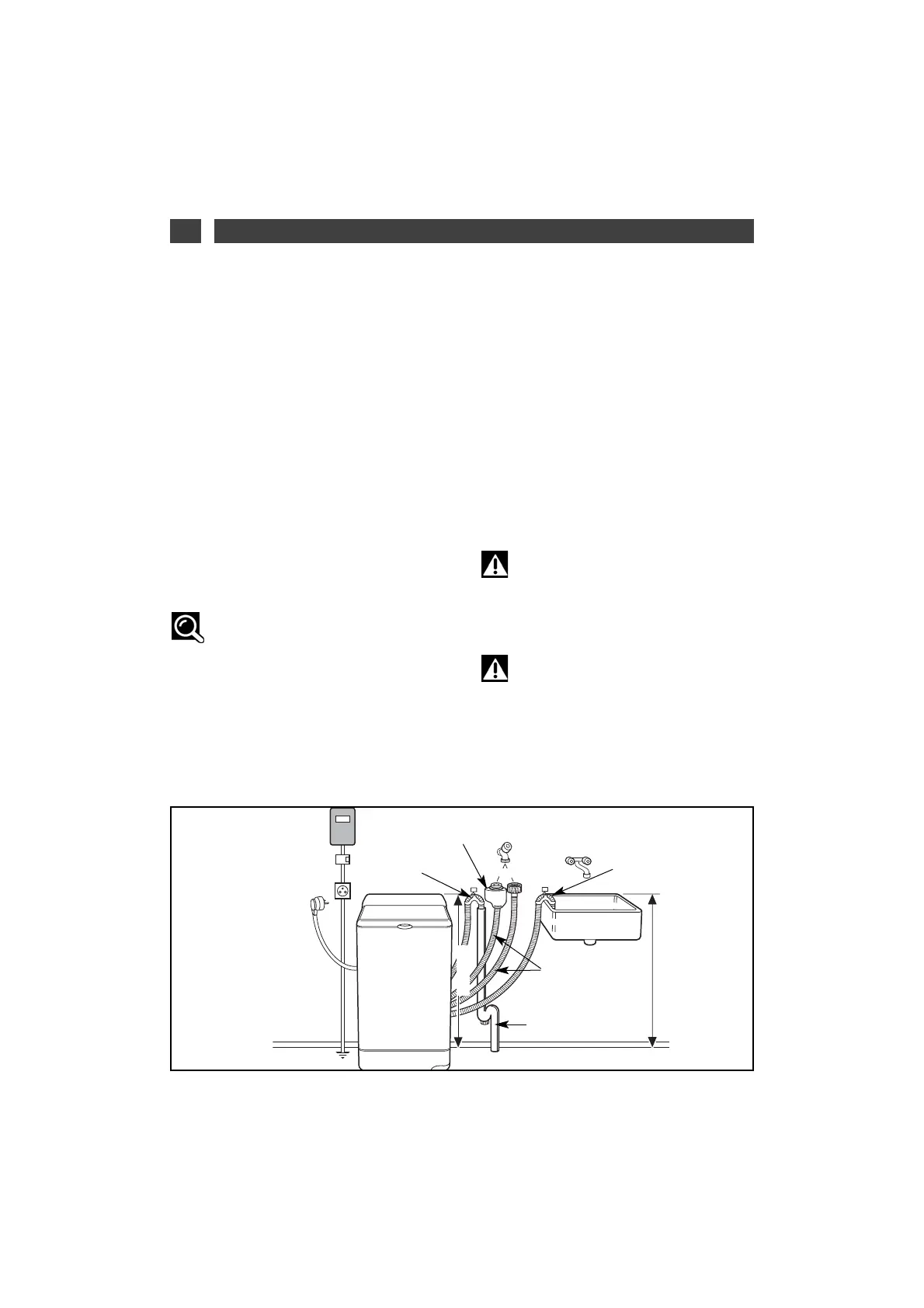

Fig. 13
Pour les modèles équipés d’un
tuyau avec boîtier de sécurité :
position de montage indifférente
ou
évacuation sur évier
1,10 m maxi
0,80 m mini
syphon ventilé
tuyau d’alimentation en
eau (différent suivant le
modèle)
évacuation sur
siphon ventilé
