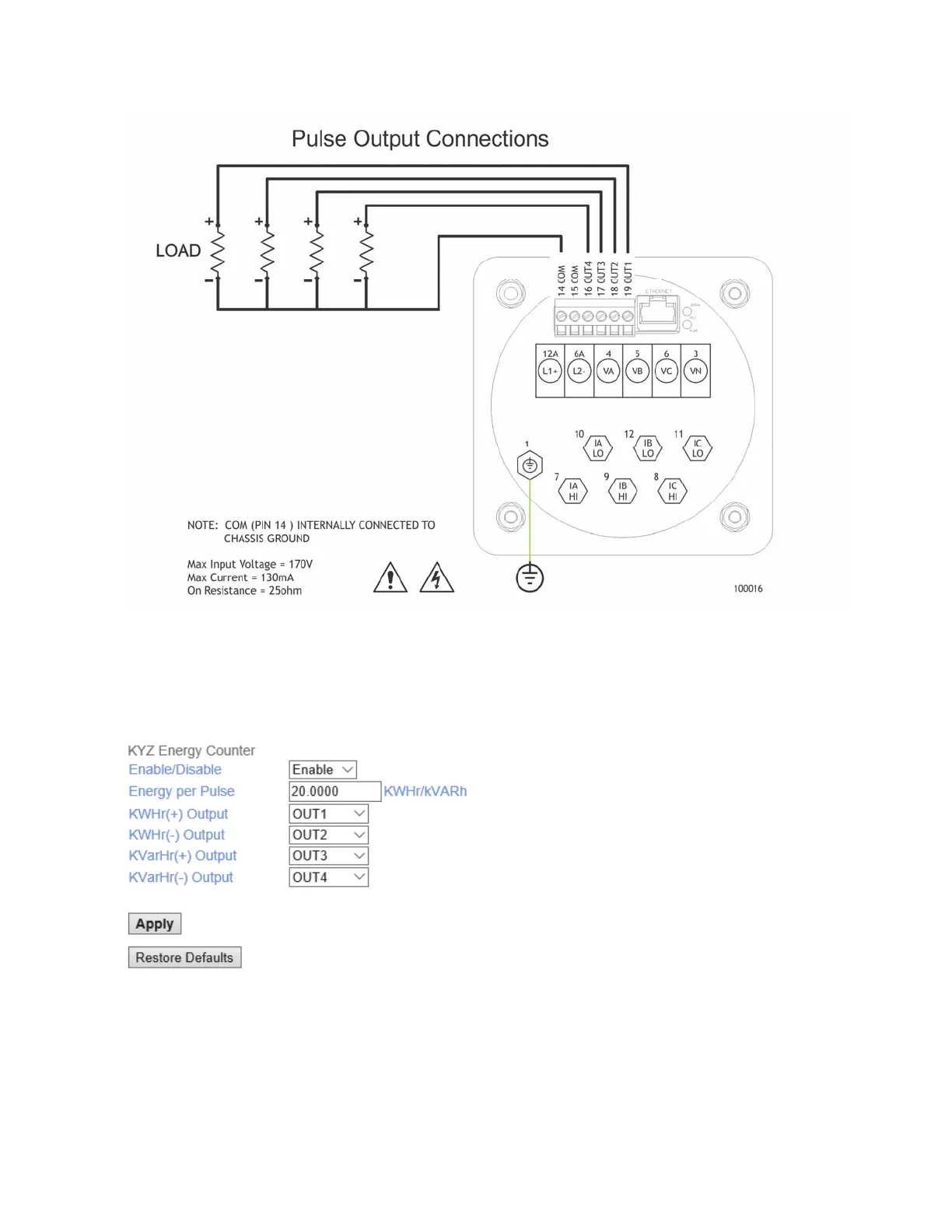

Figure 7 – Pulse Output Connections
KYZ configuration in the 60 Series is achieved by navigating to the Settings / Input
screen of the instrument’s webserver.
When the 4 digital KYZ option is ordered, the positive and negative KWHr and KVarHr
can be assigned to any of the four outputs in whatever order is desired.
Explanation of KYZ Parameters
