Novation Launchkey Series User Manual

40 41
4.1.4 Arm/ Select (61 & 49 Key Models Only)
The ‘Arm/ Select’ button is used to set the functionality of the 8 ‘Track Buttons’ to either arm tracks,
enabling recording; or to select a track. While set to Arm the buttons light up red when a track is
armed for recording and dim red when not. Unlit buttons show that no track is associated with the
fader.
When set to Select the buttons will be lit white, with selected tracks being bright and unselected
tracks dim. Pushing a fader button will select that track.
4.1.5 Transport Functions

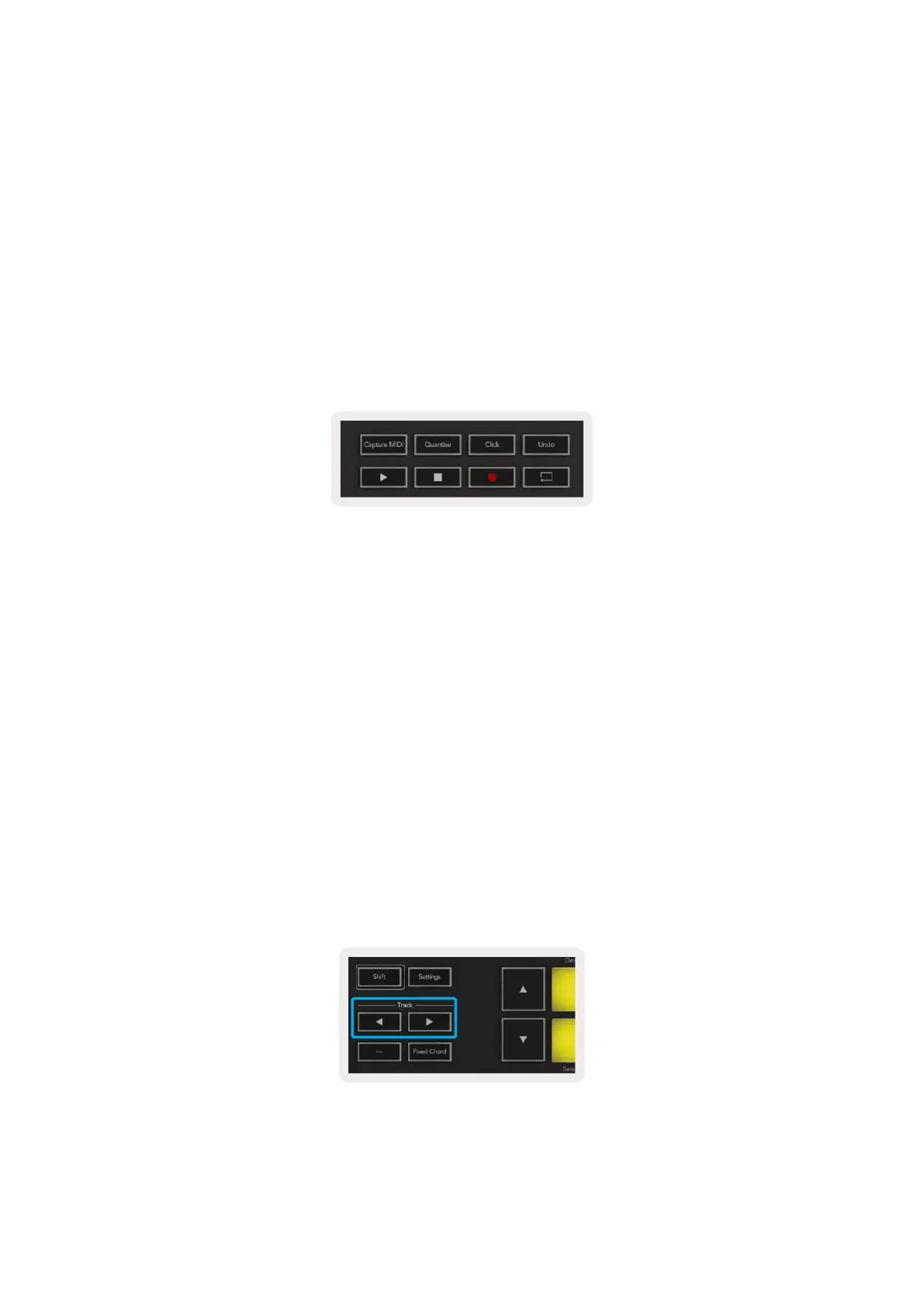

The MIDI Buttons shown below provide key functionality for performing and recording with Logic Pro.
• Capture Midi - pressing this will trigger the “Capture as Recording” function in Logic
• Click - toggles the metronome click
• Undo - pressing this will trigger the undo function
• Record - pressing this will trigger the record function
• Play & Stop - these buttons control playback of the track.
• Loop - toggles the transport loop (“Cycle Mode”)
4.1.6 Navigation
The ◄ and ►track buttons allow you to navigate between which track is currently selected. When in
Session Mode the pad for the currently selected track will be lit a brighter red than the non-selected
tracks and you will notice the smart controls will change with the selected track when in Device Mode.

Novation Launchkey Series Specifications

General

Velocity Sensitive	Yes
Transport Controls	Yes
Pitch Bend/Mod Wheel	Yes
Arpeggiator	Yes
Scale Mode	Yes
Dimensions	Varies by model
Weight	Varies by model
Type	MIDI Controller Keyboard
Key Count	25, 37, 49, 61
Pads	16 RGB Backlit Velocity Sensitive Pads
Knobs	8
Faders	9
Connectivity	USB
Software Included	Ableton Live Lite, XLN Audio Addictive Keys
Capture MIDI	Yes
DAW Integration	Ableton Live, Logic Pro, Cubase
Power Source	USB
Aftertouch	Channel Aftertouch (on some models)
