NPK
- 13 -

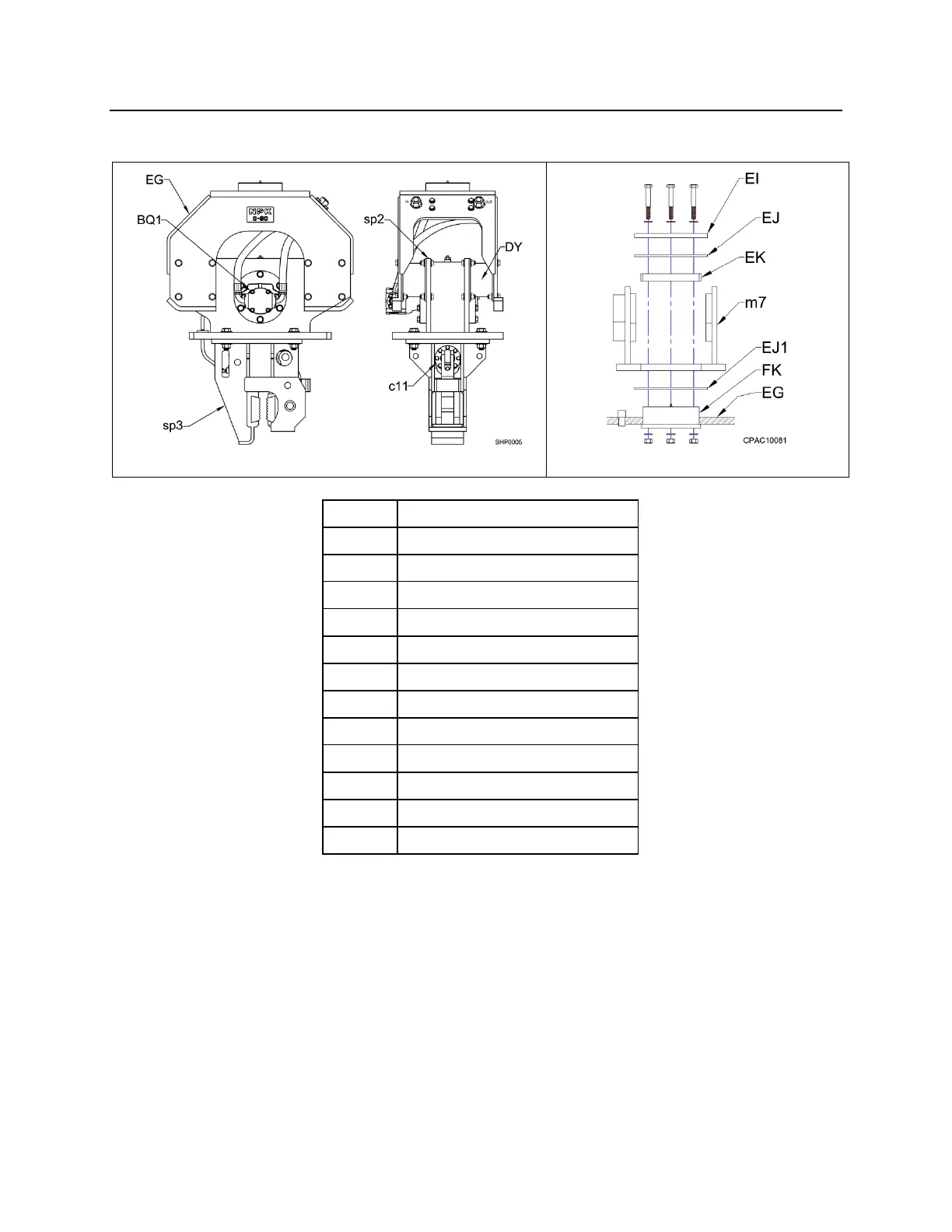

SHEET PILE DRIVER STRUCTURE
C6CSD THROUGH C10CSD SHEET PILE DRIVERS
MODEL C8CSD
SWIVEL
ITEM
DESCRIPTION
BQ1
HYDRAULIC MOTOR
c11
CYLINDER ASSEMBLY
DY
RUBBER MOUNT
EG
UPPER FRAME
EI
THRUST COVER
EJ
UPPER THRUST PLATE
EJ1
LOWER THRUST PLATE
EK
THRUST BEARING
FK
SWIVEL HUB (weld-on)
m7
TOP BRACKET
sp2
LOWER FRAME
sp3
CYLINDER CASE
