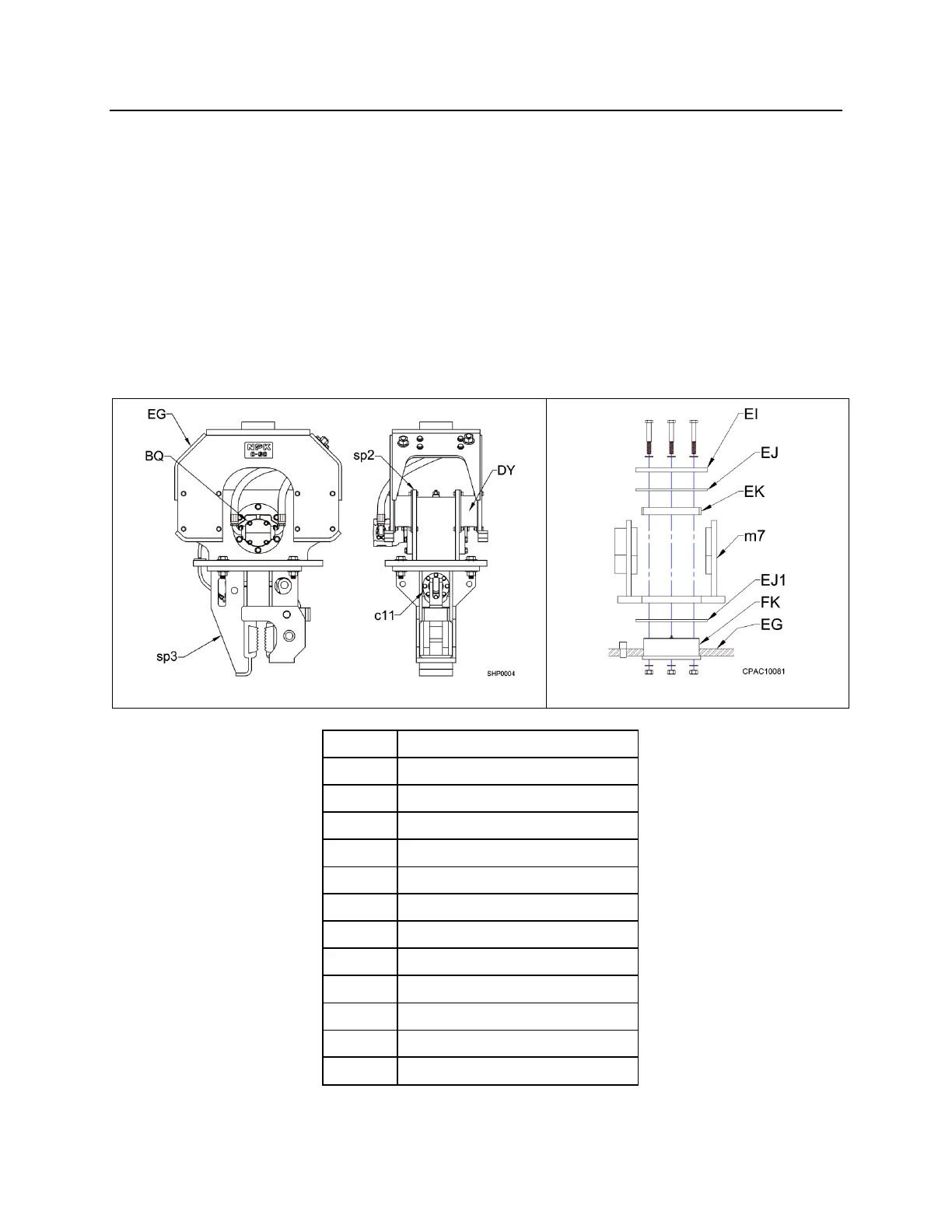

SHEET PILE DRIVER STRUCTURE
C6CSD THROUGH C10CSD SHEET PILE DRIVERS
The C6CSD through C10CSD SHEET PILE DRIVERS consist of a top bracket, an
upper frame, a lower frame and a cylinder assembly. The C6CSD, C8CSD and
C10CSD SHEET PILE DRIVERS are available with a fixed or a swivel top bracket.
The C6CSD and C8CSD upper frame is mounted to the lower frame with (4) bolt-on
rubber mounts. C10CSD models use (8) rubber mounts. The rubber mounts reduce
the amount of vibration being transmitted to the excavator.
The lower frame contains an eccentric weight suspended on roller bearings and spun by
a hydraulic motor. The cylinder assembly is bolted to the lower frame. The upper frame
also contains a bolt-on hydraulic manifold.
