NSK EX Series User Manual

5 pages

To Next Page

To Previous Page

-4-

In case of E4R / E10R / E16R / E20RI / E64R etc

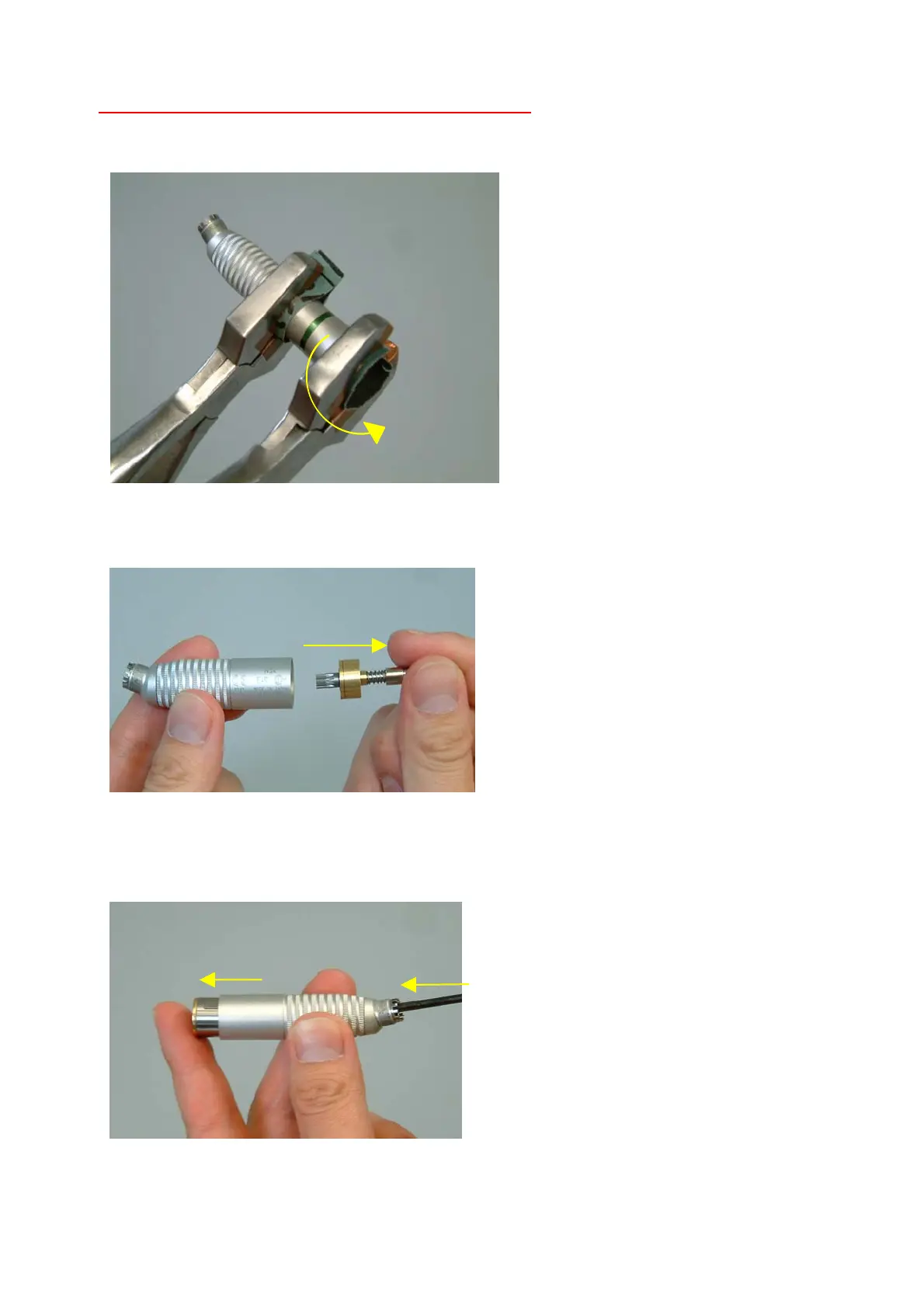

2-2 Removal of the Rear Joint

Protect the Sheath and the Rear Joint with Emery Cloth, turn counterclockwise with T-2 to remove the Sheath.

2-3 Removal of the Dog Clutch Shaft Ass’y

2-3 Removal of the Reduction Gear Ass’y

Push the the Reduction Gear Ass’y with Stick etc.

Please refer to the part list for the more detailed disassembly.
