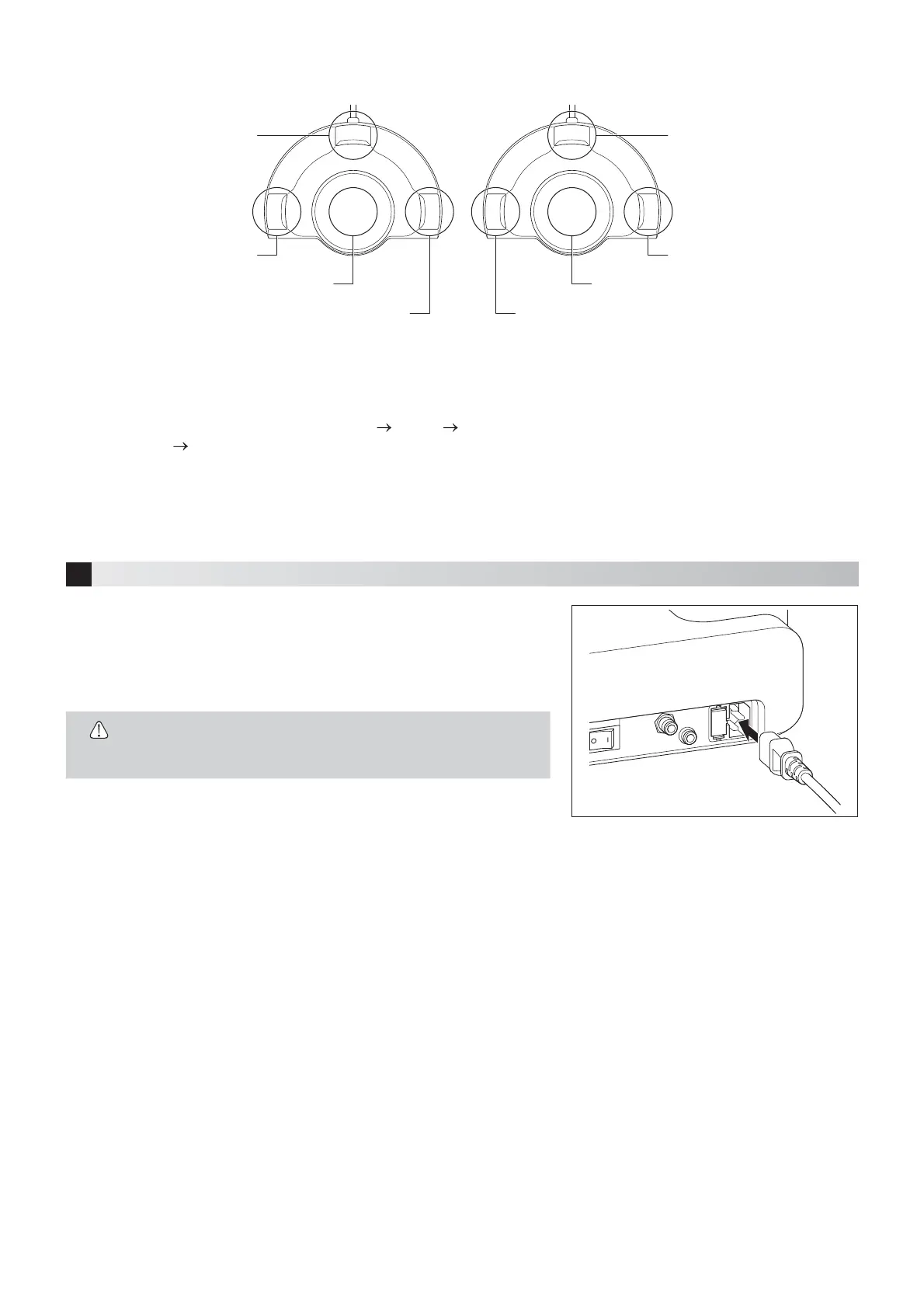

4-3 Foot Control
When using Ultrasonic Mode When using Powder Mode
A: Power Down C: Power up
B: Switches P/E/G B: Rinse (Irrigation and air)
D: Vibration and irrigation D: Powder, irrigation, and air
C: Power up A: Power down
Ultrasonic Mode
A: Power Down
Reduces the power level.
B: Switches P/E/G (Ultrasonic Mode)
Toggles Ultrasonic Mode in the order of P (Perio)
E (Endo)
G (General) P (Perio)... every time the button is depressed.
C: Power up
Increases the power level.
D: Vibration and irrigation
Vibrates and irrigates while the button is depressed.
Powder Mode
A: Power Down
Reduces the power level.
B: Rinse (Irrigation and air)
Sprays water and air while the button is depressed.
C: Power up
Increases the power level.
D: Powder, irrigation, and air
Sprays powder, water, and air while the button is depressed.
5
Installation
5-1 Connecting the AC power cord
1) Turn the Power Switch to OFF before connecting the AC power cord.
2) Insert the AC Power Cord so that it correctly fits into the AC Power Cord Connector
Socket at the back of the Control Unit (Fig. 1).
3) Plug the AC power cord into a wall outlet specified for medical use.
CAUTION
tDo not tug the AC power cord by holding and pulling its cord.
tMake sure that the device has completely stopped before removing or
inserting the AC power cord.
Fig. 1
