NTI Trinity TX101 - Near Boiler Piping (Central Heating - CH)

Tx I&O Manual │Boiler and Heating System Piping
39

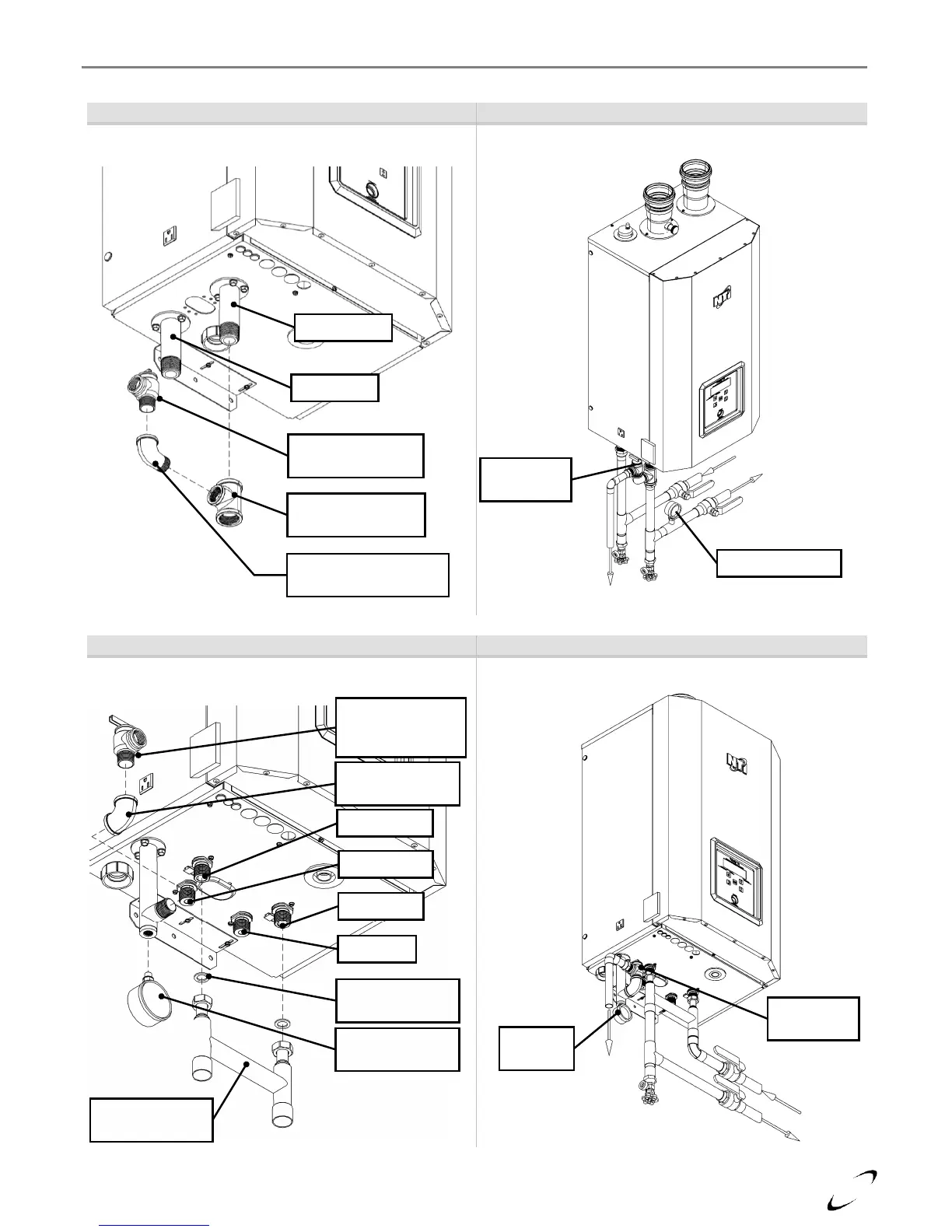

Near Boiler Piping (Central Heating – CH)
Figure 10-2(a)
Figure 10-2(b)
Tx51-200 (non-Combi) – Fitting Identification
Tx51-200 (non-Combi) – CH Piping
Figure 10-2(c)
Figure 10-2(d)
Tx151C & Tx200C (Combi) – Fitting Identification
Tx151C & Tx200C (Combi) – CH Piping
¾” Brass Street Elbow
(Factory supplied)
1x1x3/4” Brass Tee
(factory supplied)
30 PSI Relief Valve
(factory supplied)
Boiler Inlet
Boiler Outlet
Outlet
Inlet
Pressure
Relief Valve
Pressure Gauge
Primary Loop
(factory supplied)
Gaskets
(factory supplied)
30 PSI Relief
Valve (factory
supplied)
Boiler Inlet
Boiler Outlet
DHW Outlet
DHW Inlet
Pressure Gauge
(factory supplied)
¾” Brass Elbow
(factory supplied)
Outlet
Inlet
Pressure
Relief Valve
Pressure
Gauge
