TRX Series II - Installation - Startup - Maintenance Instructions
Exhaust must terminate a minimum of 18” above the air intake
termination. See Figure 39 for more details.
3” IPEX Low Profile Termination illustrated. See Figure 41 for more
details.
Exhaust must terminate a minimum of 18” above the air intake
termination. See Figure 40 for more details.
NOTE: These drawings are meant to demonstrate system venting only.
The installer is responsible for all equipment and detailing required by local codes.

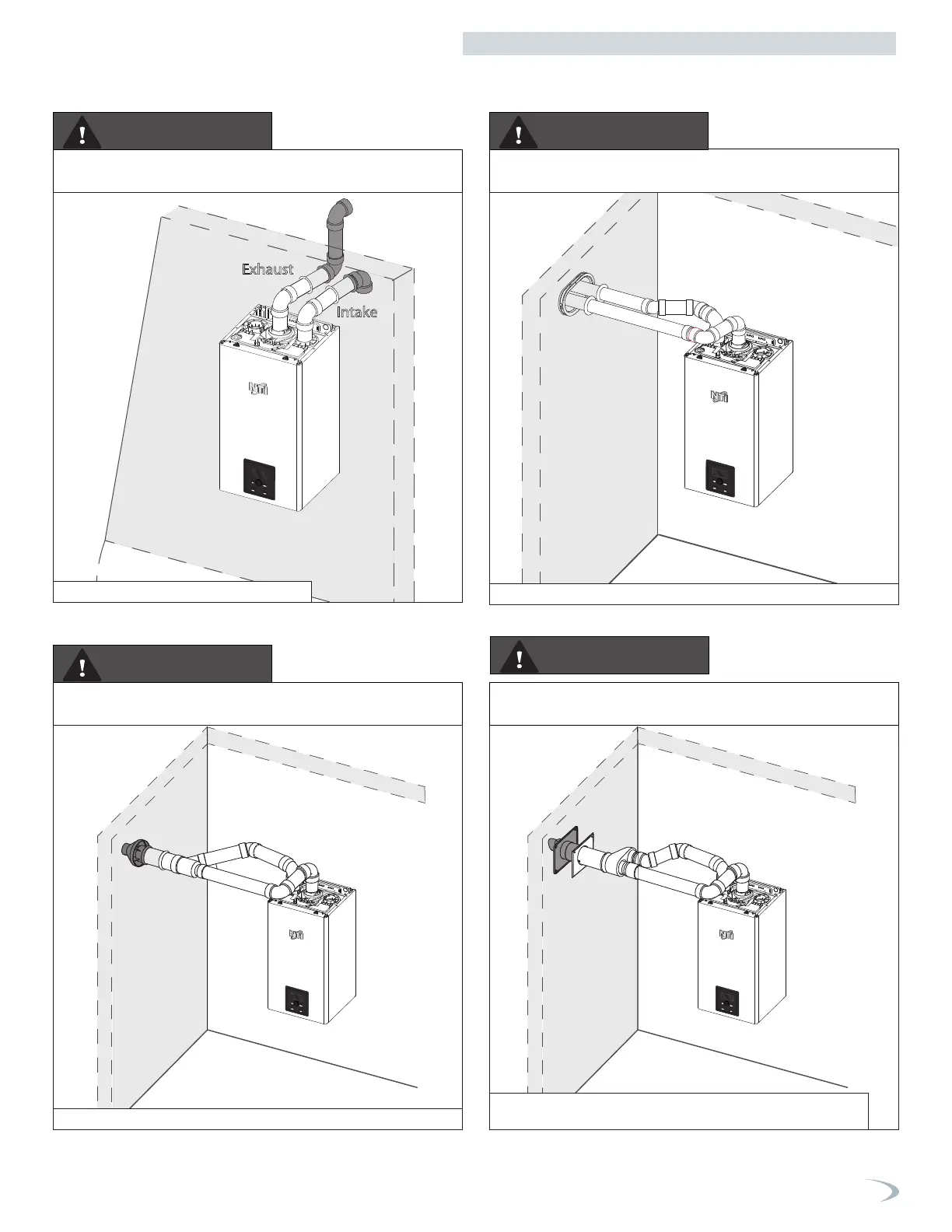

Sidewall Venting Options - Direct Vent Installation
Two Pipe Termination
Low Profile Termination
Concentric Termination
Intake
Exhaust
Exhaust
Intake
Exhaust
Intake
Exhaust
Intake
Figure 35 - Two Pipe Sidewall Venting
Figure 36 - Low Profile Sidewall Termination (with Optional IPEX Kit)
Figure 37 - Sidewall Concentric Termination (with Optional IPEX kit)
Figure 38 - Sidewall Concentric Terminatio
(with Optional Duravent / Innoflue Kit)
3” Duravent / Innoflue Concentric Termination illustrated. See Figure
42 for more details.
Part 5 - Venting
