Part 9 - Controls
6c. User Menu - Time Program - View/Edit Schedule - Wizard time programming
Navigate the Wizard Time Programming menu as follows:
1. From the View/Edit Schedule menu select “Wizard Time Programming” and press ENTER.
2. Turn the dial to highlight the zone you wish to select and press ENTER.
3. Proceed with setting the time program as illustrated below.
Scheduling
Free Time Programming
Wizard time programming
Preset programs
Zone 1
Zone 2
All zone
Set time program
Select days with the same time program?
00
Su Mo Tu We Th Fr Sa Save
02 04 06 08 10 12 14 16 18 20 22 24
00
Su Mo Tu We Th Fr Sa Save
02 04 06 08 10 12 14 16 18 20 22 24
Comfort days time programming
Add period
Start End00:00 00:00
00 02 04 06 08 10 12 14 16 18 20 22 24
Save
Comfort days time programming
Add period
Start End06:00 08:00
Start End18:00 22:00
00 02 04 06 08 10 12 14 16 18 20 22 24
Save
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Select days with the same time program?
Scheduling
Free Time Programming
Wizard time programming
Preset programs
Zone 1
Zone 2
All zone
Set time program
Select days with the same time program?
00
Su Mo Tu We Th Fr Sa Save
02 04 06 08 10 12 14 16 18 20 22 24
00
Su Mo Tu We Th Fr Sa Save
02 04 06 08 10 12 14 16 18 20 22 24
Comfort days time programming
Add period
Start End00:00 00:00
00 02 04 06 08 10 12 14 16 18 20 22 24
Save
Comfort days time programming
Add period
Start End06:00 08:00
Start End18:00 22:00
00 02 04 06 08 10 12 14 16 18 20 22 24
Save
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Select days with the same time program?
Scheduling
Free Time Programming
Wizard time programming
Preset programs
Zone 1
Zone 2
All zone
Set time program
Select days with the same time program?
00
Su Mo Tu We Th Fr Sa Save
02 04 06 08 10 12 14 16 18 20 22 24
00
Su Mo Tu We Th Fr Sa Save
02 04 06 08 10 12 14 16 18 20 22 24
Comfort days time programming
Add period
Start End00:00 00:00
00 02 04 06 08 10 12 14 16 18 20 22 24
Save
Comfort days time programming
Add period
Start End06:00 08:00
Start End18:00 22:00
00 02 04 06 08 10 12 14 16 18 20 22 24
Save
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Select days with the same time program?
Scheduling
Free Time Programming
Wizard time programming
Preset programs
Zone 1
Zone 2
All zone
Set time program
Select days with the same time program?
00
Su Mo Tu We Th Fr Sa Save
02 04 06 08 10 12 14 16 18 20 22 24
00
Su Mo Tu We Th Fr Sa Save
02 04 06 08 10 12 14 16 18 20 22 24
Comfort days time programming
Add period
Start End00:00 00:00
00 02 04 06 08 10 12 14 16 18 20 22 24
Save
Comfort days time programming
Add period
Start End06:00 08:00
Start End18:00 22:00
00 02 04 06 08 10 12 14 16 18 20 22 24
Save
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Select days with the same time program?
Select zone if necessary.
Turn the dial and press ENTER to select
the days.
Turn the dial to select SAVE and press
ENTER.
Turn the dial to select:
- Days remainingif there are any days which have not yet been programmed, then
repeat the steps described above.
or
Turn the dial to select:
- Modify to change any previously programmed periods.
or
Turn the dial to select:
- Exit to exit schedule programming.
View/Edit Schedule
Free Time Programming
Wizard time programming
Preset programs
What time do you want to
enable rooms heating?
00
02 04 06 08 10 12 14 16 18 20 22 24
06:00
What time do you want to
the first time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
08:00
Do you want to add a second heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
What time do you want to
enable again rooms heating?
00 02 04 06 08 10 12 14 16 18 20 22 24
18:00
What time do you want the
second time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
22:00
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Do you want to add a third heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
View/Edit Schedule
Free Time Programming
Wizard time programming
Preset programs
What time do you want to
enable rooms heating?
00
02 04 06 08 10 12 14 16 18 20 22 24
06:00
What time do you want to
the first time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
08:00
Do you want to add a second heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
What time do you want to
enable again rooms heating?
00 02 04 06 08 10 12 14 16 18 20 22 24
18:00
What time do you want the
second time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
22:00
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Do you want to add a third heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
View/Edit Schedule
Free Time Programming
Wizard time programming
Preset programs
What time do you want to
enable rooms heating?
00
02 04 06 08 10 12 14 16 18 20 22 24
06:00
What time do you want to
the first time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
08:00
Do you want to add a second heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
What time do you want to
enable again rooms heating?
00 02 04 06 08 10 12 14 16 18 20 22 24
18:00
What time do you want the
second time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
22:00
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Do you want to add a third heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
View/Edit Schedule
Free Time Programming
Wizard time programming
Preset programs
What time do you want to
enable rooms heating?
00
02 04 06 08 10 12 14 16 18 20 22 24
06:00
What time do you want to
the first time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
08:00
Do you want to add a second heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
What time do you want to
enable again rooms heating?
00 02 04 06 08 10 12 14 16 18 20 22 24
18:00
What time do you want the
second time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
22:00
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Do you want to add a third heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
View/Edit Schedule
Free Time Programming
Wizard time programming
Preset programs
What time do you want to
enable rooms heating?
00
02 04 06 08 10 12 14 16 18 20 22 24
06:00
What time do you want to
the first time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
08:00
Do you want to add a second heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
What time do you want to
enable again rooms heating?
00 02 04 06 08 10 12 14 16 18 20 22 24
18:00
What time do you want the
second time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
22:00
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Do you want to add a third heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
View/Edit Schedule
Free Time Programming
Wizard time programming
Preset programs
What time do you want to
enable rooms heating?
00
02 04 06 08 10 12 14 16 18 20 22 24
06:00
What time do you want to
the first time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
08:00
Do you want to add a second heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
What time do you want to
enable again rooms heating?
00 02 04 06 08 10 12 14 16 18 20 22 24
18:00
What time do you want the
second time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
22:00
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Do you want to add a third heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
View/Edit Schedule
Free Time Programming
Wizard time programming
Preset programs
What time do you want to
enable rooms heating?
00
02 04 06 08 10 12 14 16 18 20 22 24
06:00
What time do you want to
the first time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
08:00
Do you want to add a second heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24
What time do you want to
enable again rooms heating?
00 02 04 06 08 10 12 14 16 18 20 22 24
18:00
What time do you want the
second time slot to end?
02 04 06 08 10 12 14 16 18 20 22 24
22:00
00
02 04 06 08 10 12 14 16 18 20 22 24
Mo Tu We Th Fr
Days remaining
Exit
Modify
Do you want to add a third heating time slot?
YES NO
02 04 06 08 10 12 14 16 18 20 22 24

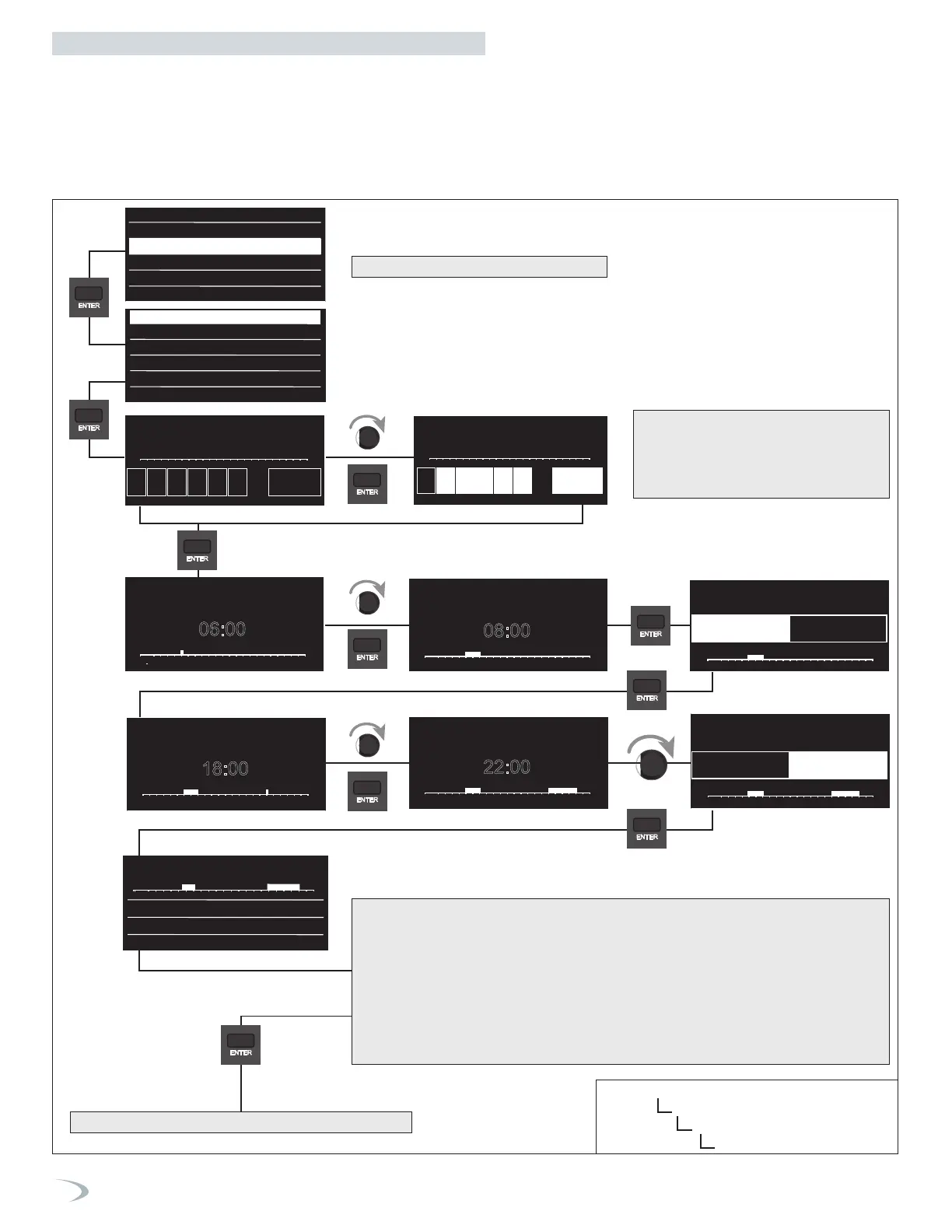

Figure 90 - User Menu
Time Program Menu
View/Edit Schedule
Wizard time programming
The display reverts to showing the previous screen.
