NTI TRX085 - TEST MODE Operations

89
TRX Series II - Installation - Startup - Maintenance Instructions
Part 9 - Controls
I. TEST MODE
Navigate the Test Mode menu as follows:
1. From the Main Menu, turn the dial to highlight
“Test Mode” and press ENTER.
2. If prompted, insert the access code; turn the
dial to adjust the value to 234 and press ENTER.
3. Turn the dial to highlight the option you wish
to access then press ENTER.
4. Press ESC to return to the previous screen.

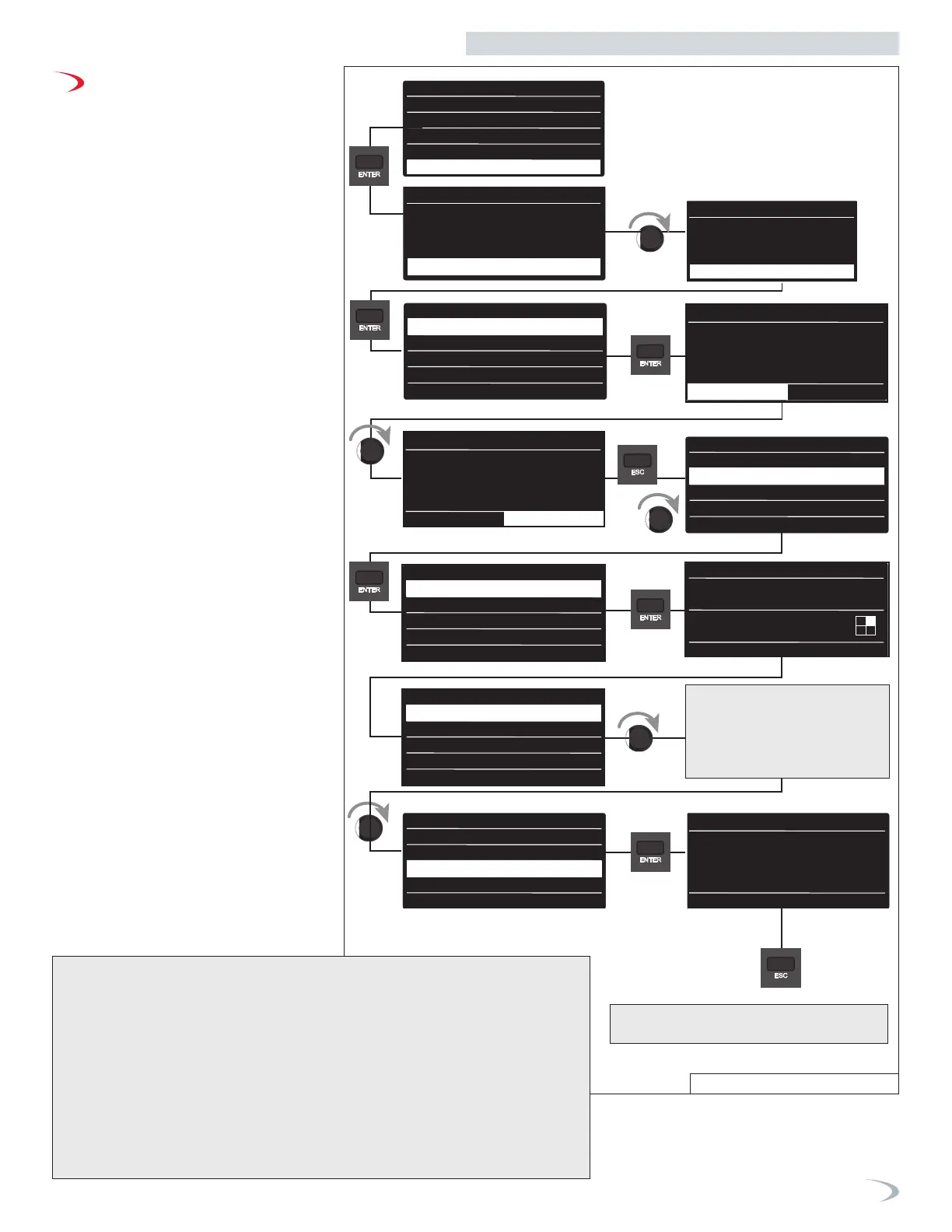

1. Burner Test
Navigate as follows:
1. From the Test Mode menu, turn the dial to
highlight “Burner Test” and press ENTER.
2. Turn the dial to highlight “Max Power” or “Min
Power” and press ENTER to start the test.
3. To switch between Max Power and Min Power,
turn the dial to the other setting and press
ENTER.
4. Press ESC to stop the test and return to the
previous screen.
NOTE: When calibrating combustion it is
necessary to calibrate Max Power prior to
calibrating Min Power - See section 11A.
2. Output Test
Navigate as follows:
1. From the Test Mode menu, turn the dial to
highlight “Output Test” and press ENTER.
2. Turn the dial to highlight the function you wish
to test and press ENTER, then turn the dial to
select “ON” and press ENTER. Repeat for each
function you want to test.
3. To start the test, turn the dial to highlight
“Manual Mode Activation” and press ENTER,
then turn the dial to highlight “ON” and press
ENTER. To stop the test, turn the dial to
highlight “OFF” and press ENTER.
NOTE: Manual Mode remains active when the
Output Test menu is exited; to disable it, set
Manual Mode Activation = “OFF”.
NOTE: Burner operation is inhibited when Manual
Mode Activation = ON.
3. Air Purge Function
From the Test Mode menu, turn the dial to
highlight “Air Purge Function” and press ENTER.
The boiler starts the Air Purge Function which
lasts about 7-minutes.
To exit before the function ends, press ESC.
NOTE: Burner operation is inhibited while the Air
Purge Function is active.
