Nucomm CHANNELMASTER TX1 - Figure 4-3 RS 232 Connector

Revision 2.2
Installation 4-3
Pin # Function
RS232 RS485
1 N/C N/C
2 RX / IN RX/A
3 TX / OUT TX/A
4 N/C N/C
5 GND GND
6 N/C TX/B
7 N/C N/C
8 N/C RX/B
9 +11Volts +11Volts

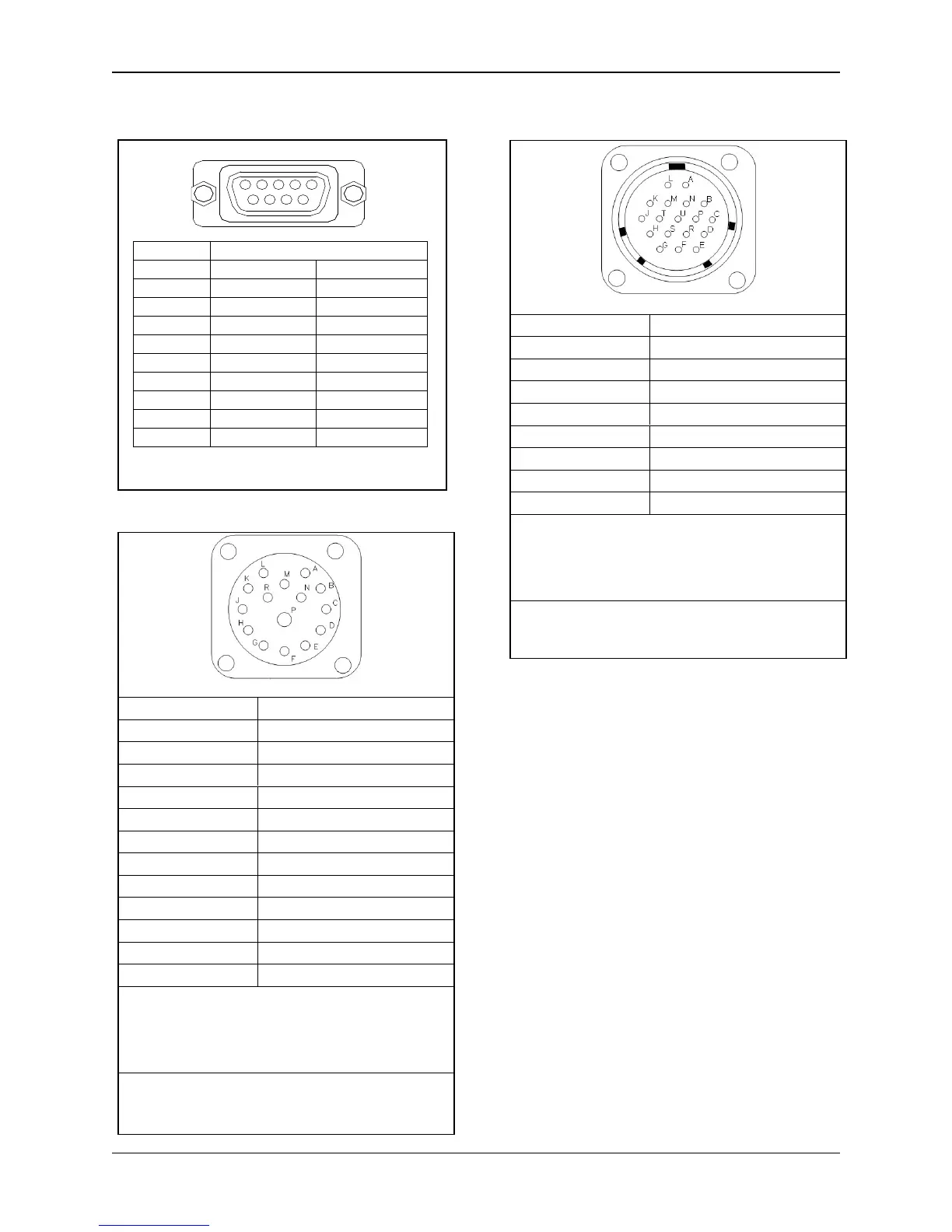

Figure 4-3 RS 232 Connector
1
6
9
5
RS 232 (DB9
-
F)
PIN-OUT DESCRIPTION
C AC Neutral
E Chassis GND
G AC Line
H, S GND
P, U, B +DC IN
M RS232 TX / OUT
L RS232 RX / IN
Nucomm P/N: 512-M2001-000
Detoronics P/N: DT02H-14-18PN
Mating Connector
Nucomm P/N 512-F3001-000
Mil-C-26482, Series 1
P/N: MS3116F-14-1PS
Figure 4-5 Power Connector (1)
PIN-OUT DESCRIPTION
J +…….Analog1/AES1
H GND..Analog1/AES1
G -……..Analog1/AES1
M +…….Analog2
L GND..Analog2
K -……..Analog2
F +…….Analog3/AES2
E GND..Analog3/AES2
D -……..Analog3/AES2
C +…….Analog4
B GND..Analog4
A -…….Analog4
Nucomm P/N: 512-M2014-015
Detoronics P/N: DT02H-14-15PN
Mating Connector
Nucomm P/N 512-F3012-015
Mil-C-26482, Series 1
P/N: MS3116J-14-15S
Figure 4-4 Audio Connector (6)
