Nucomm CHANNELMASTER TX1 - Figure 4-7 Audio Cable Construction

Revision 2.2
Installation 4-5
CM Transmitter Audio Cable
PIN-OUT DESCRIPTION
J +…….Analog1/AES1
H GND..Analog1/AES1
G -……..Analog1/AES1
M +…….Analog2
L GND..Analog2
K -……..Analog2
F +…….Analog3/AES2
E GND..Analog3/AES2
D -……..Analog3/AES2
C +…….Analog4
B GND..Analog4
A -…….Analog4

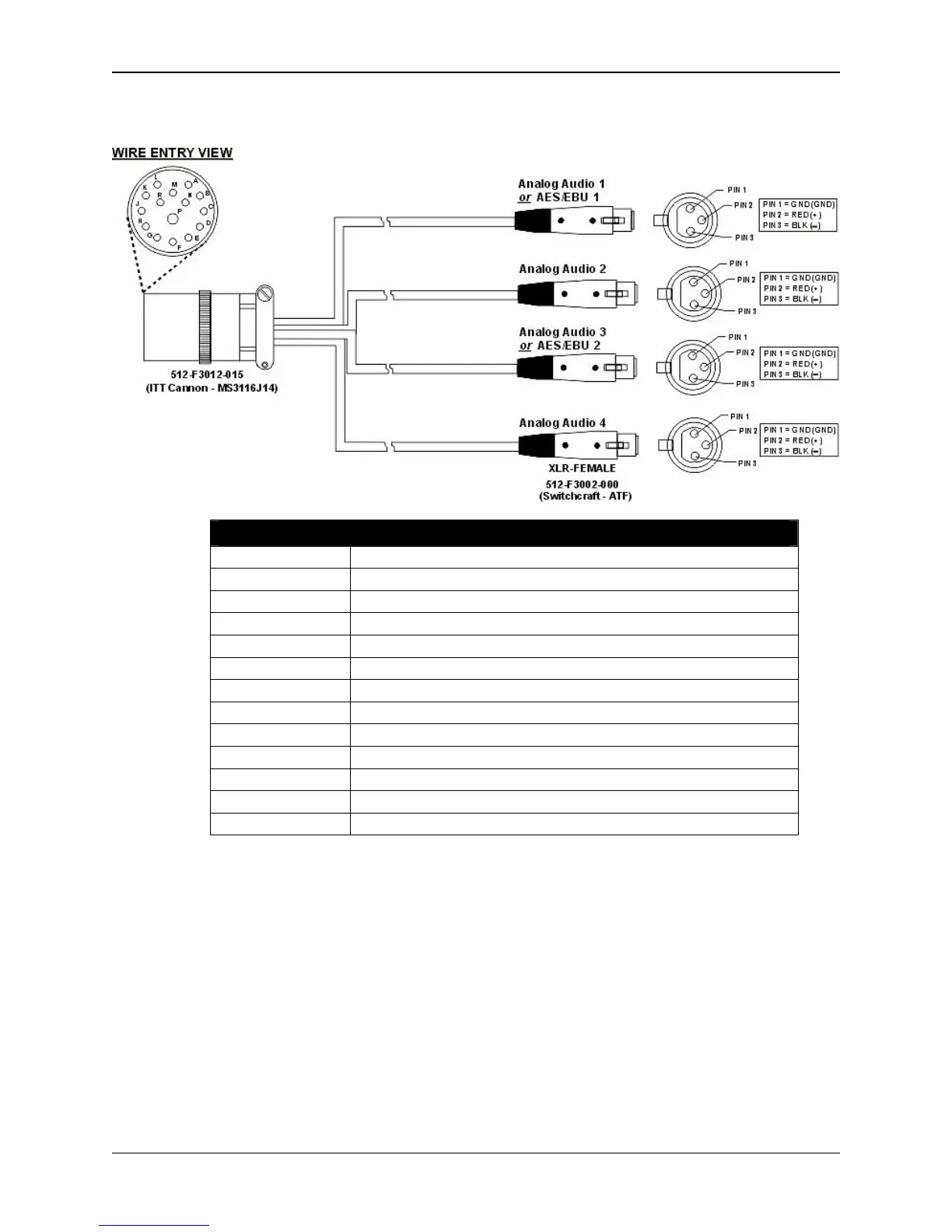

Figure 4-7 Audio Cable Construction
