SUB FRAME BASE
N4
Production Installation and Use


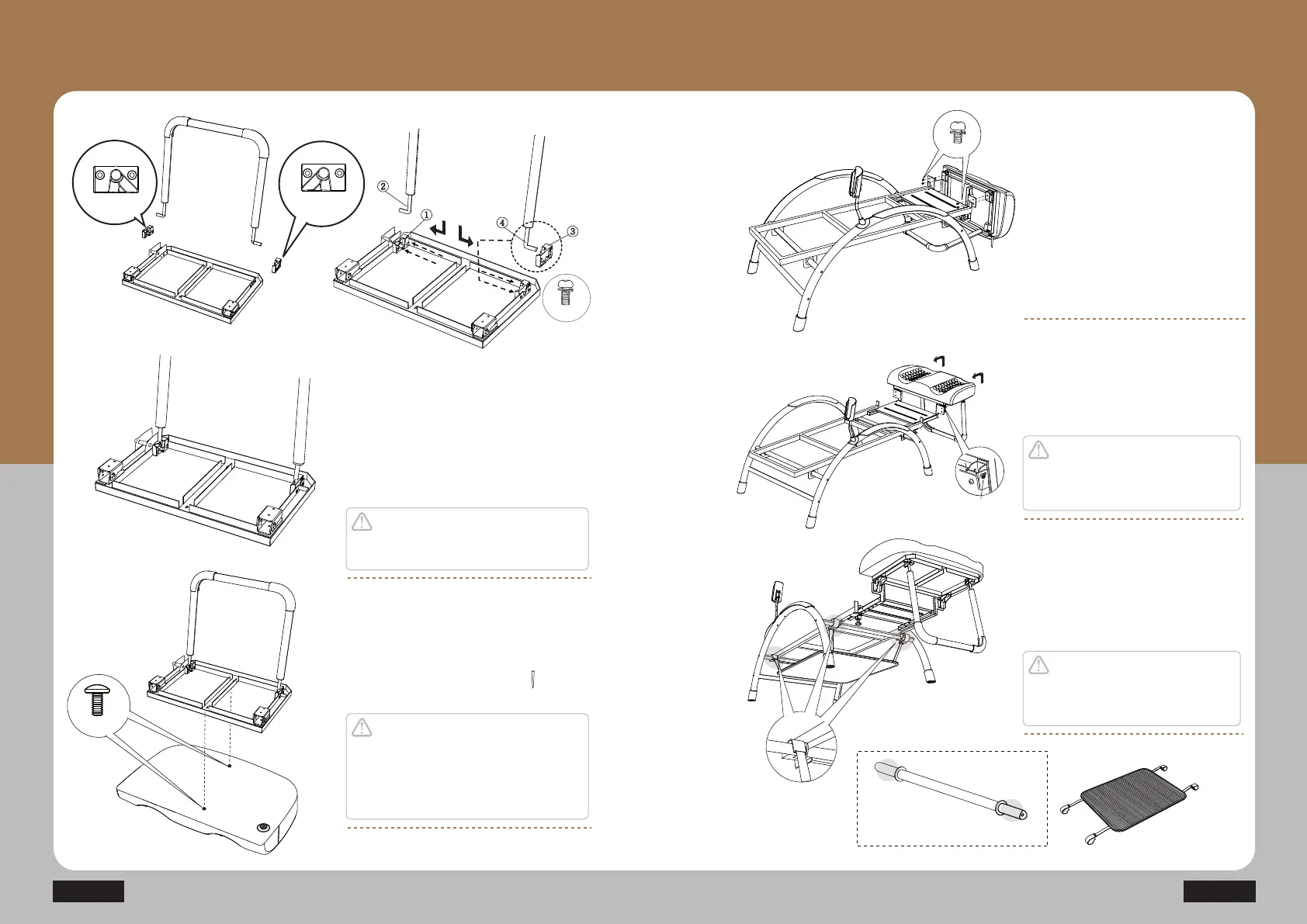

Assembling the SUB FRAME
BASE ASS'Y
① Fix the HINGE STOPPER R into the
SUB FRAME BASE with a fixing screw (B3).
② Insert the AUXILIARY SUPPORT BAR into
the HINGE STOPPER R hole.
③ Insert the HINGE STOPPER L into the
AUXILIARY SUPPORT BAR(④) and fix it using
the SUB FRAME BASE fixing screw (B3).
Check the directionality when assembling
the HINGE STOPPER L and R.
Caution
Assembling the SUB MAT and
the SUB FRAME BASE ASS'Y

Grab the SUB FRAME BASE ASS'Y
as shown in the figure and fix it into the hole
on the bottom of the SUB MAT using a fixing
screw (B5).
Place a cloth on the floor when assembling
the SUB MAT.
In the presence of foreign matter and uneven
floor, damage may occur in the Tourmanium
heating unit.
Caution
Assembling the MAIN BASE
FRAME and SUB FRAME
BASE ASS'Y
Erecting the SUB MAT
Inserting the basket into the
main body

Grab the SUB FRAME BASE ASSY and
press the button, as shown in the figure,
to erect it perpendicularly.
Lock the basket in place at the four
places inside the leg frame, as shown
in the figure.


Align the SUB FRAME BASE ASS'Y
based on the locations of the fixing
screw holes on bottom of the MAIN
BASE FRAME, as shown in the figure,
and fix it using two fixing screws (B4)
on each side.
In order to ensure safety, make sure
to fully open the AUXILIARY SUPPORT
BAR.
Caution
Lock the basket in place outside the
rings of the MAIN BASE FRAME ASS'Y
LEG SUPPORT-2.
Caution
Button
Basket
LEG SUPPORT-2
