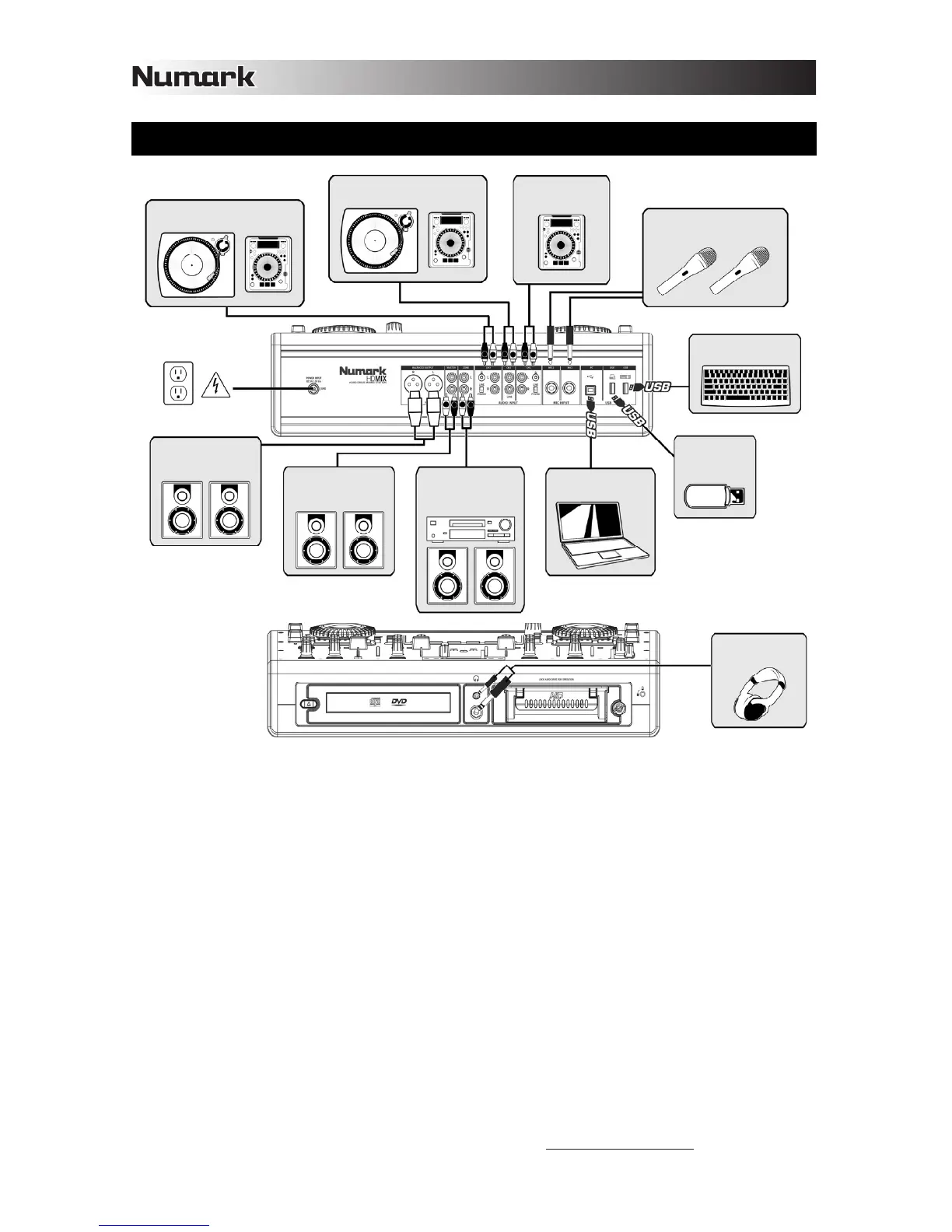

CONNECTION DIAGRAM
1. Make sure the following items were in the box:
HDMIX Professional DJ System
Hard Drive Caddy with 2 Keys
80Gb Hard Drive (removable and upgradeable) with Librarian software
USB Cable
USB Keyboard
Switching Power Supply
Quickstart Manual
Safety & Warranty Information
2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.
3. Study this connection diagram.
4. Place the HDMIX in an appropriate position for operation.
5. Make sure all devices are turned off and all faders and gain knobs are set to their lowest level.
6. Connect the stereo outputs of the HDMIX to a speaker or amplifier system.
7. Plug all devices into AC power.
8. Switch everything on in the following order:
• Input devices (turntables, CD players)
• HDMIX
• Amplifiers or output devices
9. Always reverse this operation by turning off devices in the following order:
• Amplifiers or output devices
• HDMIX
• Input devices (turntables, CD players)
More information about this product may be found at http://www.numark.com
TURNTABLE OR
CD PLAYER
TURNTABLE OR
CD PLAYER
CD PLAYER
MICROPHONES
KEYBOARD
AMP OR SPEAKER
SYSTEM
AMP OR SPEAKER
SYSTEM
CD BURNER OR
SPEAKER
MONITOR SYSTEM
LAPTOP
THUMBDRIVE
OR
HARDDRIVE
1/4” or 1/8”
HEADPHONES
