Numatic NUC244NX - Storage and Transport; Storage and Transport Mode Option 1; Storage and Transport Mode Option 2

9
2
1

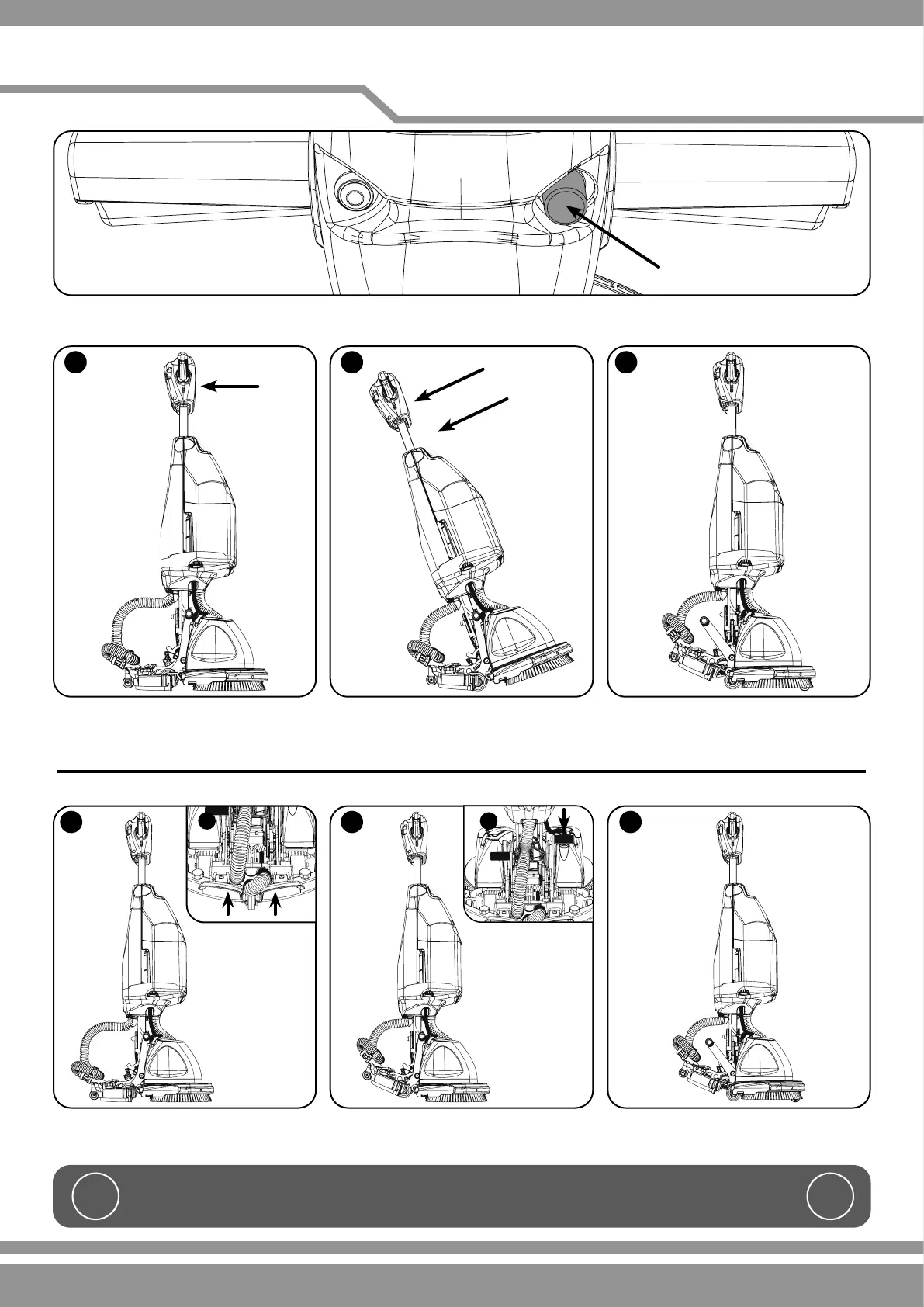

To put the machine into storage mode start with the handle locked in the upright position and the oor-tool down (1), pull the handle
backwards until the oor-tool moves up and the transport wheels click out into position the front support wheel is deployed (2).
Rest the machine back onto the transport wheels (3).
(no button or lever action is required). Note: Do not let go of the handle.
3
To raise the oor-tool use the toecap locations to the rear of the oor-tool and lift up (A). To raise the machine deck o󰀨 the ground.
Stand behind the machine, grip the handle. With your right foot push the right pedal down (B) while pulling the machine backwards until
the storage wheels click into position and the front support wheel extends.
1
3
2
A
B
Storage and Transport mode option 1
Storage and Transport mode option 2
Make sure the handle is in the upright position and locked in place, push the handle lock button and locate handle in correct position.
Handle lock
button
Storage and Transport
!!
MAKE SURE THE HANDLE IS LOCKED IN THE UPRIGHT POSITION
BEFORE LETTING GO OF THE HANDLE.
