9
Note: Ensure that no metal objects come into contact with battery terminals while the batteries are exposed.
When inserting the rst fuse you may notice a spark, this is normal.

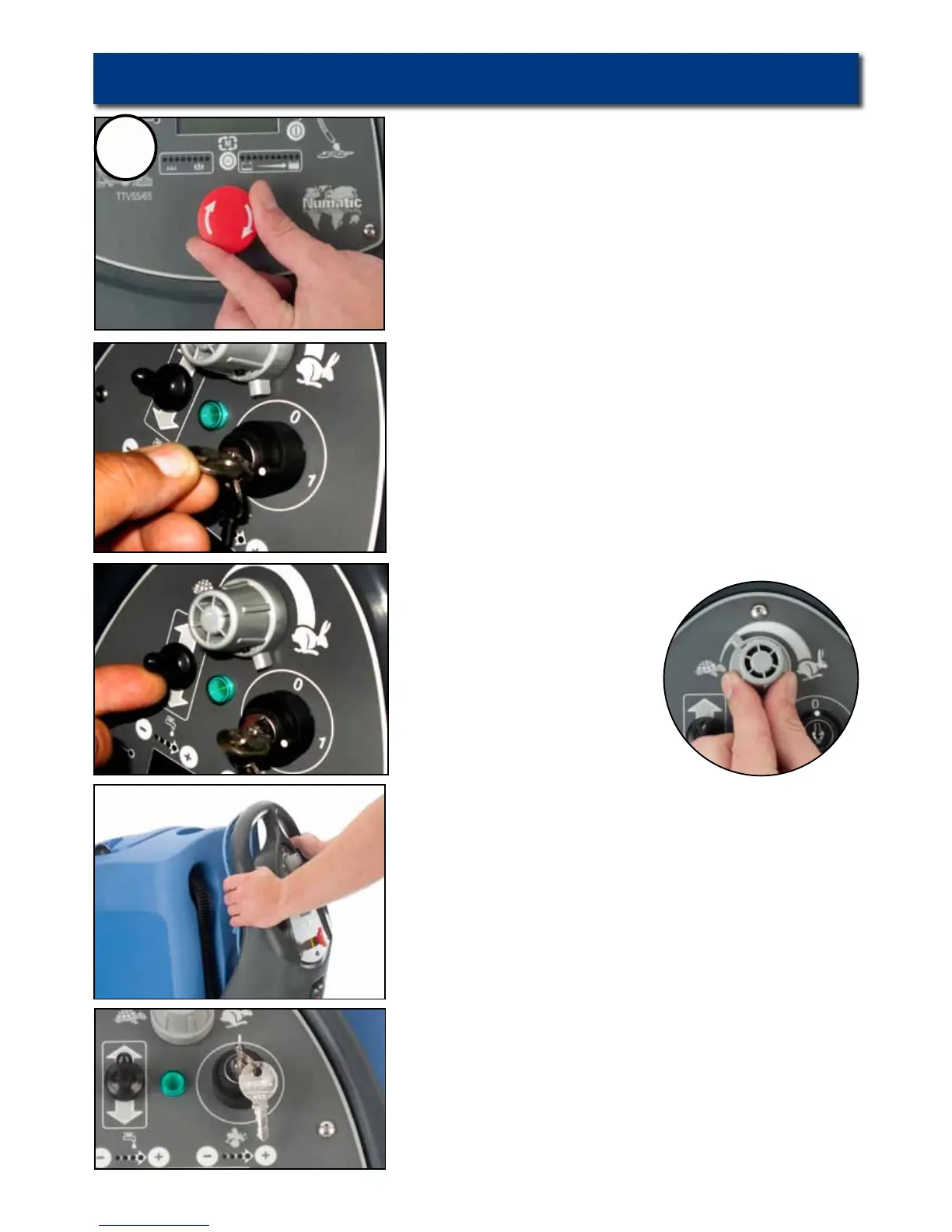

Fig.6
Fig.5
3
Fig.3
Ensure the Emergency Stop button is released (Fig 3).
Insert key into master control on/off and turn quarter-turn clockwise to
the ‘ON’ position.
Fig.4
Ensure that the forward/reverse switch is set to forward position (Fig 4).
Select the slow speed setting.
Depress control handle with both hands and slowly drive machine off
of the pallet (Fig 5), this control panel has been designed with a built in
variable speed control trigger.
When the machine is removed and in a safe position, turn key back to
the off position (Fig 6).
