ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF
BEFORE MAKING ANY ADJUSTMENTS
!
!

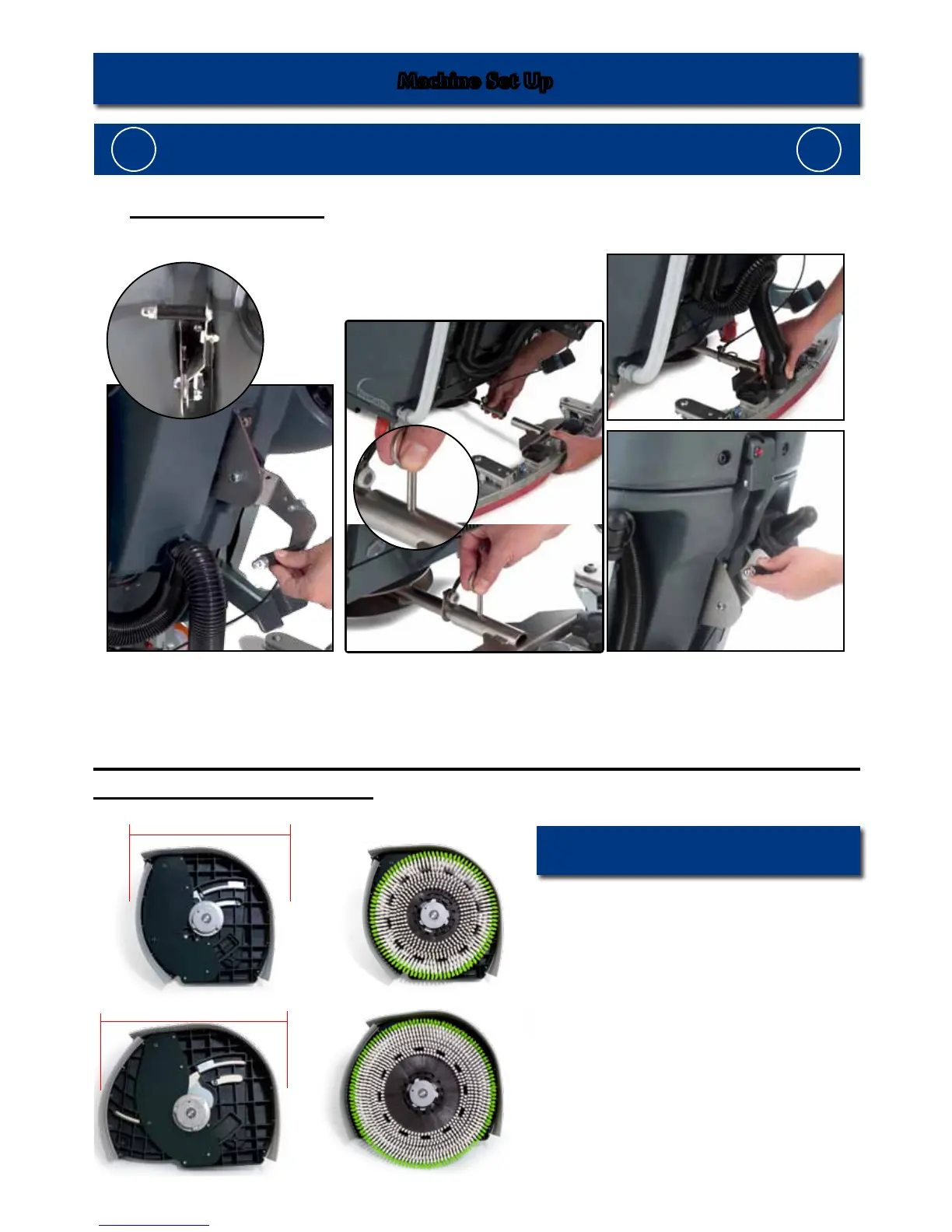

Fitting the oor-tool
Lower the oor-tool by moving the release lever to the lower position (Fig 7).
Push oor-tool onto the holder and secure with the easy-t securing pin (Fig 8).
Push oortool hose onto the oor-tool; ensure hose is pushed down fully(Fig 9).
Note: Raise oor-tool again before driving to the cleaning area (Fig 10)
!
Fig.8
Fig.10
Fig.9
Fig.7
450mm
550mm
Machine Set Up
Note: Remove the brushes before
adjusting width!
Setting the width adjustment
Adjustment of the Brush deck must take place
with the deck in the raised position.
See (page 14) on lowering and raising the brush
deck.

Numatic TTV - 4555/100T Specifications
