102

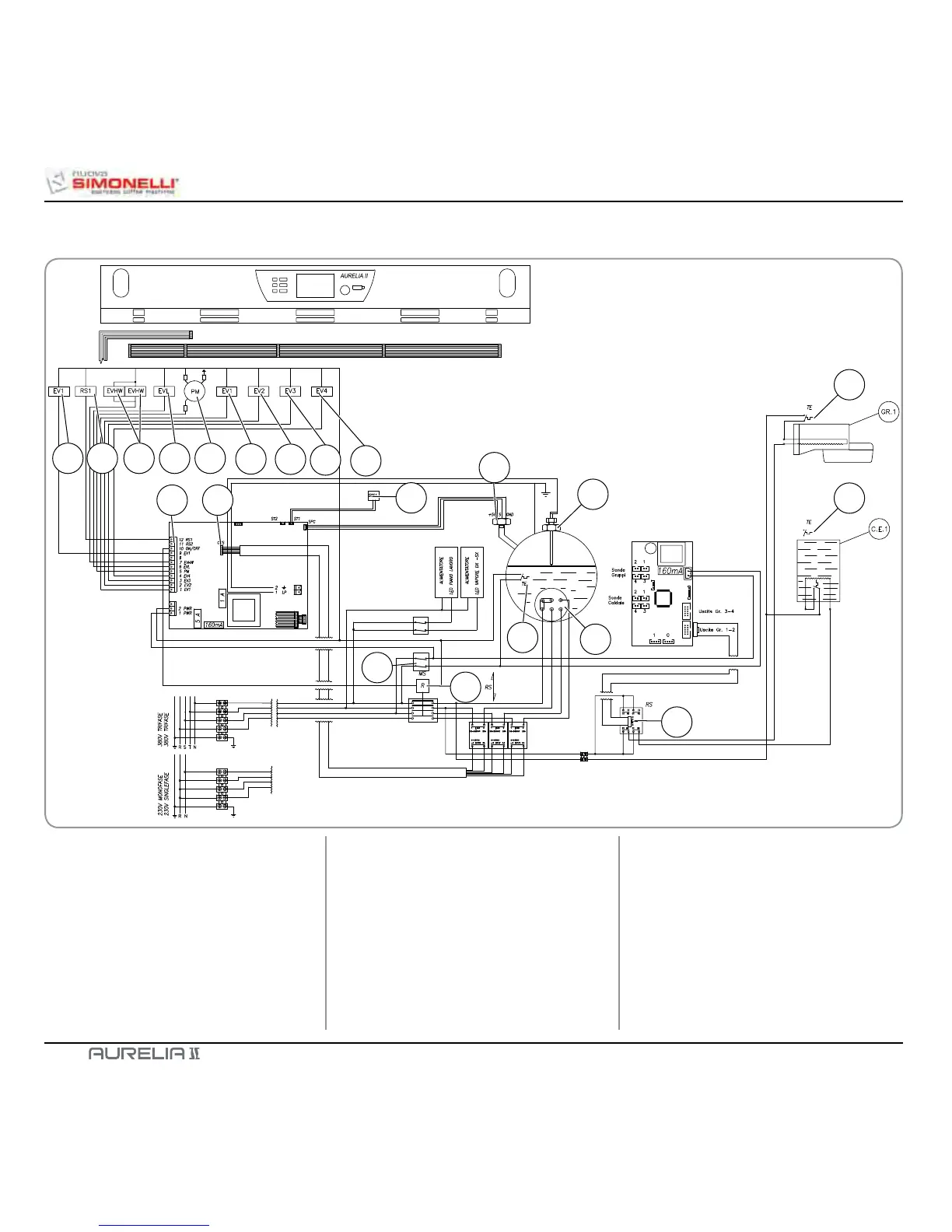

IMPIANTO ELETTRICO / ELECTRIC SYSTEM /
INSTALLATION ÉLECTRIQUE
Aurelia II Digit T3 S
LEGENDA / KEY / LÉGENDE
1 MS Interruttore / Main Switch / Interrupteur.
2 R Relè / Relay / Relais.
3 RS Relè statico / Relay / Relais statique.
4
PM Motore pompa / Pump Motor / Moteur pompe.
5 HE Resistenza boiler / Heater element /
Résistance chauffe-eau.
6
LP Sonda livello / Level Probe / Sonde niveau.
7 EV1 Elettrovalvola gruppo 1 / Solenoid
Valve unit 1 / Electrovanne groupe 1 .
8 EV2 Elettrovalvola gruppo 2 / Solenoid
Valve unit 2 / Electrovanne groupe 2.
9 TE Termostato / Thermostat / Thermostat.
10 EV3 Elettrovalvola gruppo 3 / Solenoid
Valve unit 3 / Electrovanne groupe 3.
11 EV4 Elettrovalvola gruppo 4 / Solenoid
Valve unit 4 / Electrovanne groupe 4.
12 EVHW Elettrovalvola miscelatore / Solenoid
Valve mixer / Electrovanne mélangeur.
13 EVL Elettrovalvola livello / Solenoid Valve
level / Electrovanne niveau.
14 STS1-2 Sonda temperatura scaldatazze
1-2 / Cupwarmer temperature probe 1-2 /
Sonde température chauffe-tasses 1-2.
15
SPC Sensore pressione caldaia / Sensor
pressure boiler / Capteur pression chaudière.
16 RS1 Resistenza scaldatazze 1 /
Cupwarmer heating element 1 / Résistance
chauffe-tasses 1.
17 RS2 Resistenza scaldatazze 2 /
Cupwarmer heating element 2 / Résistance
chauffe-tasses 2.
18 CRS Connettore relè statici / Connector
static relays / Connecteur relais statiques.
7
8
11
10
413
18
14
17
15
6
12167
9
9
3
2
1
5
9
