Nureva SPAN - Refine Image Alignment and Focus; Ensure Image Overlap;Gap; Adjust Projector Focus

To Next Page

To Previous Page

February 2017

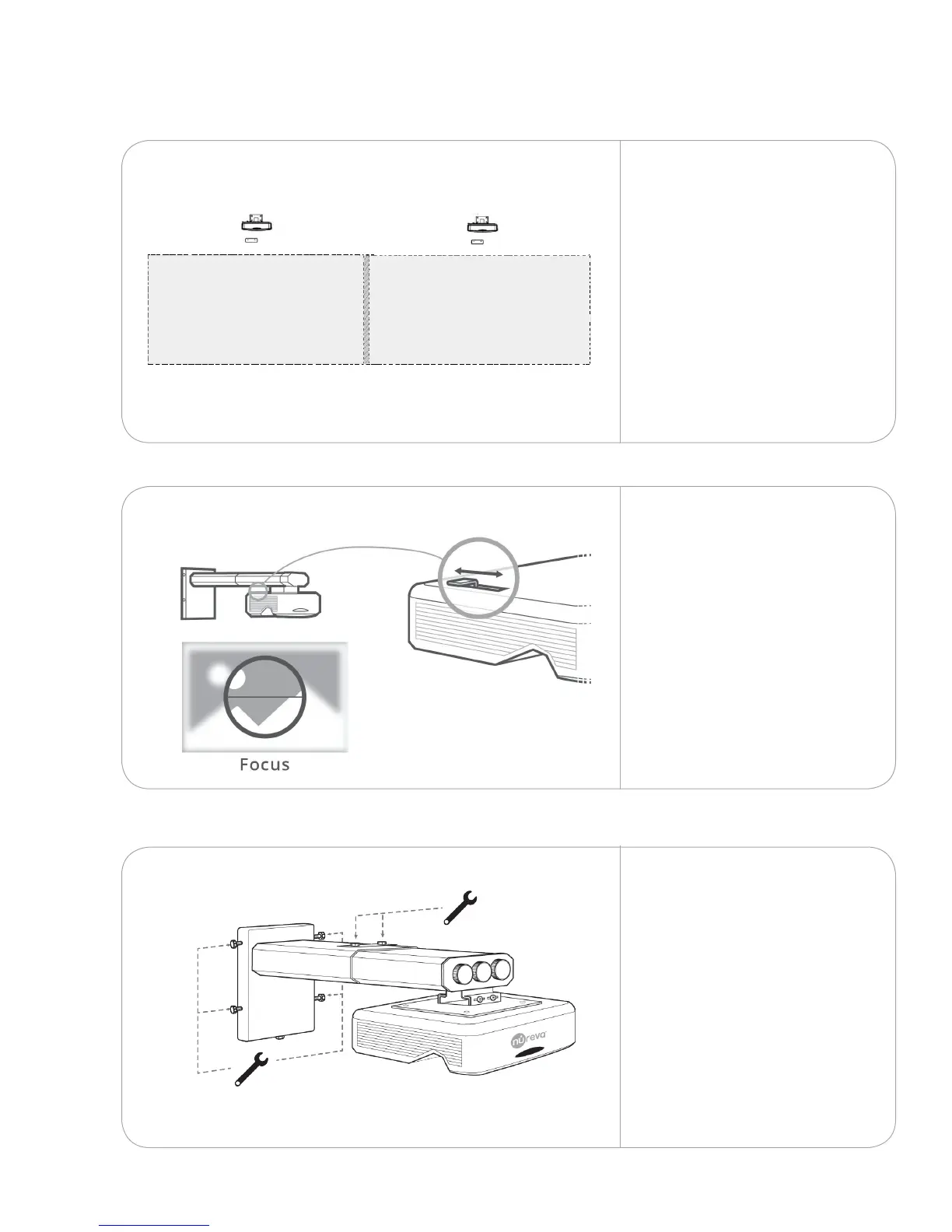

For double and triple

congurations, ensure each

projected image has at least

1" (2.5 cm) of overlap.

For corner, edge and

surround congurations,

reference your installation

drawing for the gap required

between each projected

image.

5.1.3

Use the slider on the side

of the projector to bring the

image into focus. Repeat with

any remaining projectors.

Tighten the bolts and

screws on the mount(s) and

projector(s) once you have

completed adjusting the

image(s).

5.1.4

5.1.5
