Nureva SPAN - Initial Image Adjustment; Power On System Components; Adjust Mount for Image Squareness

16
February 2017

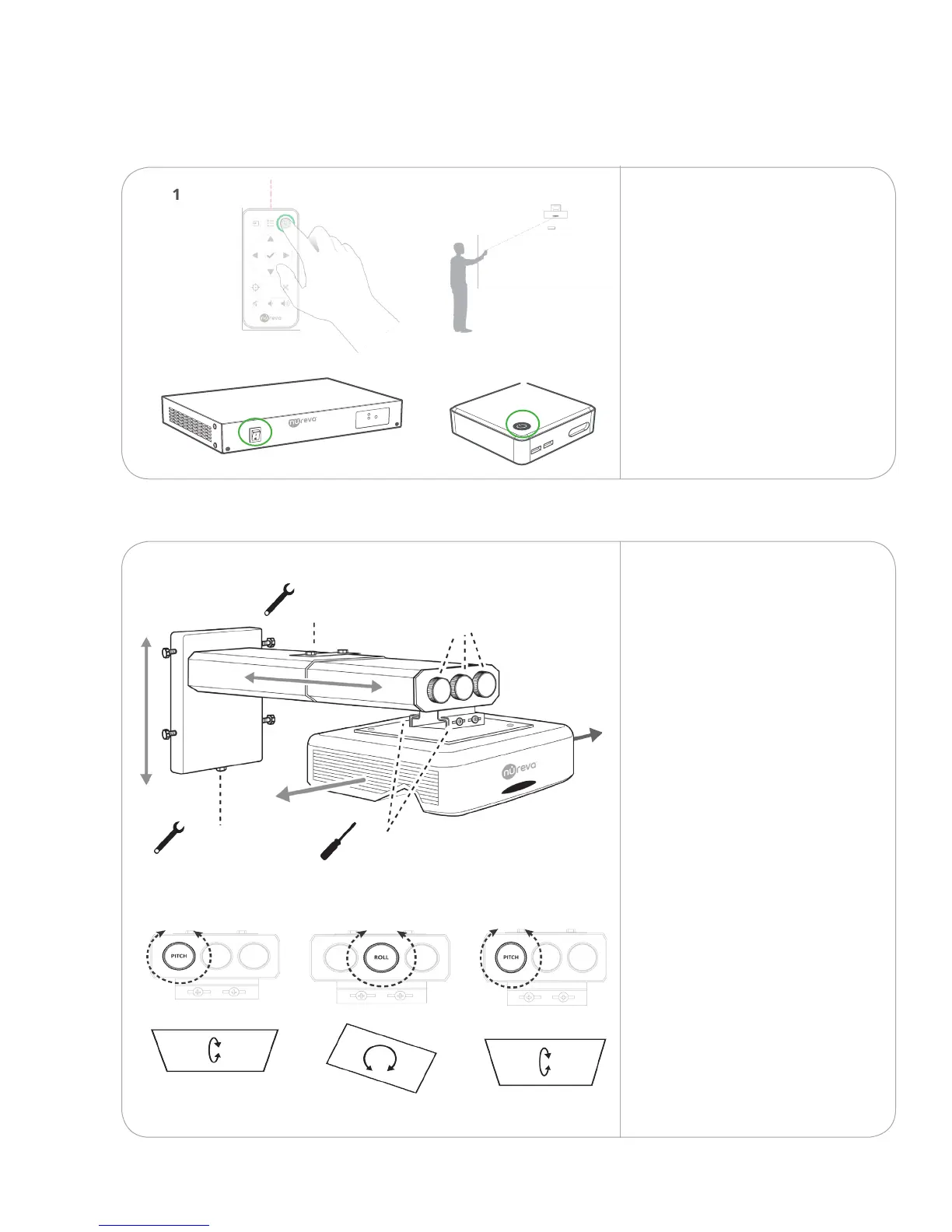

Initial adjustment of the projected image(s)
5.
Power on the NAM, projector
and PC.
5.1.1
5.1.2 Use the adjustment options
on the mount to straighten
and square o the projected
image.
Do not worry about
precision at this stage. You
will be using software to
adjust the images later on in
the process.
UP/DOWN
LEFT/RIGHT
IMAGE SIZE
ADJUSTMENT
UP/DOWNUP/DOWNUP/DOWN
LEFT/RIGHTLEFT/RIGHTLEFT/RIGHT
IMAGE SIZEIMAGE SIZEIMAGE SIZE
ADJUSTMENT
ADJUSTMENT
ADJUSTMENT
