76 26.11.07 1 689 979 924N
Pressure measuring points in trailer

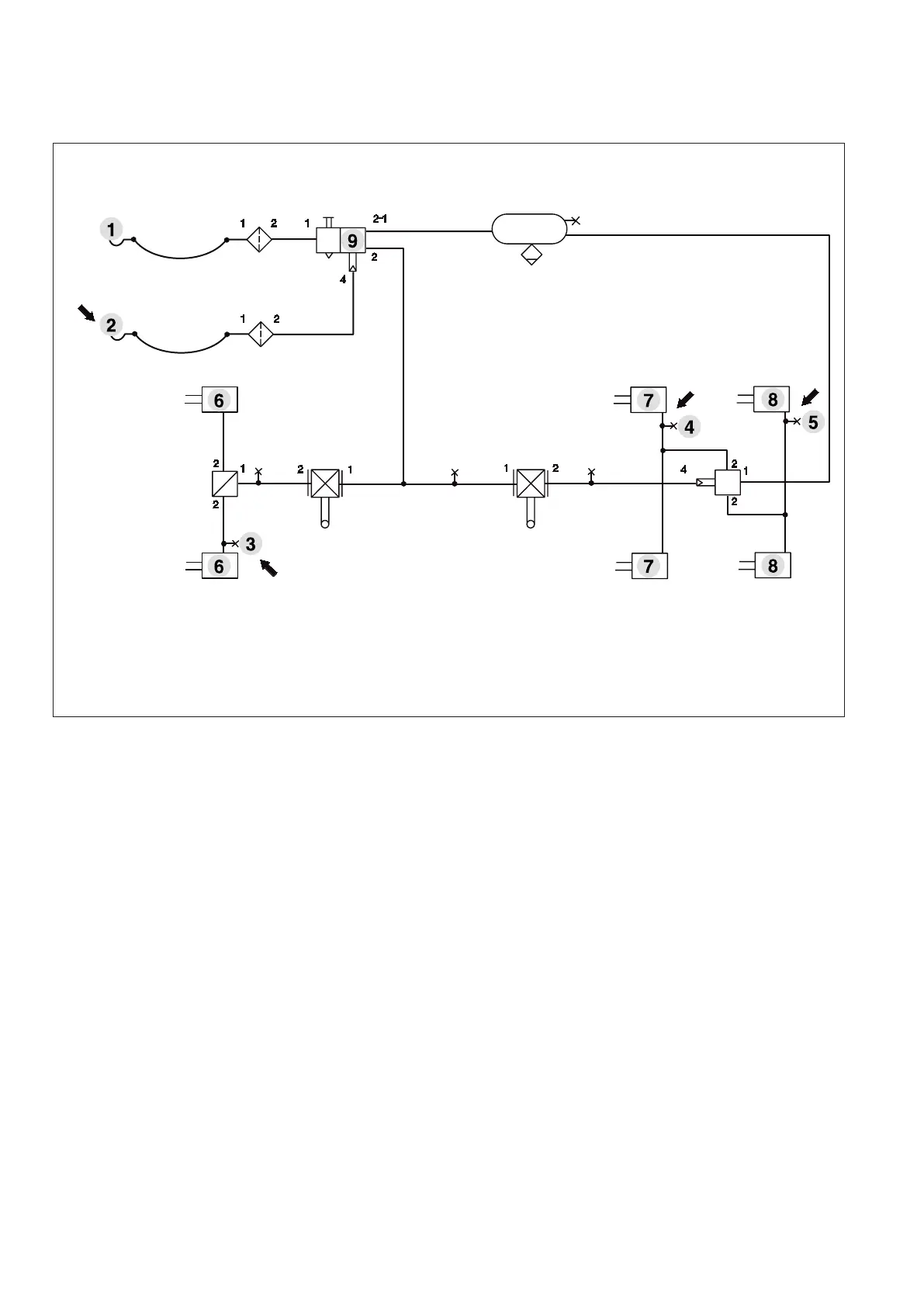

Example: Pressure measuring points (arrow) in the trailer
1. Pressure measuring point (coupling head provisions)
2. Pressure measuring point (coupling head brake pressure pm)
3. Pressure measuring point (pressure pz, axle 1)
4. Pressure measuring point (pressure pz, axle 2)
5. Pressure measuring point (pressure pz, axle 3)
6. Brake cylinder (braking force F1)
7. Brake cylinder (braking force F2)
8. Brake cylinder (braking force F3)
9. Trailer brake valve
