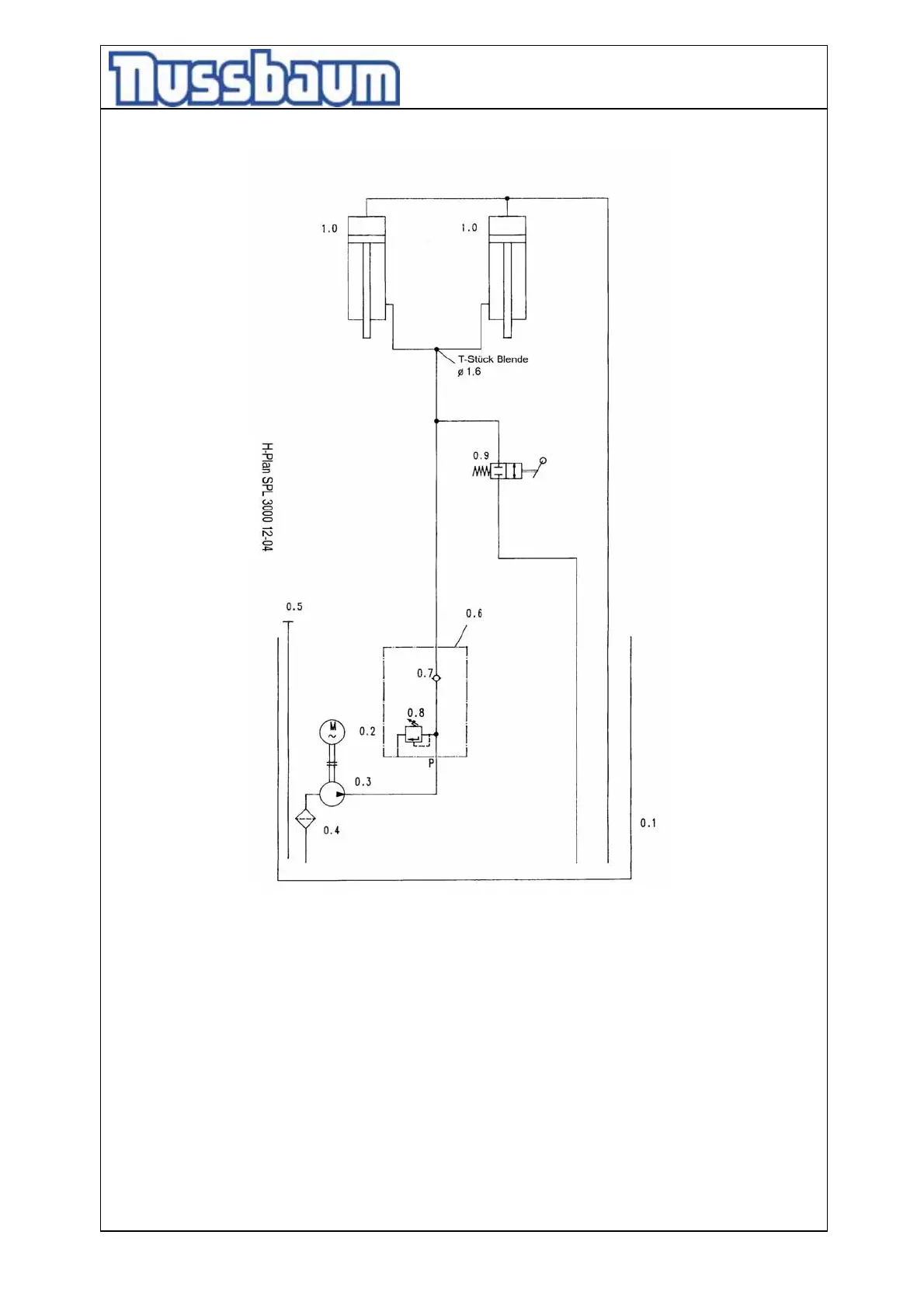

3.7 Hydraulic diagram drawing
Hydraulic parts list
0.1 Oil tank
0.2 motor 992463
0.3 gear pump 1BK7D6.7Q
0.4 Oil filter 980012
0.5 Oil level gauge 980098
0.6 Hydraulic block 230SPL01053
0.7 Holding valve 980480
0.8 Pressure relief valve 232NSTL02082
0.9 Ball valve 1BKHDN8/10L
1.0 Hydraulic cylinder
