recommend LIEBIG safety dowels or equal dowels of another manufacturer but pay-attention
their regulation, with min. 200 mm concrete-thickness and a concrete-quality of min.C20/25,
Before doweling check concrete floor with quality C20/25 if the concrete floor goes to
the top edge of the floor. In this case the dowels have to be chosen according to
picture 4. If the ground is covered with floor tiles, the dowels have to be chosen
according to picture 5.
• Check line-up of the columns and look if they are vertical. If they aren’t vertical
correct with suitable bases.
pic 3:

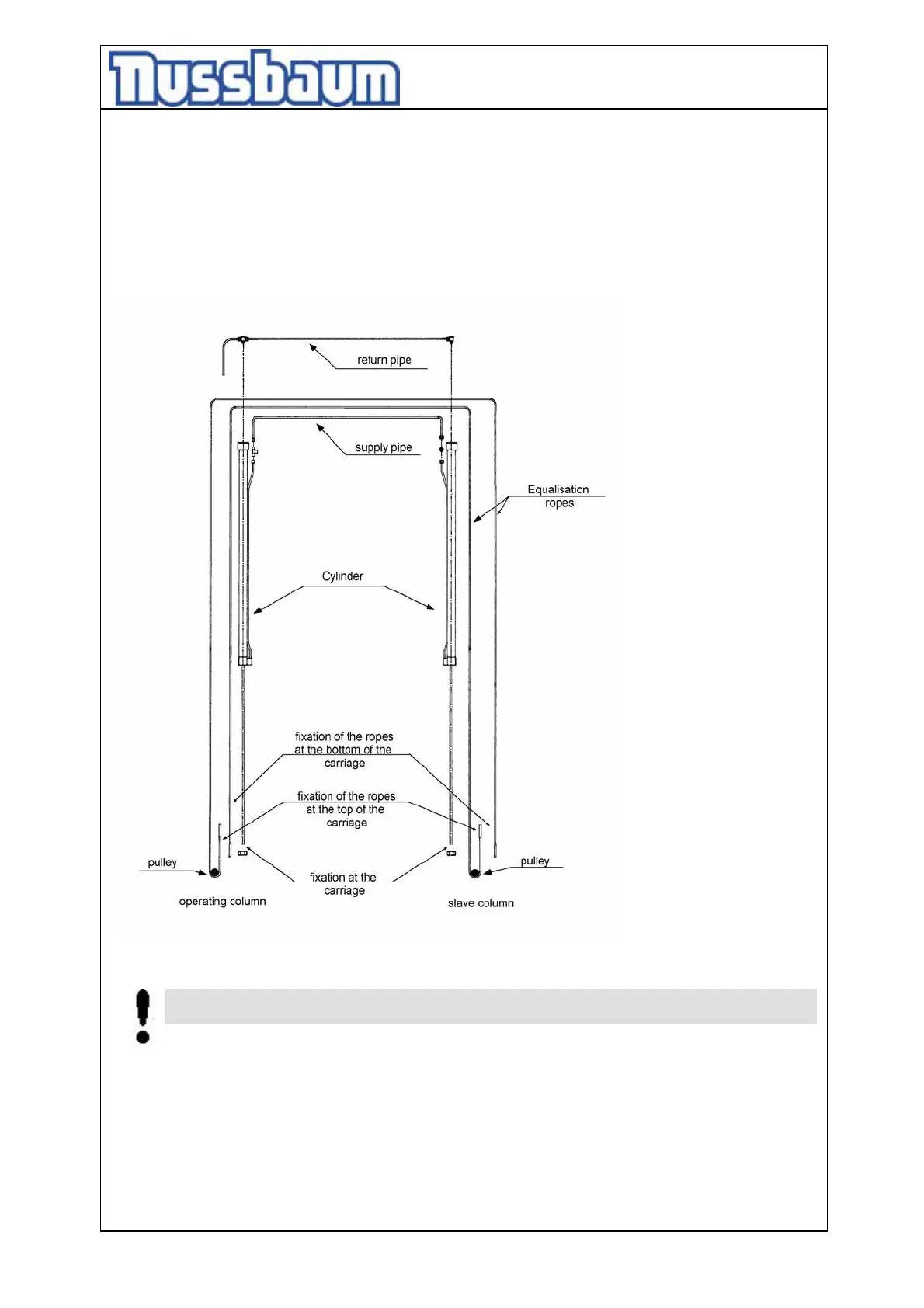

course of the ropes
Tighten the Dowels with a dynamometric key. Pay attention the regulation of the
dowel manufacturer.
Each Dowels must be tightened with a demanded torque, otherwise the normal
function of the lift cannot be guaranteed
• Connect power supply. The cable entry is at topside of operating column (standard
version).
• Fill oil-tank with oil: viscosity 32 cst, hold-up: approx. 8 litre. After the fill in, the level of the oil
must be between the lowest and the highest marking of the oil level gauge.
• Switch on the main switch.
• Press the button „Lifting“. Only one side of the lift is lifted. Raise the lift
