Operating Instruction and Documentation
SPL 4000
- 28 -
Liebig-dowels
Dowel type BM12-20/80/40
Drilling depth a 100
Min. anchorage depth b 80
Thickness of concrete c min.160
(*)
Diameter of bore d 20
Thickness of the lift-pieces e 0-40
Number of dowels 12
Starting torque 70
(*) minimum thickness of concrete by using the mentioned dowels. Otherwise,
observe the regulation of the foundation plan.
You can use equivalent dowels from another dowel manufacturer (with license) but
observe their regulation.

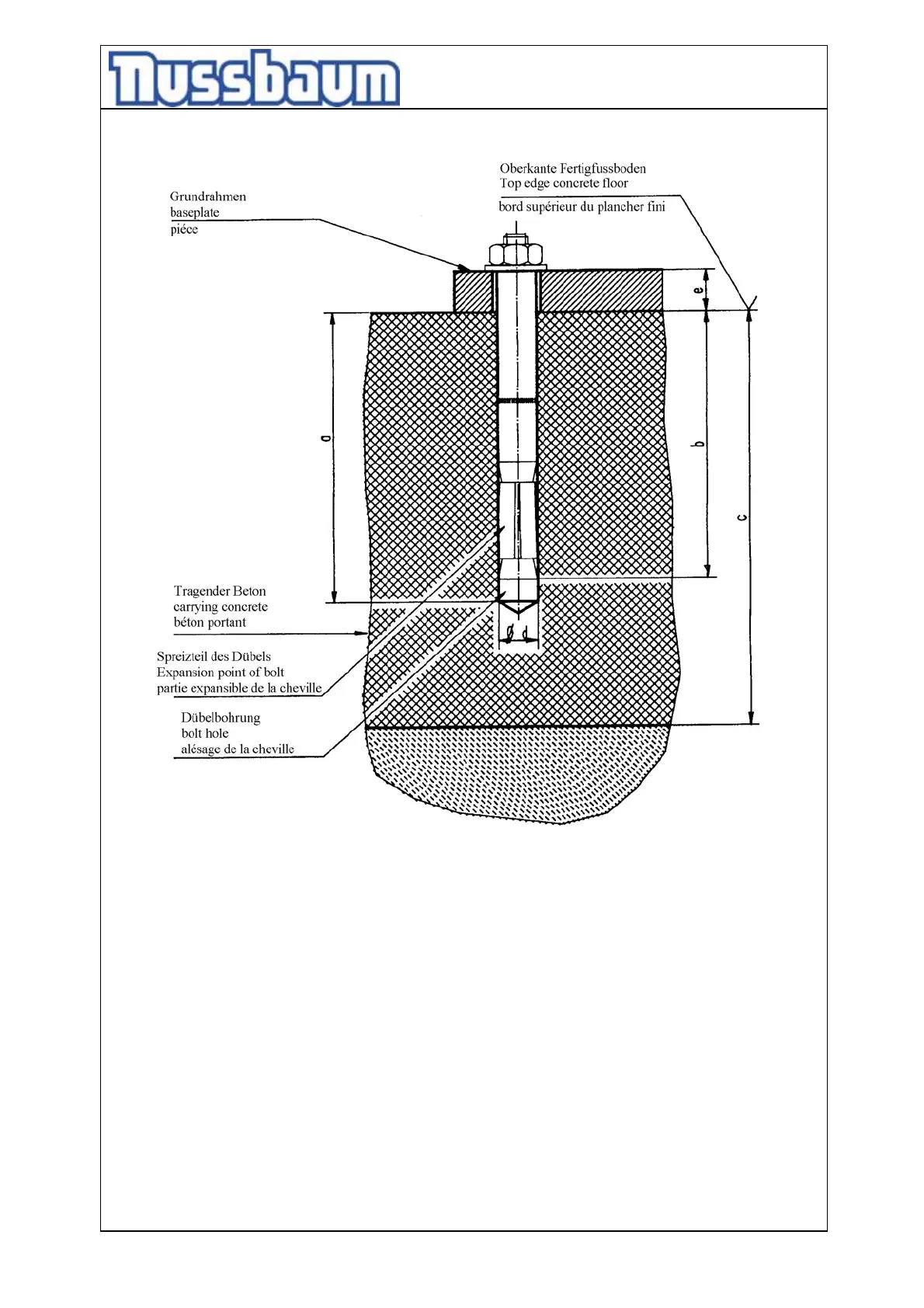

Pic 5: choice of the dowel length with floor pavement or tile surface
