TWO POST SPL10000
Nussbaum Automotive Solutions, LP | 1932 Jordache Court, Gastonia, NC 28052 | 704.864.2470 | Email: info@nussbaum-usa.com | us.nussbaumlifts.com
26

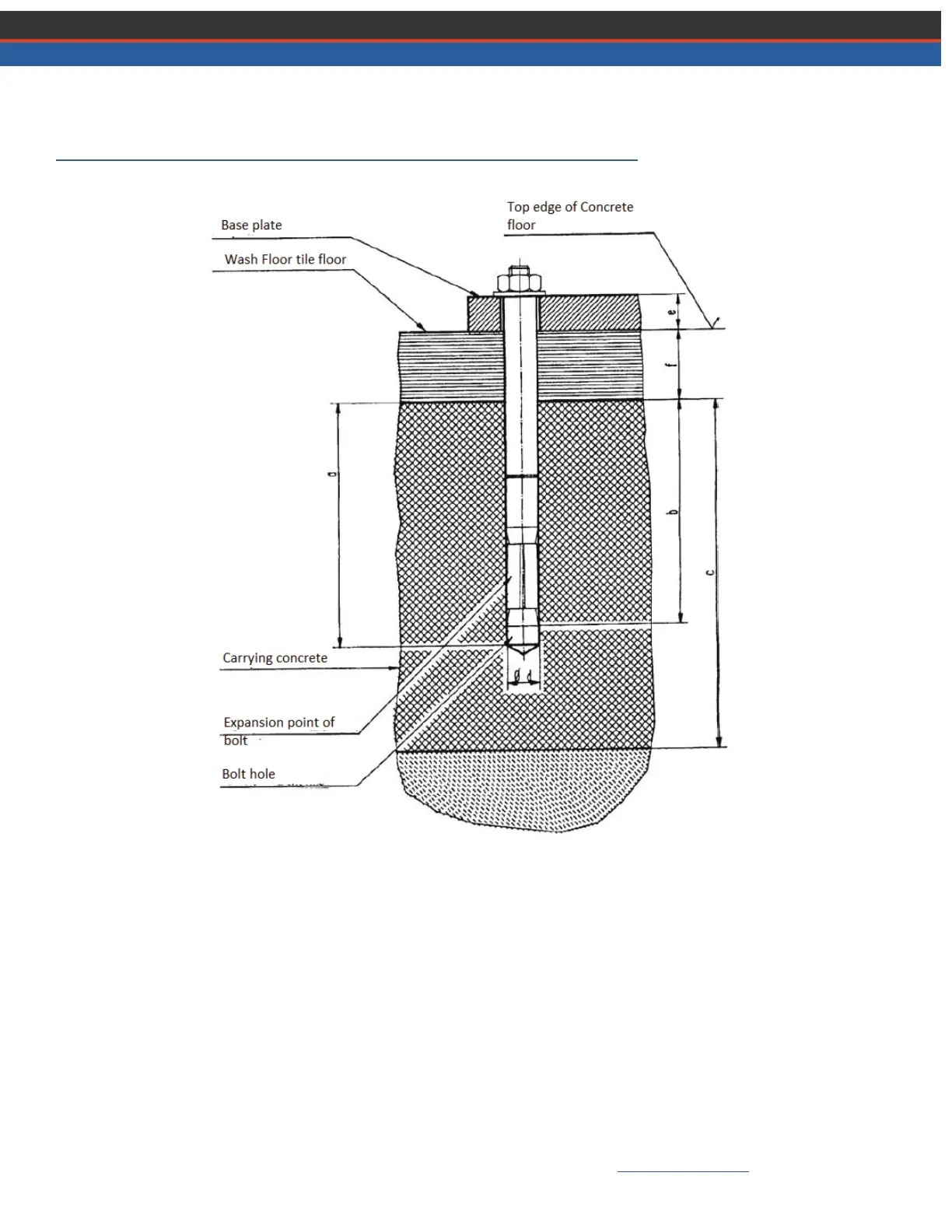

ANCHOR BOLT RECOMMENDATIONS
CHOICE OF ANCHOR BOLT LENGTH WITHOUT FLOOR PAVEMENT OR TILE SURFACE
Dowel type
B20/75
B20/100
Drilling depth
a
115
140
Min. Anchorage depth
b
85
85
Thickness of concrete
c
180
180
Diameter of bore
d
20
20
Thickness of the lift-pieces
e
0-40
40-65
Number of dowels
8(12*)
8(12*)
Starting torque
According to dowel manufacturer
*12 piece with a concrete strength of 150mm
Nussbaum Automotive Solution recommends LIEBEG safety dowels (German Anchor Bolt manufacturer) or equivalent
dowels of other manufacturers who confirm to the regulations
